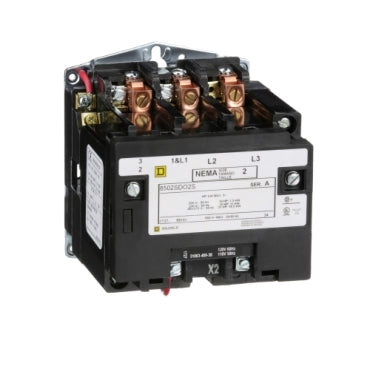

8502SDO2V08 - Square D 45A 600V 3-Pole NEMA 2 Non-Reversing Contactor, 208V AC Coil, Size 2

8502SDO2V08

8502SDO2V08 is a Square D 3-pole NEMA 2 non-reversing contactor designed for motor control applications with a 45 amp rating and 208 V AC coil voltage.This Size 2 contactor supports 3-phase operation at up to 600 V AC with a 45 A maximum load current. It features screw clamp terminals, surface mounting, and is suitable for switching heating loads, capacitors, transformers, and motors where overload protection is provided separately. The robust design ensures long mechanical life and electrical endurance.

• Manufacturer: Square D (Schneider Electric)
• Part Number: 8502SDO2V08
• Amperage: 45 A
• Voltage Rating: 600 V AC maximum
• Coil Voltage: 208 V AC, 60 Hz
• Number of Poles: 3
• Mounting Type: Surface mount
• Enclosure Type: NEMA 2
• Series/Frame: 8502S, Size 2
• Contact Type: Non-reversing
• Terminal Type: Screw clamp
• Horsepower Ratings: 10 HP at 200 V, 15 HP at 230 V, 25 HP at 460 V and 575 V AC
• Interrupt Rating (SCCR): Up to 100 kA at 480/600 V AC with appropriate fusing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This NEMA Type S Contactor includes a 208 VAC coil.

Specifications

• Part Number: 8502SDO2V08
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8502
• Type : SDO
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
• Configuration : Non-Reversing
• Aux Contacts : Auxiliary Contacts Not Included
• Coil Voltage Maximum : 208
• Full Load Amps : 45 A
• Nema Starter Size : 2
• Frequency : 60 Hz

Product Data

• UPC : 785901619932
• GTIN : 00785901619932
• Country of Origin : Mexico
• Dimensions : 5.13 in (130.30 mm) x 4.31 in (109.47 mm) x 4.94 in (125.48 mm) (Height x Width x Depth)
• Weight : 5.67
• Certification : CSA, UL E78351 CCN NLDX
