Description
8502SDO2V02S

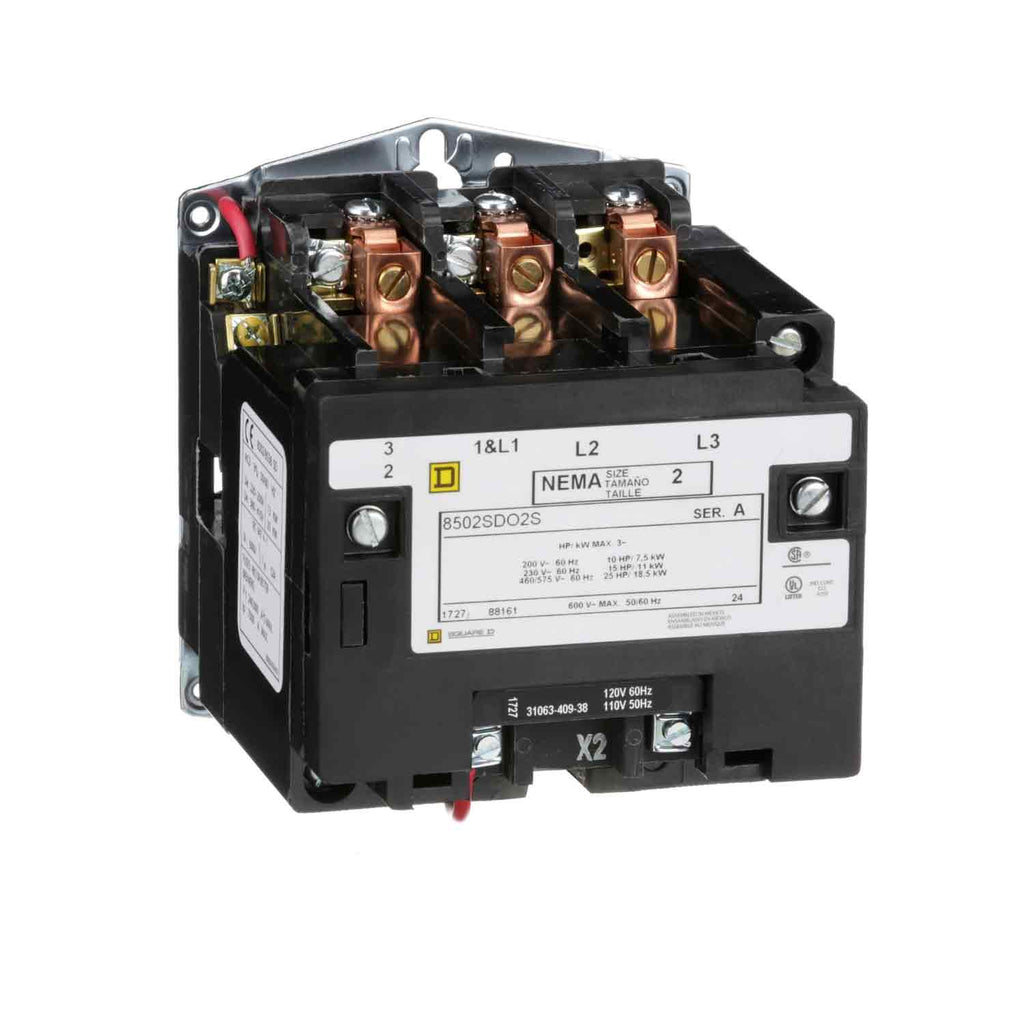

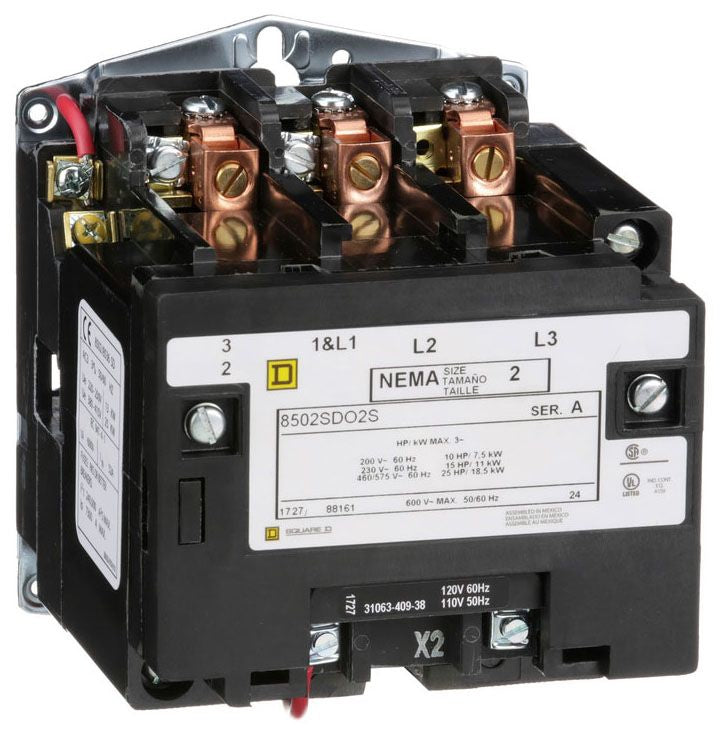

8502SDO2V02S is a Class 8502 NEMA Contactor by Schneider Electric (Square D), designed for reliable control and lighting applications. This catalog number uses Square D suffix conventions for coil voltage, enclosure features, and lighting contactor style. See the decoded suffix summary below.
- Family: Class 8502 NEMA Contactor
- Application: Industrial control, motor starting, or lighting loads
- Mounting: Panel/enclosure as configured
- Manufacturer: Schneider Electric (Square D)
- V02: 120 V 60 Hz coil
- S: Factory assembled/enclosed unit (per catalog build)
Additional Information
This NEMA Type S Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8502SDO2V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8502
- Type : SDO
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
- Configuration : Non-Reversing
- Aux Contacts : Auxiliary Contacts Not Included
- Coil Voltage Maximum : 120
- Full Load Amps : 45 A
- Coil Voltage Minimum : 110
- Nema Starter Size : 2
- Frequency : 50/60 Hz
Product Data
- UPC : 785901881612
- GTIN : 00785901881612
- Country of Origin : Mexico
- Dimensions : 5.13 in (130.30 mm) x 4.31 in (109.47 mm) x 4.94 in (125.48 mm) (Height x Width x Depth)
- Weight : 5.69
- Certification : CSA, UL E78351 CCN NLDX
