8502SCO3V02S - Square D 27A 600V 4-Pole NEMA Size 1 Non-Reversing Magnetic Contactor 110/120VAC Coil

SKU: 8502SCO3V02S-New
Condition: New
Price:
$733.99
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

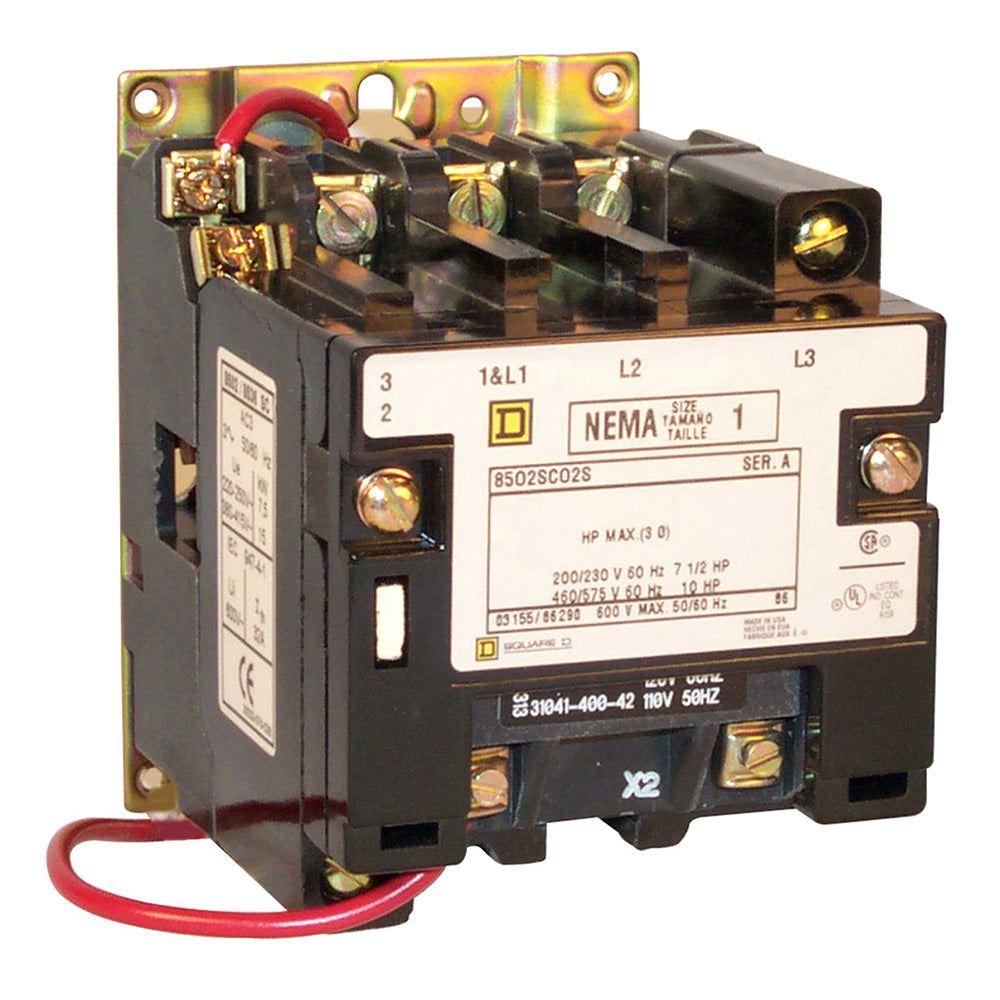

8502SCO3V02S Square D Contactor 4 pole 3 phase 600V 27A - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
8502SCO3V02S Square D Contactor 4 pole 3 phase 600V 27A - Essential Electric Supply

Description

8502SCO3V02S


8502SCO3V02S is a Square D 4-pole, 3-phase NEMA Size 1 non-reversing magnetic contactor with a 27 amp rating and 110/120 VAC coil voltage.8502SCO3V02S features a 600 V AC maximum voltage rating and supports horsepower ratings up to 10 HP at 575 V AC. It is designed for motor control applications requiring a separate control circuit and offers a high short-circuit current rating (SCCR) of up to 100 kA at 480 V AC. This open-style contactor is suitable for use with circuit breakers and various fuse types, providing reliable switching performance.
    Key Specifications
    • Amperage: 27 A
    • Voltage Rating: 600 V AC maximum
    • Coil Voltage: 110/120 VAC, 50/60 Hz
    • Number of Poles: 4
    • Phase: 3-phase
    • Mounting Type: Open style
    • Type: Non-reversing magnetic contactor
    • NEMA Size: 1
    • Horsepower Ratings: 7.5 HP at 200/230 V AC, 10 HP at 460/575 V AC
    • Short-Circuit Current Rating (SCCR): 100 kA at 480 V AC
    • Control Circuit: Separate control circuit
    • Certifications: Meets industry standards for motor control
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This NEMA Type S Contactor includes a 110 VAC coil.


Specifications

  • Part Number: 8502SCO3V02S
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Voltage : 600
  • Amperage : 27
  • Phase : 3
  • Poles : 4
  • AIC rating : 65kA@480V
  • Connection : Bolt-On
  • Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
  • Configuration : Non-Reversing
  • Aux Contacts : Auxiliary Contacts Not Included
  • Coil Voltage Maximum : 120
  • Nema Starter Size : 1
  • Protection : Solid State
  • Frequency : 50/60 Hz

Product Data

  • UPC : 785901866404
  • GTIN : 00785901866404
  • Country of Origin : Mexico
  • Dimensions : 4.34 in (110.24 mm) x 4.25 in (107.95 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
  • Weight : 4.7
