Description
8502SCO2V08

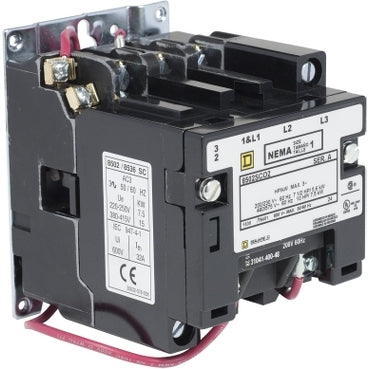

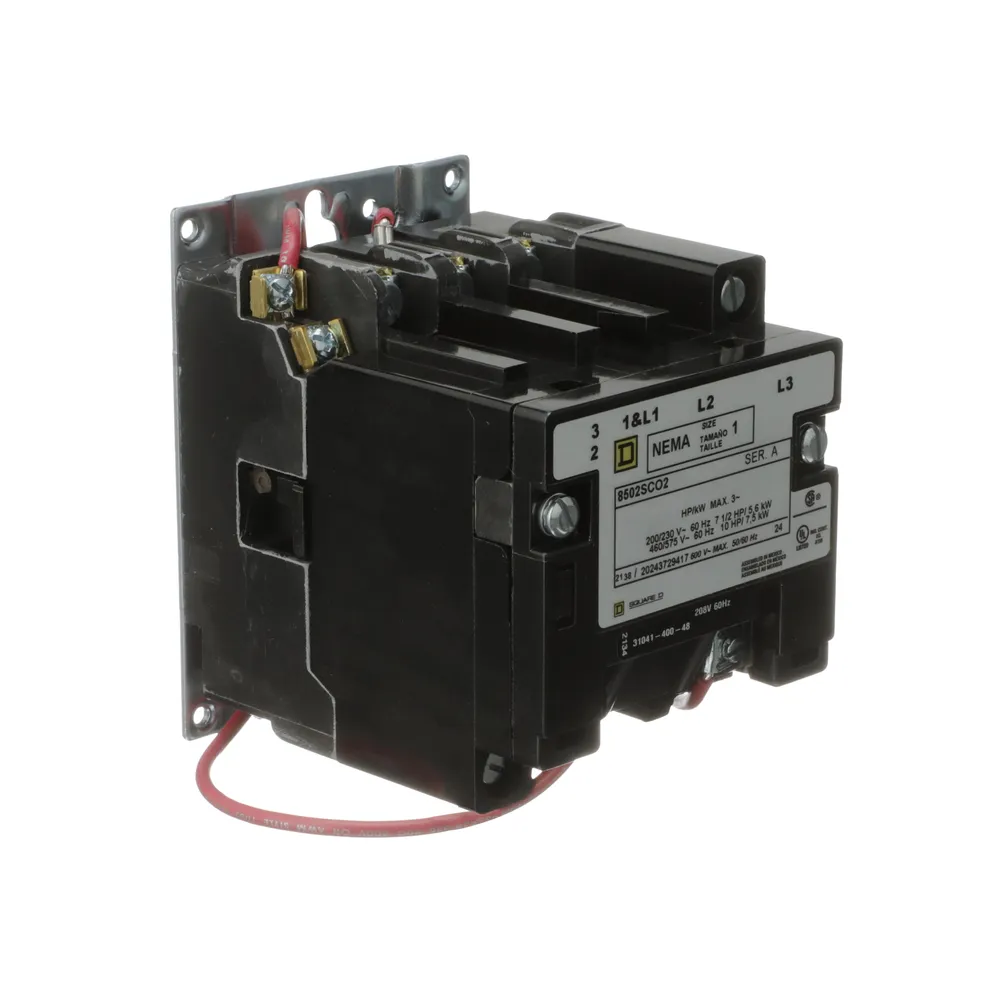

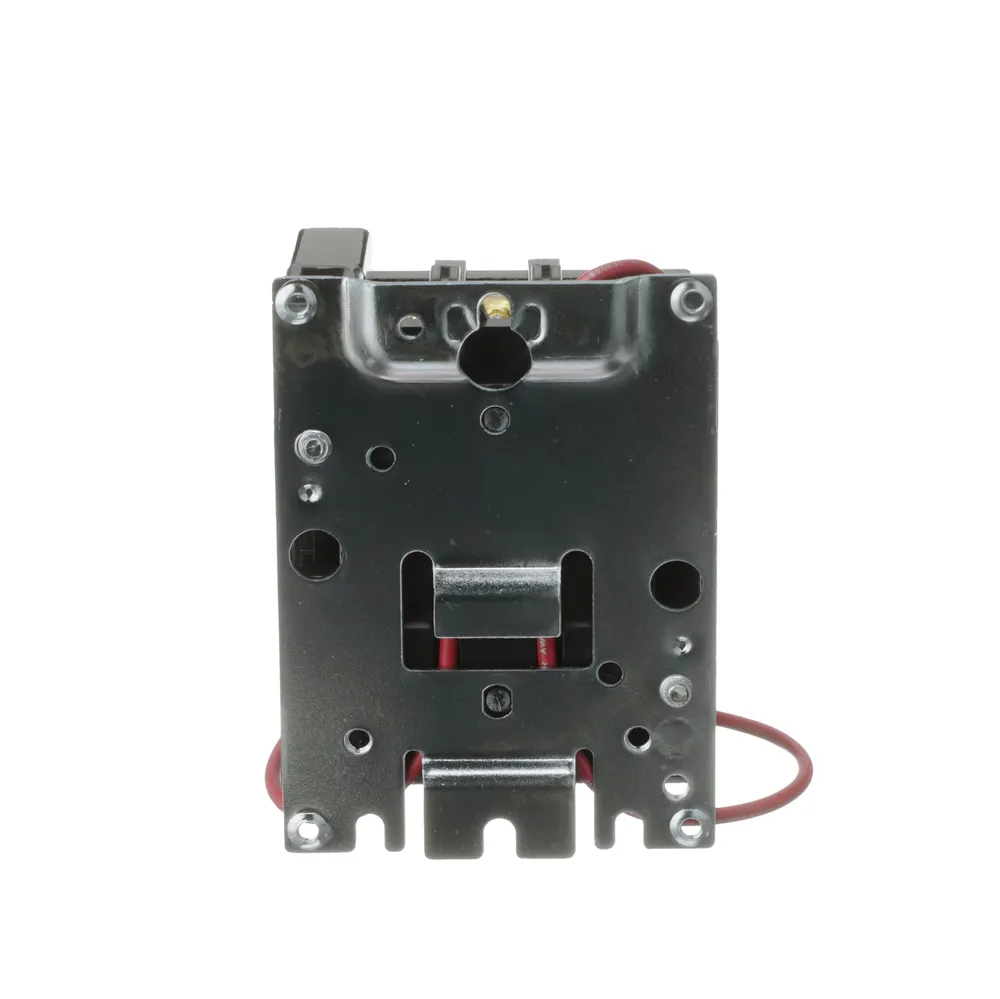

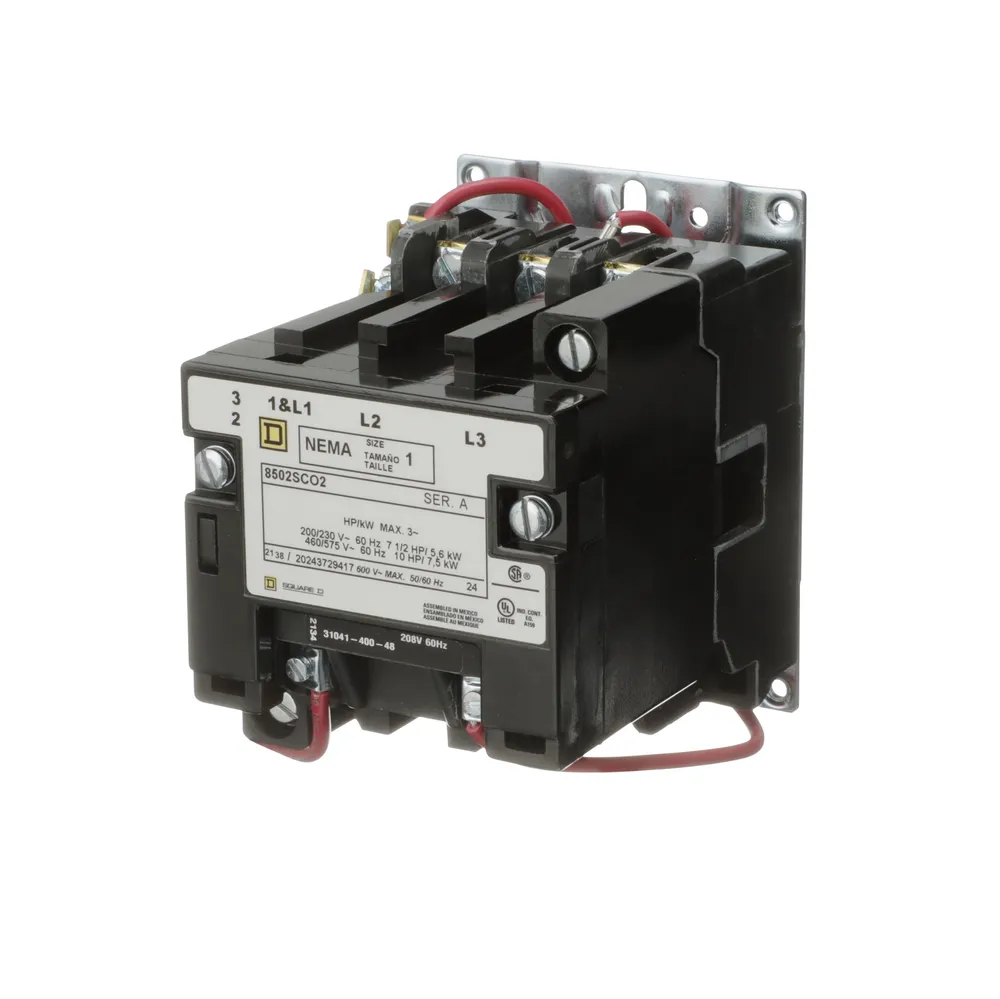

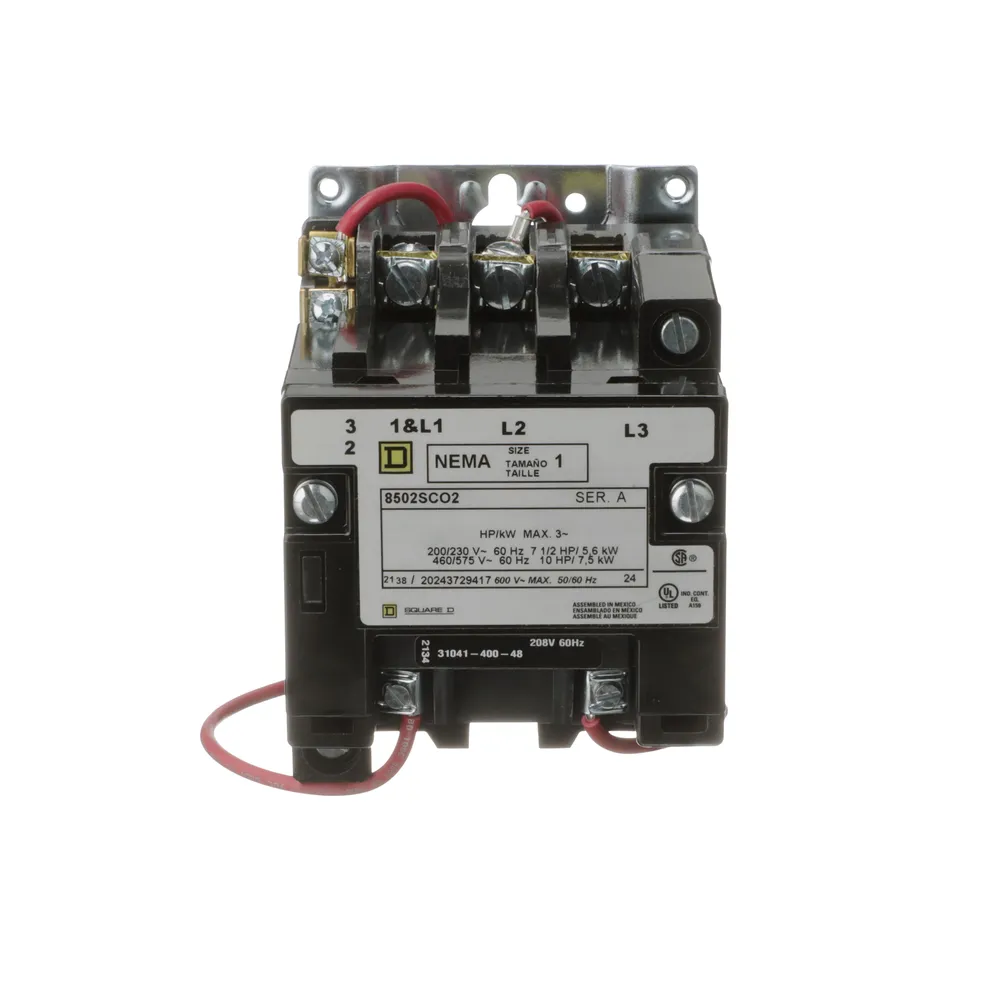

8502SCO2V08 is a Class 8502 NEMA Contactor by Schneider Electric (Square D), designed for reliable control and lighting applications. This catalog number uses Square D suffix conventions for coil voltage, enclosure features, and lighting contactor style. See the decoded suffix summary below.
- Family: Class 8502 NEMA Contactor
- Application: Industrial control, motor starting, or lighting loads
- Mounting: Panel/enclosure as configured
- Manufacturer: Schneider Electric (Square D)
- V08: 480 V 60 Hz coil
Additional Information
This NEMA Type S Contactor includes a 208 VAC coil.
Specifications
- Part Number: 8502SCO2V08
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8502
- Type : SCO
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
- Configuration : Non-Reversing
- Aux Contacts : Auxiliary Contacts Not Included
- Coil Voltage Maximum : 208
- Full Load Amps : 27 A
- Nema Starter Size : 1
- Frequency : 60 Hz
Product Data
- UPC : 785901764014
- GTIN : 00785901764014
- Country of Origin : Mexico
- Dimensions : 4.34 in (110.24 mm) x 3.22 in (81.79 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
- Weight : 3.25
- Certification : CSA, UL E78351 CCN NLDX
