Description
8502SCO2V06

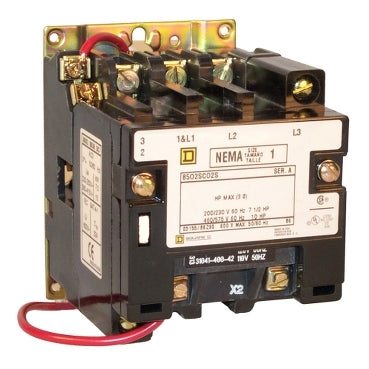

8502SCO2V06 is a NEMA Size 1, 3-pole, non-reversing contactor designed for reliable motor control and switching applications. This Square D Class 8502 contactor features a 480VAC coil and is rated for 27A continuous current, suitable for use with motors up to 10 HP at 460V and 7.5 HP at 230V. It is engineered for full-voltage starting and stopping of AC squirrel cage motors, with separate overload protection typically provided by thermal overload relays. This contactor is built for robust performance in industrial environments, supporting switching of motors, transformers, capacitors, and heating loads. The open-style design allows for easy serviceability, with replaceable contacts and coils. It is suitable for use in control circuits up to 600V AC, 50/60 Hz, and is UL Listed and CSA certified for safety and compliance.
- NEMA Size 1
- 3 Pole, Non-Reversing
- 27A Continuous Current Rating
- 480VAC Coil Voltage
- 600V AC Maximum Voltage
- 50/60 Hz Coil Frequency
- UL Listed, CSA Certified
- Open Style Mounting
- Separate Overload Protection Required
- Serviceable Contacts and Coil
- Used for Motor, Heating, Capacitor, Transformer Loads
- Interrupt Rating up to 100kA
Additional Information
This NEMA Type S Contactor includes a 440 VAC coil.
Specifications
- Part Number: 8502SCO2V06
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8502
- Type : SCO
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
- Configuration : Non-Reversing
- Aux Contacts : Auxiliary Contacts Not Included
- Coil Voltage Maximum : 480
- Full Load Amps : 27 A
- Coil Voltage Minimum : 440
- Nema Starter Size : 1
- Frequency : 50/60 Hz
Product Data
- UPC : 78590186903
- GTIN : 00785901869030
- Country of Origin : Mexico
- Dimensions : 4.34 in (110.24 mm) x 3.22 in (81.79 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
- Weight : 3.159
- Certification : CSA, UL E78351 CCN NLDX
