8502SBO2V03 - Square D 18A 600VAC 3 Pole NEMA Size 0 Non-Reversing Contactor, 220/240VAC Coil, Open Enclosure, UL/CSA Certified

8502SBO2V03

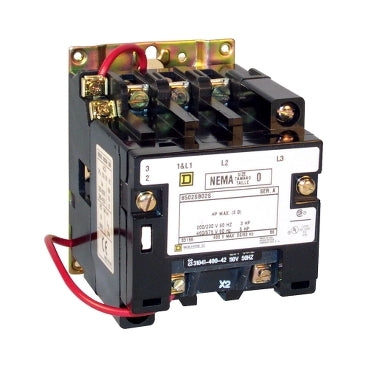

8502SBO2V03 is a Square D NEMA Size 0, 3 pole, non-reversing contactor designed for reliable motor control in industrial applications.

This full voltage, non-reversing contactor features an open enclosure, common control circuit, and is suitable for construction, infrastructure, oil and gas, and transportation uses. It is UL and CSA certified for safety and compliance.

Key Specifications
• Amperage: 18A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Panel
• Interrupt Rating: 100 kA SCCR
• Series/Frame: 8502, NEMA Size 0
• Trip Unit: Not applicable (contactor, not circuit breaker)
• Certifications: UL, CSA
• Coil Voltage: 220VAC 50Hz / 240VAC 60Hz
• Enclosure: Open
• Connection Type: Screw clamp
• Application: Motor control, non-reversing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This NEMA Type S Contactor includes a 220 VAC coil.

Specifications

• Part Number: 8502SBO2V03
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8502
• Type : SBO
• Voltage : 6
• Amperage : 18
• Phase : 3
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
• Configuration : Non-Reversing
• Aux Contacts : Auxiliary Contacts Not Included
• Coil Voltage Maximum : 240
• Full Load Amps : 18 A
• Coil Voltage Minimum : 220
• Nema Starter Size : 0
• Frequency : 50/60 Hz

Product Data

• UPC : 785901761600
• Country of Origin : Mexico
• Dimensions : 4.34 in (110.24 mm) x 3.22 in (81.79 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 3.25
• Certification : CSA, UL E78351 CCN NLDX
