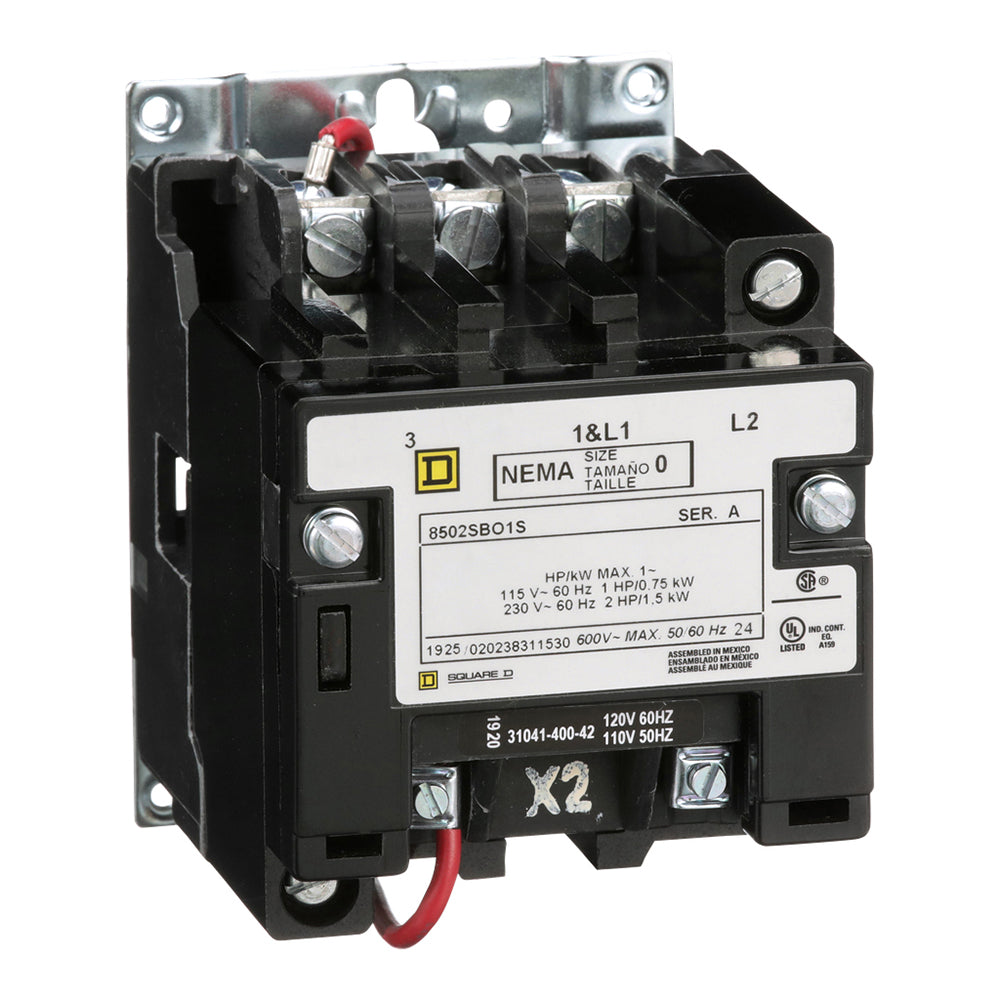

8502SBO1V02S - Square D 18A 2-Pole NEMA Type S Non-Reversing Contactor 120VAC Coil Open Style

8502SBO1V02S

8502SBO1V02S is a Square D NEMA Type S non-reversing magnetic contactor designed for motor control applications.This 2-pole contactor features an 18 ampere rating with a 120 VAC coil voltage and supports up to 2 HP at 230 VAC single phase. It is an open style device suitable for switching heating loads, capacitors, transformers, and motors where overload protection is provided separately. The contactor has a maximum short-circuit current rating (SCCR) of 100 kA per UL508A when protected by appropriate breakers or fuses. It is UL listed and CSA certified.

Key Specifications
• Amperage: 18 A
• Voltage Rating: 600 VAC max
• Coil Voltage: 110/120 VAC, 50/60 Hz
• Poles: 2
• Horsepower Rating: 1 HP @ 115 VAC, 2 HP @ 230 VAC (single phase)
• Mounting Type: Open style
• Interrupt Rating: 100 kA SCCR (with proper protection)
• Series/Frame: Type S, Size 0
• Trip Unit: Non-reversing magnetic
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This NEMA Type S Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8502SBO1V02S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 18
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
• Configuration : Non-Reversing
• Aux Contacts : Auxiliary Contacts Not Included
• Coil Voltage Maximum : 120
• Nema Starter Size : 0
• Protection : Solid State
• Frequency : 50/60 Hz

Product Data

• UPC : 785901761518
• GTIN : 785901761518
• Country of Origin : Mexico
• Dimensions : 4.34 in (110.24 mm) x 3.22 in (81.79 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 3.179 lb
• Certification : CSA, UL E78351 CCN NLDX
