8502SBG2V02S - Square D 18A 3-Pole NEMA 1 Contactor 110/120VAC Coil 5HP 3-Phase Size 0 Non-Reversing

Save $57.03
SKU: 8502SBG2V02S-New
Condition: New
Price:
$388.97 $446.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

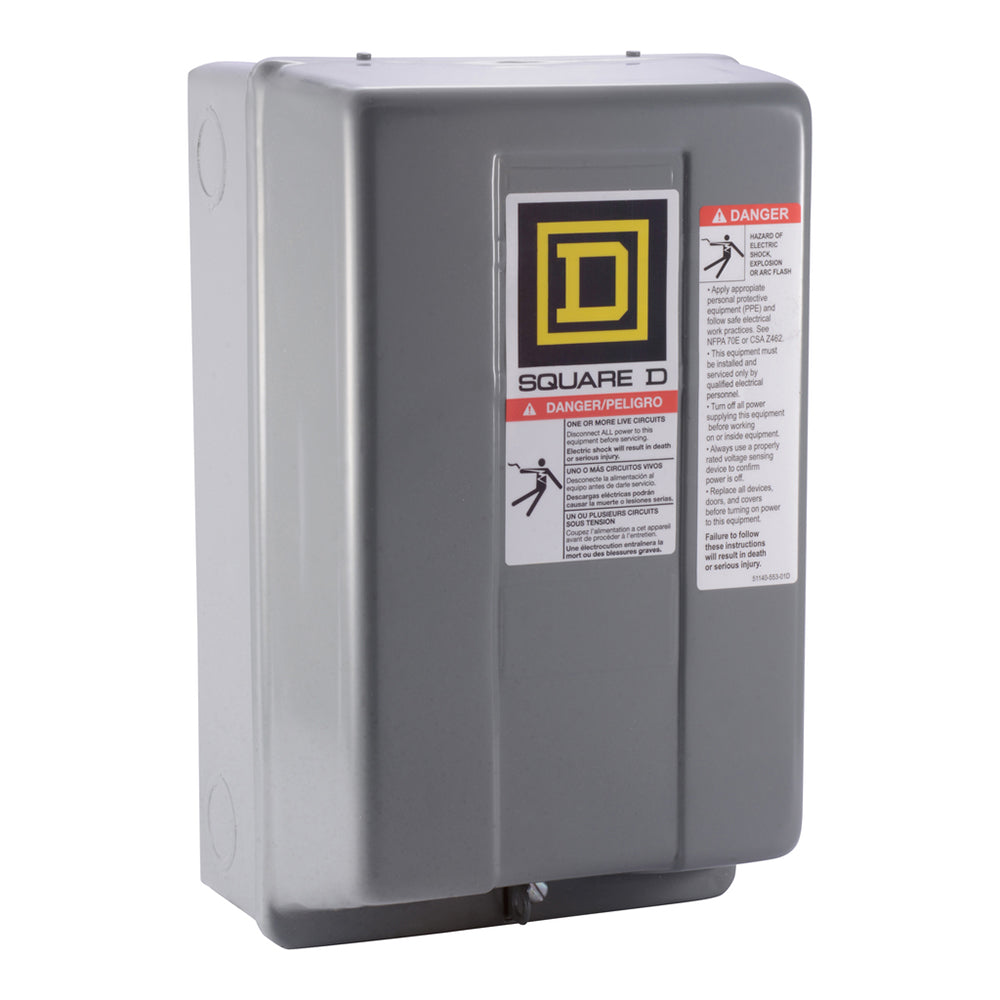

8502SBG2V02S Square D Contactor 3 pole 3 phase 600V 18A 110V coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
8502SBG2V02S Square D Contactor 3 pole 3 phase 600V 18A 110V coil - Essential Electric Supply

Description

8502SBG2V02S


8502SBG2V02S is a Square D 3-pole NEMA Size 0 contactor with an 18 ampere rating and 110/120 VAC coil designed for motor control applications.This non-reversing Type S contactor supports up to 5 HP at 575 VAC for three-phase motors. It features a NEMA 1 general purpose enclosure, screw clamp terminals, and is rated for 50/60 Hz operation. The contactor is built for reliable switching of heating loads, capacitors, transformers, and motors where overload protection is provided separately. It has a robust design with a painted sheet steel enclosure and operates within 0 to 40 degrees Celsius.
    Key Specifications
    • Amperage: 18 A
    • Voltage: 110/120 VAC coil
    • Poles: 3
    • Mounting Type: NEMA 1 enclosure
    • Interrupt Rating: Up to 100 kA
    • Series/Frame: 8502 Size 0
    • Trip Unit: Non-reversing
    • Horsepower Rating: 5 HP at 575 VAC (3-phase)
    • Frequency: 50/60 Hz
    • Terminal Type: Screw clamp
    • Operating Temperature: 0 to 40 °C
    • Material: Painted sheet steel
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Additional Information

    This NEMA Type S Contactor includes a 110 VAC coil.


    Specifications

    • Part Number: 8502SBG2V02S
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Motor Control
    • Item Subcategory : Contactor
    • Voltage : 600
    • Amperage : 18
    • Phase : 3
    • Poles : 3
    • AIC rating : 65kA@480V
    • Connection : Bolt-On
    • Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
    • Configuration : Non-Reversing
    • Aux Contacts : Auxiliary Contacts Not Included
    • Coil Voltage Maximum : 120
    • Coil Voltage Minimum : 110
    • Nema Starter Size : 0
    • Protection : Solid State
    • Frequency : 50/60 Hz

    Product Data

    • UPC : 785901866220
    • GTIN : 00785901866220
    • Country of Origin : Mexico
    • Dimensions : 10 in (254 mm) x 6.0 in (152 mm) x 5.3 in (134 mm) (Height x Width x Depth)
    • Weight : 6.561 lb
    • Certification : CSA, UL E78351 CCN NLDX
