Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
8502SAG12V02S

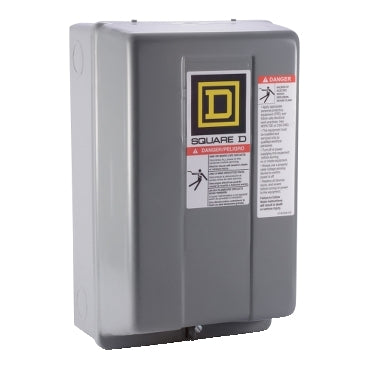

8502SAG12V02S is a Square D NEMA 1 full voltage non-reversing magnetic contactor designed for reliable motor control applications. This 3-pole contactor features a 120VAC coil and is rated for 9 amps, making it suitable for a variety of industrial uses. Engineered for durability and safety, the 8502SAG12V02S offers a robust design with a NEMA 1 enclosure for indoor protection. It is ideal for surface mounting and supports up to 1.5 HP at 200/230 VAC and 2 HP at 460/575 VAC. The contactor is rated for a maximum interrupting capacity of 100 kA and is UL508A listed for safety compliance.
- Part Number: 8502SAG12V02S
- Manufacturer: Square D
- Series: 8502
- Frame Size: Size 00
- Number of Poles: 3
- Coil Voltage: 120 VAC
- Rated Current: 9 A
- Mounting Type: Surface
- Enclosure: NEMA 1
- Interrupt Rating: 100 kA
- Power Rating: 1.5 HP @ 200/230 VAC, 2 HP @ 460/575 VAC
- Certifications: UL508A Listed
Specifications
- Part Number: 8502SAG12V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8502
- Type : SAG
- Voltage : 6
- Amperage : 9
- Phase : 3
- Poles : 3
- Configuration : Nonreversing
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
Product Data
- Dimensions : 10 in (254 mm) x 6.0 in (152 mm) x 5.3 in (134 mm) (Height x Width x Depth)
- Weight : 6.59
