- Manufacturer:Schneider Electric
Description
8501XTD2

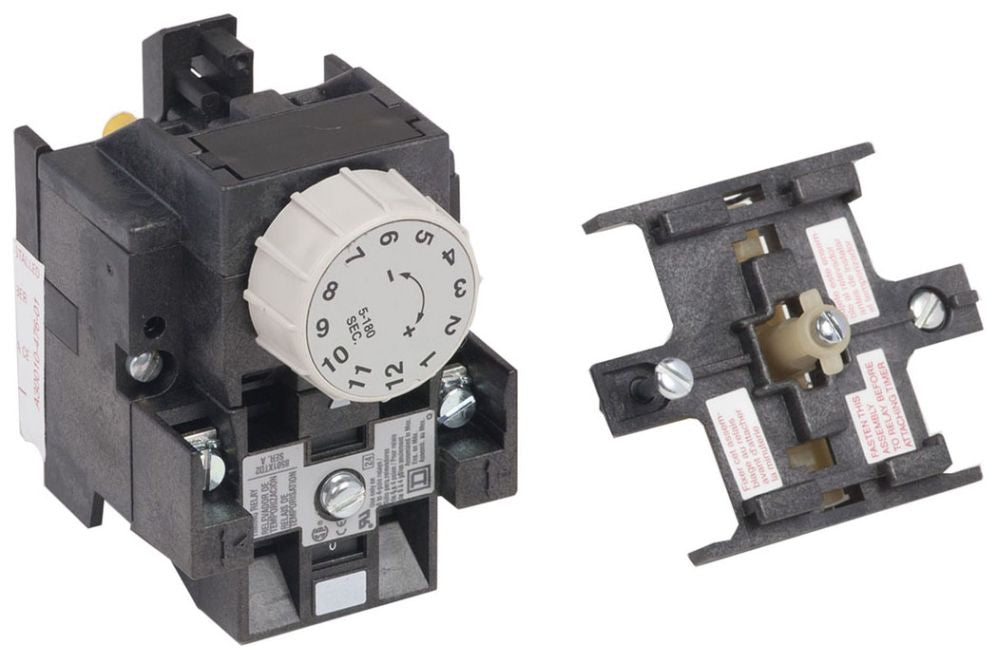

8501XTD2 is a Square D pneumatic timer attachment designed for industrial control applications with a three-minute off delay.
This NEMA Control Relay Type X features a pneumatic timer attachment with 1 normally open (NO) and 1 normally closed (NC) contact, rated for 10A resistive at 600 VAC. It offers a timing range of 5 to 180 seconds off delay and uses screw clamp terminals for 18 to 12 AWG wiring. The relay is chassis mount type and part of the 8501X series, UL and CSA approved. This model is discontinued but remains a reliable choice for timing control in industrial environments.
- Part Number: 8501XTD2
- Manufacturer: Square D
- Type: Pneumatic Timer Attachment
- Contact Configuration: 1 NO, 1 NC
- Timing Range: 5 to 180 seconds off delay
- Current Rating: 10A resistive
- Voltage Rating: 600 VAC
- Mounting Type: Chassis Mount
- Series/Frame: 8501X
- Terminal Type: Screw Clamp, 18 to 12 AWG
- Certifications: UL, CSA
- Status: Discontinued
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 8501XTD2
- Manufacturer : Schneider Electric
- Brand : Square D
Product Data
- UPC : 785901537373
- GTIN : 785901537373
- Country of Origin : Mexico
- Weight : 0.79
- Certification : CSA LR60905 class 3211 02 || UL recognized E78403 CCN NKCR2 || CE
