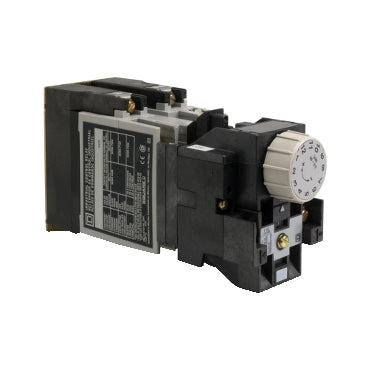

8501XO40XTD1V02 - Square D 10A 600VAC 4-Pole Timer Relay Type X Panel Mount 110/120VAC Coil

8501XO40XTD1V02

8501XO40XTD1V02 is a Square D timer relay designed for motor control applications with a 10 ampere rating and 600 VAC capacity.

This timer relay is part of Square D's Class 8501, Type X series, featuring an off-delay operation mode with a time setting range from 0.2 to 60 seconds. It has a 4-pole configuration with 4 normally open contacts and operates on a coil voltage of 110 VAC at 50 Hz or 120 VAC at 60 Hz. The relay uses screw clamp electrical connections and is designed for panel mounting. It operates reliably within a temperature range of -40 to 160 degrees Fahrenheit and measures 2.23 inches wide, 6.55 inches deep, and 3.5 inches high.

• Amperage Rating: 10 A
• Voltage Rating: 600 VAC
• Coil Voltage: 110 VAC at 50 Hz / 120 VAC at 60 Hz
• Poles: 4
• Contact Form: 4 Normally Open (4NO)
• Operation Mode: Off Delay
• Time Setting Range: 0.2 to 60 seconds
• Mounting Type: Panel Mount
• Electrical Connections: Screw Clamp
• Operating Temperature: -40 to 160 °F
• Dimensions: 2.23" W x 6.55" D x 3.5" H
• Series: Class 8501, Type X

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501XO40XTD1V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : XO

Product Data

• UPC : 785901537427
• GTIN : 00785901537427
• Country of Origin : Mexico
• Dimensions : 3.5 in (88.9 mm) x 2.23 in (56.64 mm) x 6.55 in (166.37 mm) (Height x Width x Depth)
• Weight : 2.681
