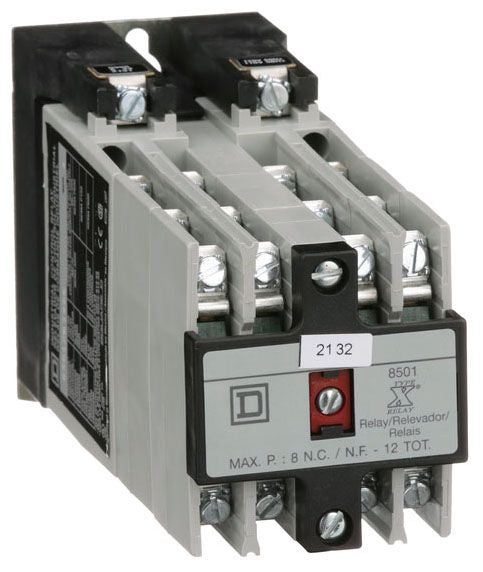

8501XO1200V02 - Square D 12-Pole 10A 110/120V AC Control Relay Panel Mount

8501XO1200V02

8501XO1200V02 is a Square D 12-pole control relay designed for industrial motor control applications with a 10 amp resistive current rating and 110/120V AC coil voltage.

This relay features a 12 normally open contact configuration, panel mounting with screw clamp terminals, and is UL, CSA, and CE certified. It supports a coil voltage of 110 V AC 50 Hz and 120 V AC 60 Hz, with a rated breaking capacity suitable for inductive and resistive loads up to 600 VAC. The relay is part of the Harmony 8501X series, known for long life, high reliability, and ease of maintenance.

• Manufacturer: Square D
• Part Number: 8501XO1200V02
• Type: Control Relay
• Poles: 12 Normally Open (NO)
• Current Rating: 10 A AC, 5 A DC
• Coil Voltage: 110 V AC 50 Hz / 120 V AC 60 Hz
• Mounting Type: Panel Mount
• Contact Configuration: 12 NO
• Interrupt Rating: Up to 600 V AC resistive and inductive loads
• Certifications: UL 508, CSA, CE
• Terminal Type: Screw Clamp
• Series: Harmony 8501X

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501XO1200V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Protection : Magnetic Only

Product Data

• UPC : 078590153686
• GTIN : 00785901536864
• Country of Origin : Mexico
• Dimensions : 3.5 in (88.9 mm) x 2.23 in (56.64 mm) x 6.36 in (161.54 mm) (Height x Width x Depth)
• Weight : 2.93 lb
• Certification : CSA Certified, RoHS Compliant, UL Listed
