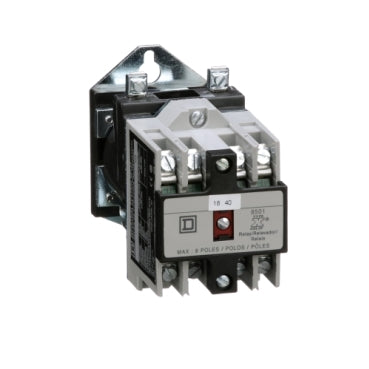

8501XDO20V53 - Schneider Electric NEMA Control Relay Type X 10A Resistive 600VAC 24VDC Coil 2NO Contacts

8501XDO20V53

8501XDO20V53 is a Schneider Electric NEMA Control Relay Type X designed for machine tool applications with a 24 VDC coil and 2 normally open contacts.

This relay features a 10 amp resistive rating at 600 VAC and 5 amp DC rating, suitable for heavy-duty industrial control circuits. It includes screw clamp terminals and is UL 508 listed, CSA certified, and CE marked for safety and compliance. The relay operates within control circuit voltage limits of 0.8 to 1.1 times the coil voltage and is designed for reliable switching performance in motor control and automation systems.

• Type: NEMA Control Relay, Type X
• Coil Voltage: 24 VDC
• Contact Configuration: 2 Normally Open (2NO)
• Current Rating: 10 A resistive at 600 VAC, 5 A DC
• Mounting: Panel mount with screw clamp terminals
• Interrupt Rating: Suitable for heavy-duty applications
• Certifications: UL 508 Listed, CSA Certified, CE Marked
• Application: Machine tool and industrial motor control
• Control Circuit Voltage Limits: 0.8 to 1.1 Uc DC
• Dimensions: Approx. 3.56 in x 2.23 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501XDO20V53
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays

Product Data

• UPC : 785901537441
• Country of Origin : Mexico
• Dimensions : 3.56 in (90.42 mm) x 2.23 in (56.64 mm) x 5.17 in (131.32 mm) (Height x Width x Depth)
• Weight : 3.32
• Certification : CSA Certified, RoHS Compliant, UL Listed
