8501RSD42V53 - Schneider Electric 24VDC 10A DPDT Miniature Plug-In Relay Socket Mount

8501RSD42V53

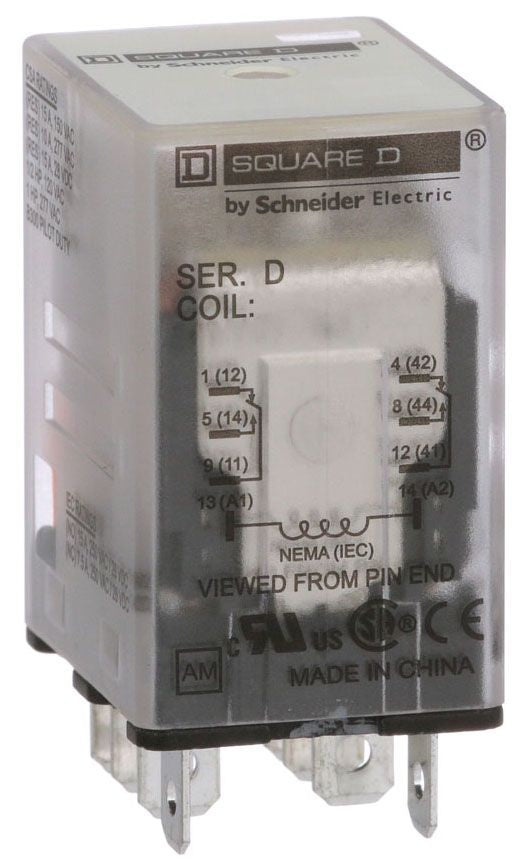

8501RSD42V53 is a Schneider Electric miniature plug-in relay with a 24VDC coil and 10 ampere resistive rating designed for socket mounting.

This DPDT (Double Pole Double Throw) relay features silver tin oxide contacts and is suitable for control applications requiring reliable switching with a coil voltage of 24VDC. It offers a contact rating of 10A at 30VDC and 300VAC switching voltage, with a fast operating time and long mechanical life. The relay is UL Listed (with 8501NR socket), UL Recognized Component, CSA Certified, and CE Marked, ensuring compliance with industry standards. It mounts on an 8-blade socket and is designed for use in adverse environments with a temperature range from -40°F to 158°F.

• Coil Voltage: 24VDC
• Contact Rating: 10A resistive at 30VDC
• Switching Voltage: Up to 300VAC
• Contact Configuration: DPDT (2 NO + 2 NC)
• Contact Material: Silver Tin Oxide
• Mounting Type: Socket Mount (8-blade)
• Approvals: UL Listed (with socket), UL Recognized, CSA Certified, CE Marked
• Operating Temperature Range: -40°F to 158°F
• Relay Type: Miniature, Type R
• Operating Times: Pick-Up 25ms max, Drop-Out 20ms max

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501RSD42V53
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Fuse
• Item Subcategory : Fuse Part And Accessory

Product Data

• UPC : 785901131366
• GTIN : 785901131366
• Country of Origin : China
• Dimensions : 1.07 in (27.3 mm) x 0.8 in (21 mm) x 1.6 in (41.8 mm) (Height x Width x Depth)
• Weight : 0.09 lb
• Certification : CE Certified, CSA Certified, UL Listed
