8501RSD34V53 - Square D 5A 24VDC 4PDT Plug-In Relay Type R Hermetically Sealed Miniature

8501RSD34V53

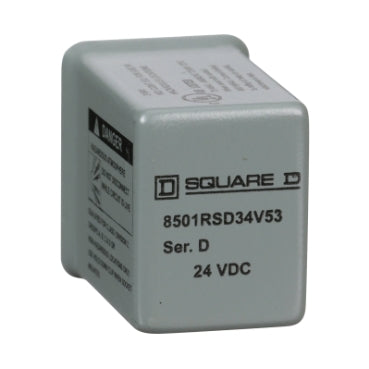

8501RSD34V53 is a Square D plug-in relay, Type R hermetically sealed miniature relay with a 5 amp resistive rating at 240 VAC and 30 VDC coil voltage.

This 4-pole double throw (4PDT) relay features a 24 VDC coil, 14-pin spade terminal socket mounting, and hermetically sealed silver tin oxide contacts for high reliability and long mechanical life. It operates at frequencies of 50/60 Hz and is rated for ambient temperatures from -40 to 158 °F. Certified by UL, CSA, and CE, it is suitable for logic elements and power switching in motor control applications.

• Amperage Rating: 5 A resistive
• Coil Voltage: 24 VDC
• Contact Form: 4PDT (4 Form C)
• Contact Material: Hermetically sealed silver tin oxide
• Mounting Type: Socket mount with spade terminals
• Operating Temperature: -40 to 158 °F (-40 to 70 °C)
• Number of Pins: 14
• Frequency Rating: 50/60 Hz
• Series: 8501R
• Certifications: UL recognized, CSA, CE, RoHS compliant
• Country of Origin: China

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501RSD34V53
• Manufacturer : Struthers Dunn Relays
• Brand : Struthers Dunn Relays
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Plug In Relay

Product Data

• UPC : 785901031895
• GTIN : 00785901031895
• Country of Origin : China
• Dimensions : Depth 1.53 in (38.9 mm) Width 0.91 in (23.1 mm) Height 1.16 in (29.4 mm)
• Weight : 0.11
• Certification : CE Certified, CSA Certified, UL Listed
