8501RSD14V53 - Square D Plug-In Relay Type R Miniature 0.5 HP 277 VAC 8A 14-Blade 4PDT 4 NO 4 NC 24 VDC Coil

8501RSD14V53

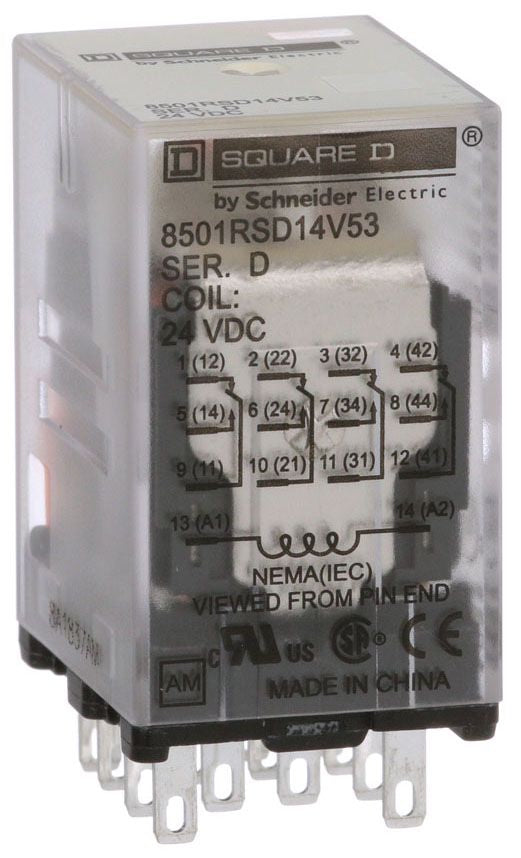

8501RSD14V53 is a Square D Type R miniature plug-in relay designed for control circuit logic applications. This relay features a 14-blade configuration with 4PDT (4 pole double throw) contacts, including four normally open and four normally closed contacts. It is socket mountable and compatible with 8501NR45 and 8501NR45B relay sockets for easy replacement. The relay has a 24 VDC nonreplaceable coil and is rated for 0.5 HP at 277 VAC and 8A resistive at 120 VAC. It is UL listed, UL component recognized, and CSA certified for reliable performance in industrial and commercial environments. This relay is ideal for applications requiring reliable switching and control in compact spaces. Its robust design ensures long life and dependable operation in a variety of control circuits.

• Part Number: 8501RSD14V53
• Manufacturer: Square D
• Type: Plug-In Relay, Type R, Miniature
• Coil Voltage: 24 VDC
• Contacts: 4PDT (4 NO, 4 NC)
• Blade Configuration: 14 Blade
• Resistive Rating: 8A at 120 VAC, 6A at 277 VAC
• HP Rating: 0.5 HP at 277 VAC
• Mounting Type: Socketable
• Series: 8501R
• Certifications: UL Listed, UL Component Recognized, CSA Certified
• Application: Control Circuit Logic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501RSD14V53
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Fuse
• Item Subcategory : Fuse Part And Accessory

Product Data

• UPC : 78590155942
• GTIN : 785901559504
• Country of Origin : China
• Dimensions : 1.10 in (27.9 mm) x 0.8 in (21 mm) x 1.6 in (41.5 mm) (Height x Width x Depth)
• Weight : 0.08 lb
• Certification : CE Certified, CSA Certified, UL Listed
