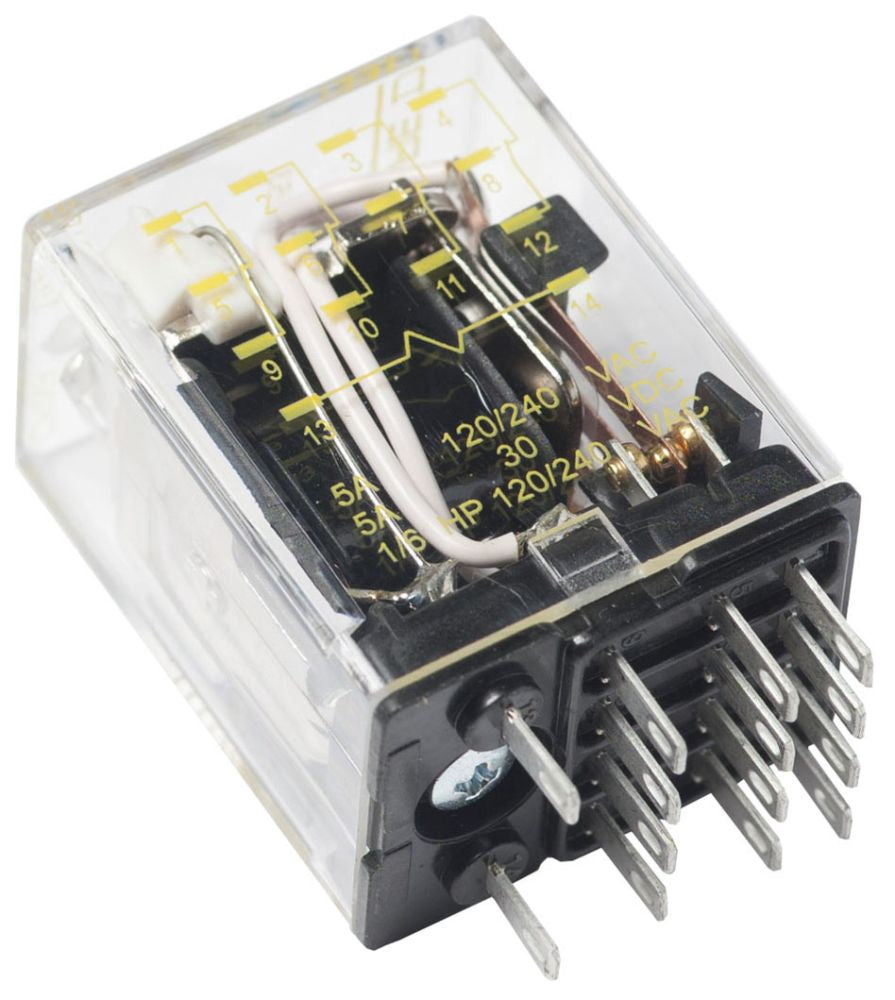

8501RSD14P14V53 - Schneider Electric 5A 24VDC Coil 4PDT Plug-In Relay Type R Miniature

8501RSD14P14V53

8501RSD14P14V53 is a Schneider Electric miniature plug-in relay with a 24 VDC coil and 5 ampere load rating.

This Type R relay features a 4-pole double throw (4PDT) contact arrangement with 4 normally open and 4 normally closed contacts. It is designed for logic elements and power switching output devices, offering a short stroke armature for long mechanical life and high-speed operation. The relay supports motor loads up to 0.5 HP at 277 VAC and 0.33 HP at 120 VAC, with a maximum switching voltage of 300 VAC and 30 VDC. It mounts via socket and includes an LED indicator for relay status.

• Coil Voltage: 24 VDC
• Contact Form: 4PDT (4 Pole Double Throw)
• Load Current Rating: 5 Amperes
• Load Voltage Rating: 300 VAC max
• Motor Load Rating: 0.5 HP at 277 VAC, 0.33 HP at 120 VAC
• Mounting Type: Plug-In Socket
• Relay Indication: LED Indicator
• Contact Configuration: 4 Normally Open, 4 Normally Closed
• Application: Logic and power switching devices
• Manufacturer: Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501RSD14P14V53
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Fuse
• Item Subcategory : Fuse Part And Accessory

Product Data

• UPC : 785901584070
• GTIN : 785901584070
• Country of Origin : China
• Dimensions : 1.10 in (27.9 mm) x 0.8 in (21 mm) x 1.6 in (41.5 mm) (Height x Width x Depth)
• Weight : 0.08 lb
• Certification : CE Certified, CSA Certified, UL Listed
