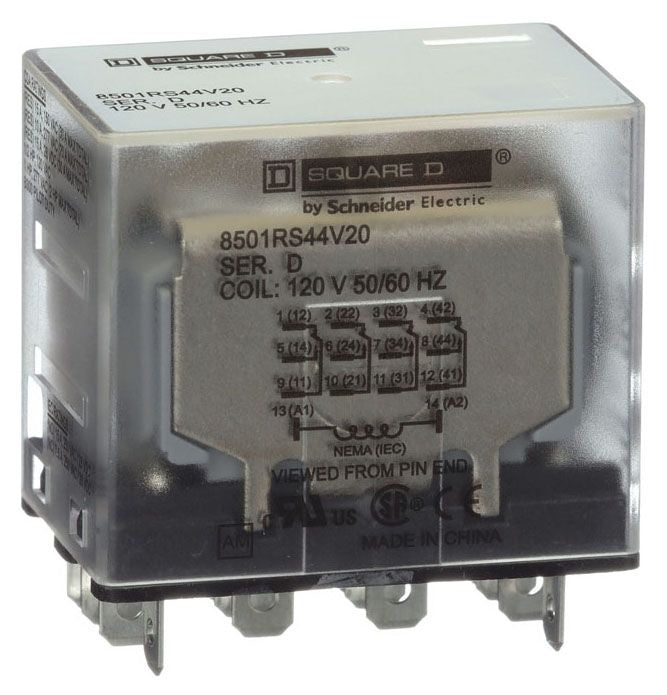

8501RS44V20 - Square D 120VAC 10A 4PDT Plug-In Relay Type R Miniature 1HP 277VAC

8501RS44V20

8501RS44V20 is a miniature plug-in relay designed for motor control applications requiring reliable switching at 120VAC and 277VAC. This Square D Type R relay features a 4PDT (4 pole double throw) configuration, rated for 10A resistive and 1HP at 277VAC. It is suitable for use in control panels, HVAC systems, and industrial automation where compact size and dependable performance are critical. The relay operates with a 120VAC coil and offers fast pickup and dropout times for responsive control.

• Part Number: 8501RS44V20
• Manufacturer: Square D
• Relay Type: Type R Miniature Plug-In
• Coil Voltage: 120VAC
• Current Rating: 10A
• Motor Load Rating: 0.5HP @ 120VAC, 1HP @ 277VAC
• Contacts: 4PDT (4 NO, 4 NC)
• Mounting Type: Plug-In
• Operating Temperature: -40°F to 158°F
• Interrupt Rating: 3A @ 120VAC
• Series/Frame: Type R
• Certifications: RoHS, REACh, California Proposition 65

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501RS44V20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory

Product Data

• UPC : 78590113717
• GTIN : 00785901137177
• Country of Origin : China
• Dimensions : 1.07 in (27.3 mm) x 1.6 in (40.6 mm) x 1.6 in (41.8 mm) (Height x Width x Depth)
• Weight : 0.16
• Certification : CE Certified, CSA Certified, UL Listed
