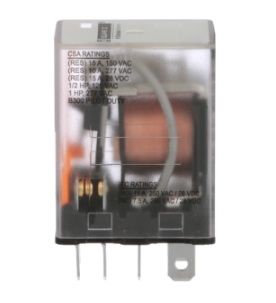

8501RS42V20 - Schneider Electric 10 Amp 120 VAC DPDT Motor Control Relay

8501RS42V20

8501RS42V20 is a Schneider Electric motor control relay designed for reliable switching in industrial applications.This miniature relay features a double-pole double-throw (DPDT) configuration with two normally open and two normally closed contacts. It supports a 10 ampere current rating at 120 VAC coil voltage and is rated for motor loads up to 0.5 HP at 120 VAC and 1 HP at 277 VAC. The relay offers a 15 ampere resistive contact rating at 120 VAC, 277 VAC, and 28 VDC, ensuring versatility and durability. It is suitable for high contact reliability and can operate in a wide temperature range from -40°C to 55°C.

Key Specifications
• Part Number: 8501RS42V20
• Manufacturer: Schneider Electric
• Category: Motor Control Relay
• Contact Configuration: DPDT (2 Normally Open + 2 Normally Closed)
• Coil Voltage: 120 VAC
• Current Rating: 10 Amps
• Contact Rating: 15 Amps Resistive at 120 VAC, 277 VAC, 28 VDC
• Motor Load Rating: 0.5 HP at 120 VAC, 1 HP at 277 VAC
• Mounting Type: Plug-in Socket
• Operating Temperature: -40°C to 55°C
• High contact reliability and long mechanical life
• Certifications: UL 508 Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 8501RS42V20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Relay



Product Data

• UPC : 785901131311
• Country of Origin : China
• Dimensions : 1.07 in (27.3 mm) x 0.8 in (21 mm) x 1.6 in (41.8 mm) (Height x Width x Depth)
• Weight : 0.09 lb
• Certification : CE Certified, CSA Certified, UL Listed
