Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Relay
Description

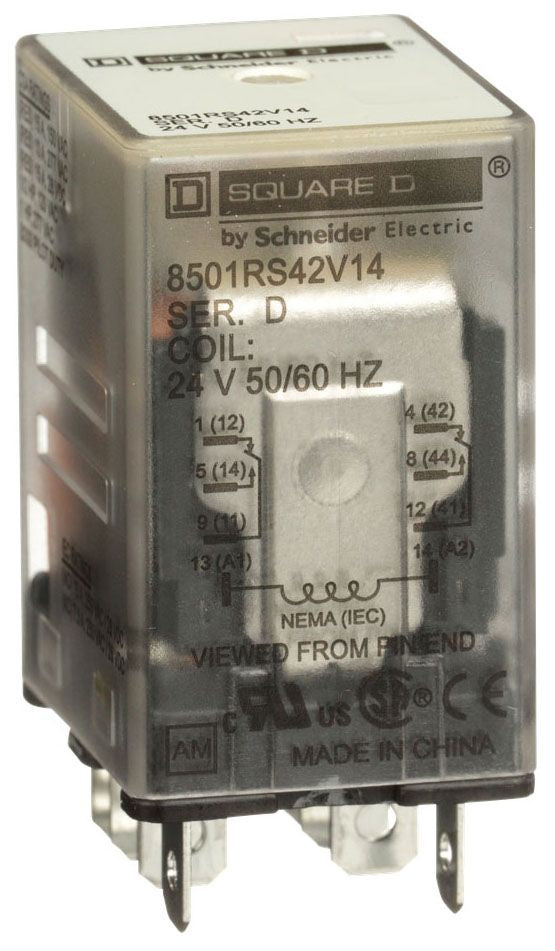

8501RS42V14
8501RS42V14 is a Schneider Electric miniature relay from the Harmony 8501R series featuring a 24V AC coil and DPDT contact configuration rated for 15 amperes.This relay provides reliable switching with 2 normally open and 2 normally closed contacts, supporting 15A resistive load at 120V AC and 277V AC, and 1 HP motor load at 277V AC.
- Coil Voltage: 24V AC
- Contact Form: DPDT (2NO + 2NC)
- Current Rating: 15 Amperes resistive
- Voltage Rating: 120V AC and 277V AC
- Horsepower Rating: 1 HP at 277V AC, 1/2 HP at 120V AC
- Number of Pins: 8 blades
- Mounting Type: Plug-in socket mount
- Series: Harmony 8501R
- Short stroke armature for long mechanical life
- Operating Temperature Range: -40°C to 55°C
- Suitable for high speed operation and adverse environments
Specifications
- Part Number: 8501RS42V14
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Relay
Product Data
- UPC : 785901131304
- GTIN : 785901131304
- Country of Origin : China
- Dimensions : 1.07 in (27.3 mm) x 0.8 in (21 mm) x 1.6 in (41.8 mm) (Height x Width x Depth)
- Weight : 0.09 lb
- Certification : CE Certified, CSA Certified, UL Listed
