Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fuse Part And Accessory
Description
8501RS42P14V20

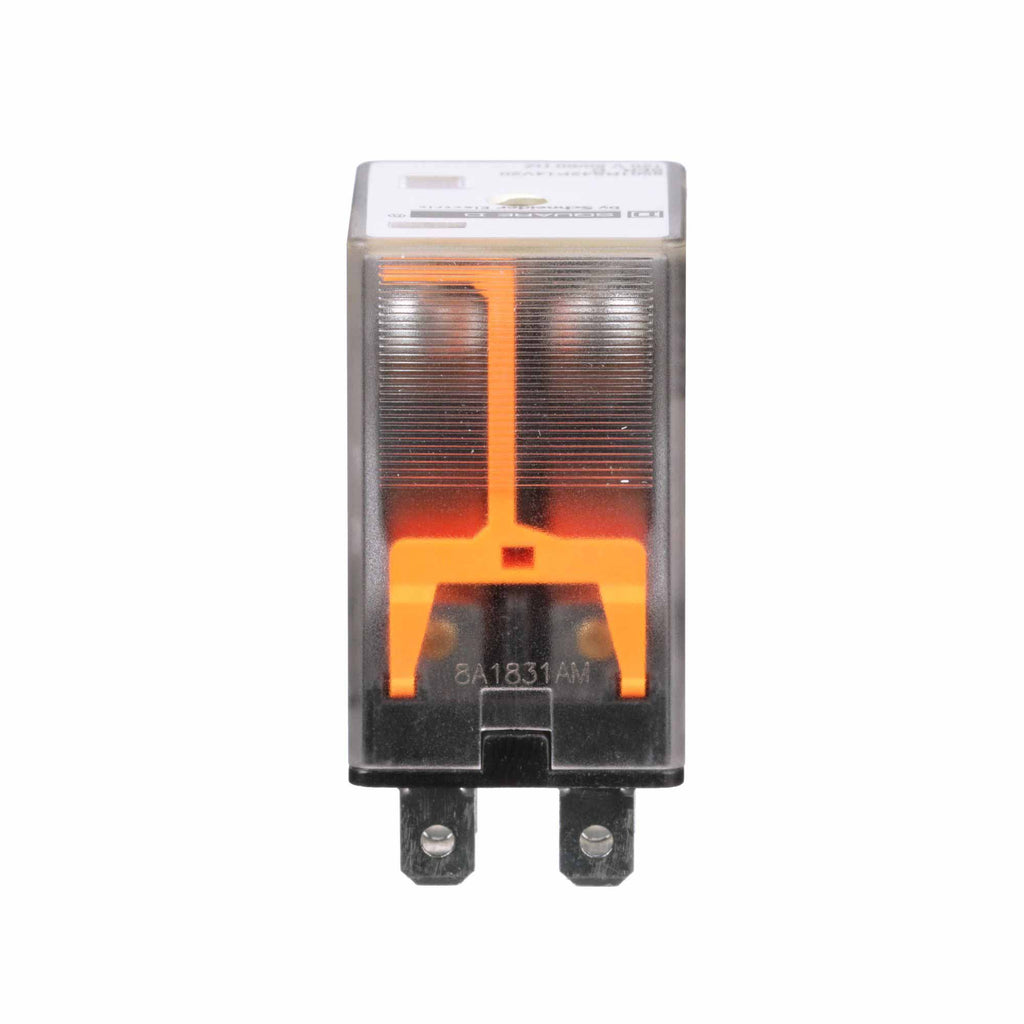

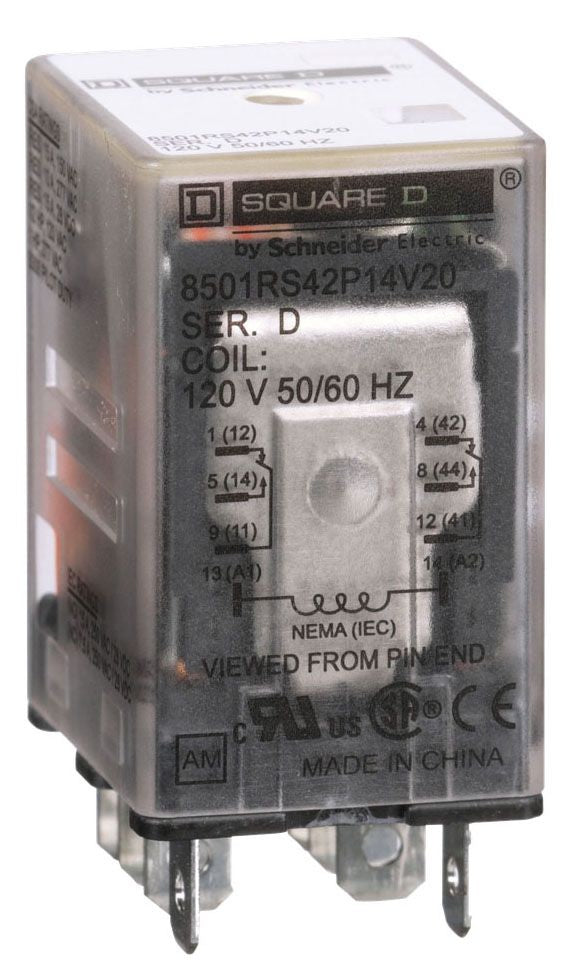

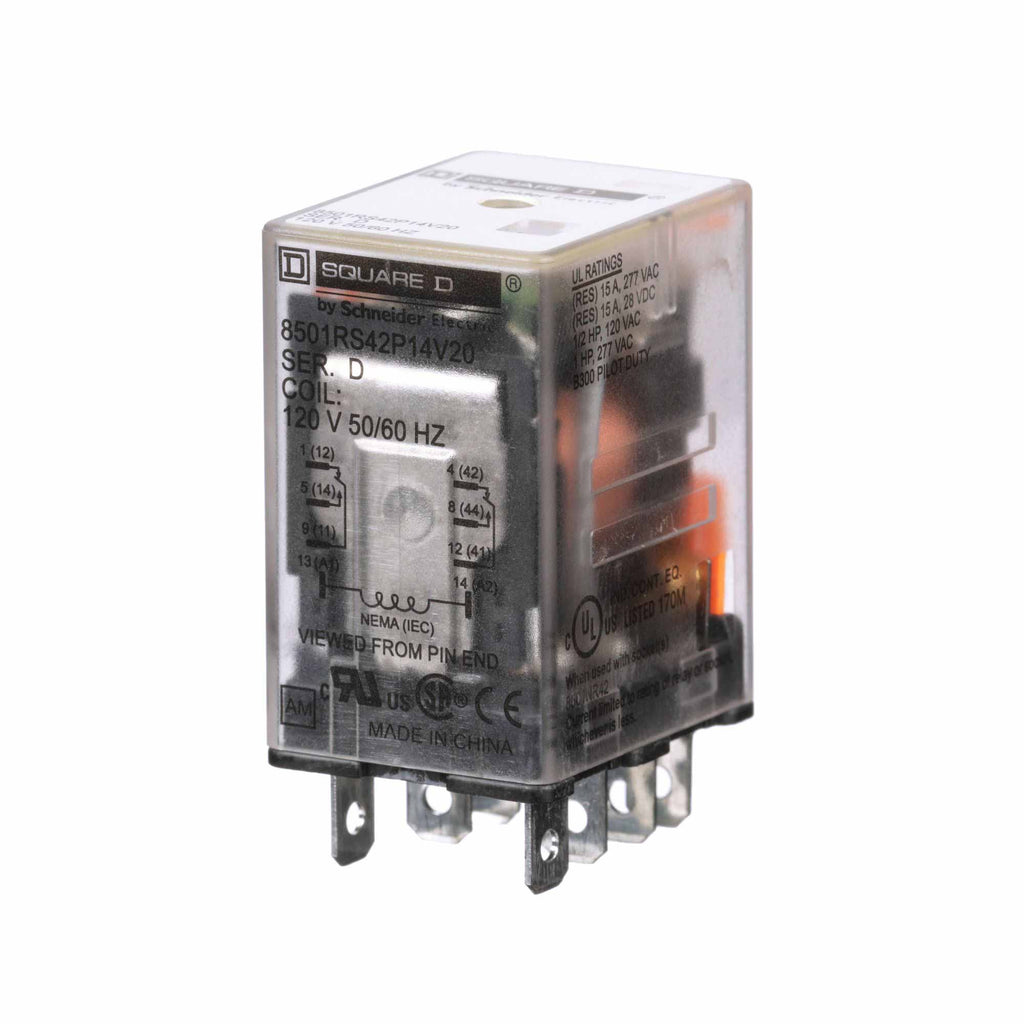

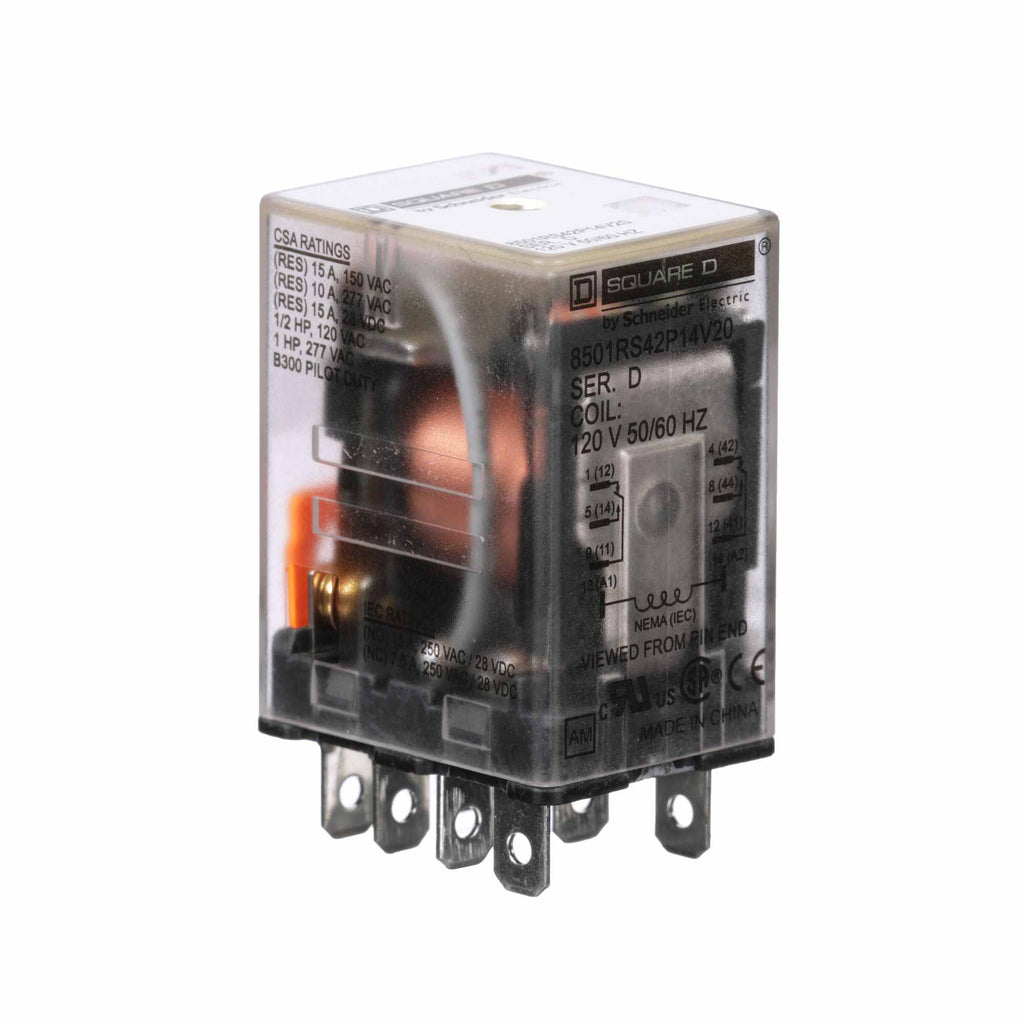

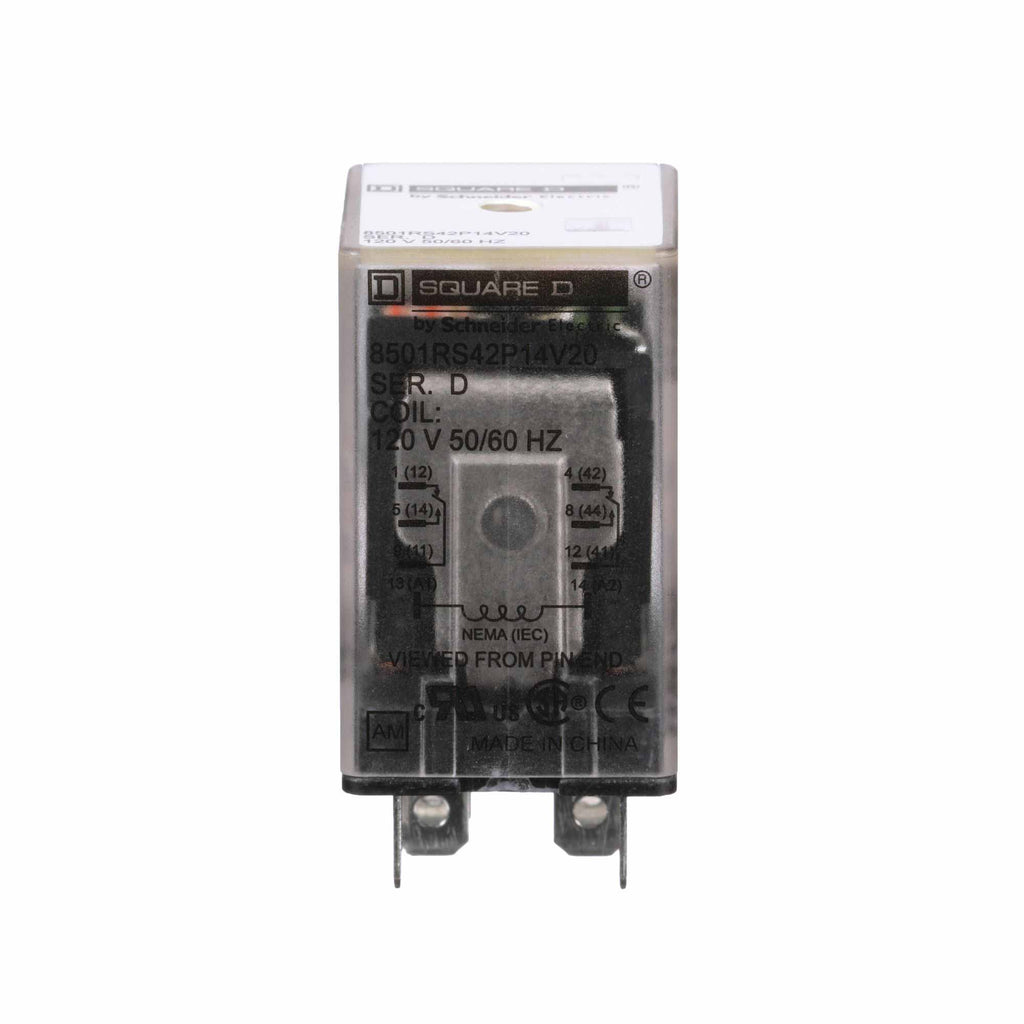

8501RS42P14V20 is a Square D miniature plug-in relay featuring a 120 VAC coil and DPDT contact configuration rated for 15 amperes.This relay supports up to 1 HP at 277 VAC and 15A resistive at 120 VAC with an 8-blade DPDT contact composition including two normally open and two normally closed contacts. It includes a green LED pilot light indicator and is designed for reliable power switching and logic control applications.
- Manufacturer: Square D
- Part Number: 8501RS42P14V20
- Type: Miniature Plug-in Relay
- Contact Configuration: DPDT (2 Form C)
- Contact Rating: 15A resistive at 120 VAC
- Coil Voltage: 120 VAC, 50/60 Hz
- Horsepower Rating: 1 HP at 277 VAC
- Number of Poles: 2 Pole
- Includes Green LED Pilot Light
- Mounting Type: Plug-in Socket
- Certifications: CE, CSA, UL
- Series: 8501R
Specifications
- Part Number: 8501RS42P14V20
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
Product Data
- UPC : 785901131342
- GTIN : 785901131342
- Country of Origin : China
- Dimensions : 1.07 in (27.3 mm) x 0.8 in (21 mm) x 1.6 in (41.8 mm) (Height x Width x Depth)
- Weight : 0.09 lb
- Certification : CE Certified, CSA Certified, UL Listed
