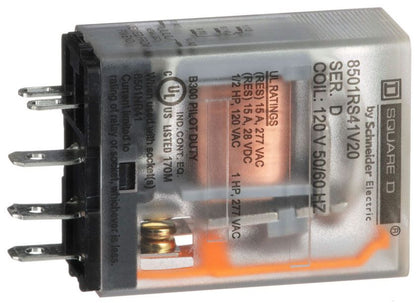

8501RS41V20 - Schneider Electric 15A 120VAC SPDT Plug-In Relay, 1 Pole, 300VAC Max, 8501R Series

8501RS41V20

8501RS41V20 is a miniature plug-in relay from Schneider Electric's 8501R series, designed for reliable motor control and switching applications. This SPDT (1 Form C) relay features a 120VAC coil and is rated for 15A resistive load at up to 300VAC, making it suitable for a wide range of industrial and commercial uses. The relay offers high contact reliability, long mechanical life, and operates in a broad temperature range from -40°C to 55°C. Its compact design and socketable mounting make it easy to install and replace in control panels and automation systems. The 8501RS41V20 is built for durability and performance, with silver alloy, gold-flashed contacts for low-level switching and resistance to environmental stress. It is ideal for use in adverse environments and supports high-speed operation due to its short stroke armature motion. This relay is commonly used in motor control, HVAC, and industrial automation applications where reliability and compact size are critical.

• Part Number: 8501RS41V20
• Manufacturer: Schneider Electric
• Series: 8501R
• Mounting Type: Socketable (Plug-In)
• Coil Voltage: 120VAC
• Load Amperage: 15A resistive
• Load Voltage: 300VAC max, 30VDC max
• Contacts: SPDT (1 Form C), 1 Pole
• Interrupt Rating: 3A 120VAC inductive, 1.5A 240VAC inductive
• Operating Temperature: -40°C to 55°C
• HP Rating: 1/2 HP at 120VAC, 1 HP at 277VAC
• Standards: UL 508

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501RS41V20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Relay

Product Data

• UPC : 785901137030
• GTIN : 785901137030
• Country of Origin : China
• Dimensions : 1.07 in (27.3 mm) x 0.6 in (14 mm) x 1.6 in (41.8 mm) (Height x Width x Depth)
• Weight : 0.06 lb
• Certification : CE Certified, CSA Certified, UL Listed
