Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Relay
Description

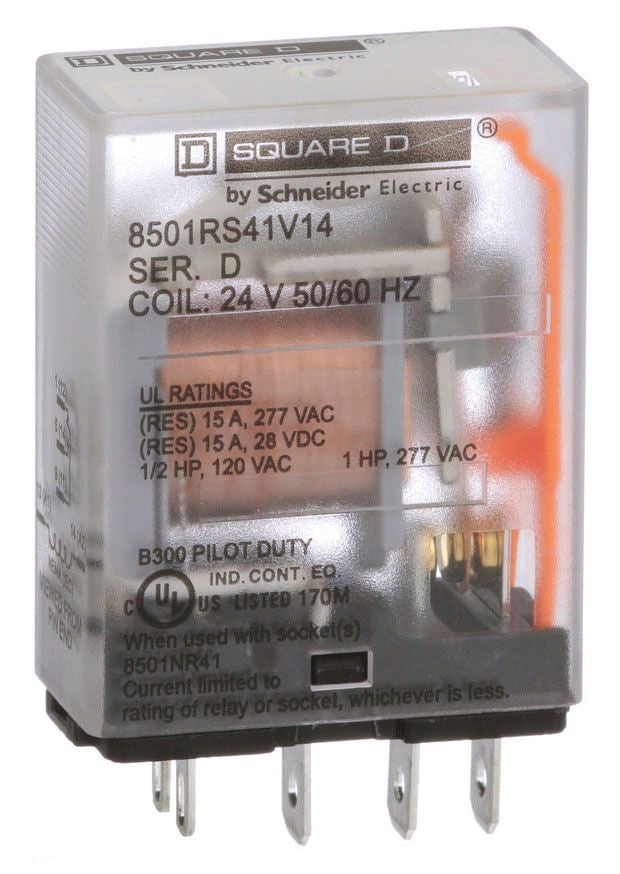

8501RS41V14
8501RS41V14 is a miniature plug-in relay from Schneider Electric, designed for reliable motor control and general purpose applications. This relay features a 24 VAC coil and is rated for 15A resistive at 120 VAC and 1 HP at 277 VAC. It has a single pole, SPDT configuration with one normally open and one normally closed contact, making it suitable for a wide range of control circuits. The 8501RS41V14 relay is socket mounted for easy installation and replacement. It is built for high-speed operation and long mechanical life, ideal for demanding environments. The relay is motor rated and supports both resistive and inductive loads, with UL 508 certification for inductive control circuits.
- Manufacturer: Schneider Electric
- Part Number: 8501RS41V14
- Mounting Type: Socket Mounted
- Amperage: 15A resistive at 120 VAC
- Voltage: 24 VAC coil
- Poles: 1 Pole
- Configuration: SPDT, 1 NO, 1 NC
- Motor Rated: Yes
- Inductive Rating: 3A 120 VAC, 1.5A 240 VAC (UL 508)
- HP Rating: 1 HP at 277 VAC, 0.5 HP at 120 VAC
- Series/Frame: Type R
- Certification: UL 508
Specifications
- Part Number: 8501RS41V14
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Relay
Product Data
- UPC : 785901137023
- GTIN : 785901137023
- Country of Origin : China
- Dimensions : 1.07 in (27.3 mm) x 0.6 in (14 mm) x 1.6 in (41.8 mm) (Height x Width x Depth)
- Weight : 0.06 lb
- Certification : CE Certified, CSA Certified, UL Listed
