8501RS14P14V20 - Schneider Electric 4PDT Miniature Relay 120VAC Socket Mount LED

8501RS14P14V20

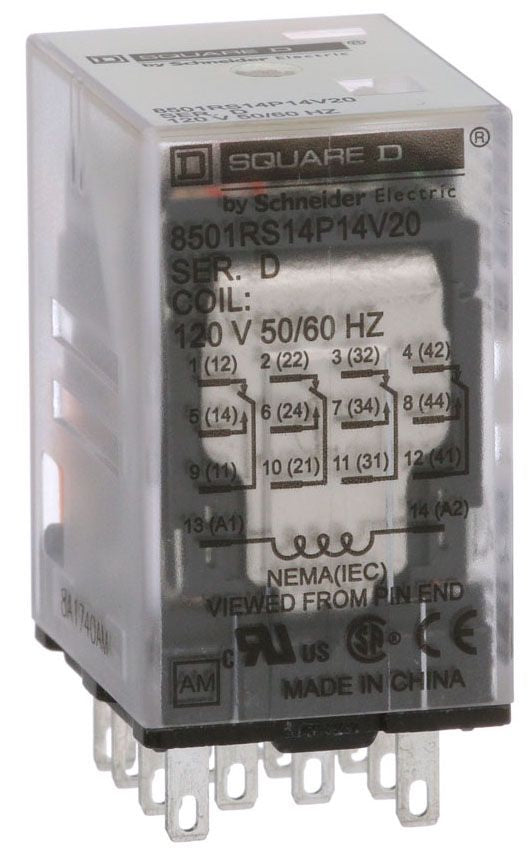

8501RS14P14V20 is a miniature plug-in relay from the Schneider Electric Harmony 8501R series designed for general purpose control and power switching applications. This 4PDT (four pole double throw) relay features socket mounting with a green LED indicator for energized status and mechanical flag indication. The relay is rated for 8 amperes at 120 VAC and 30 VDC, with a 6 ampere resistive rating at 277 VAC. It provides 1/3 horsepower at 120 VAC and 1/2 horsepower at 277 VAC motor load capability. The armature design incorporates short stroke motion to deliver long mechanical life during high speed operation, making it suitable for high contact reliability and low level switching applications. Maximum switching voltage is 300 VAC or 30 VDC with response time of 20 milliseconds for both pick-up and drop-out. Operating temperature range spans from -40 degrees Fahrenheit to 131 degrees Fahrenheit.

• Part Number: 8501RS14P14V20
• Manufacturer: Schneider Electric
• Relay Type: 4PDT Miniature Plug-In
• Coil Voltage: 120 VAC
• Contact Rating: 8 A @ 120 VAC, 6 A @ 277 VAC
• Mounting Style: Socket
• Contact Form: 4NO + 4NC
• Indicator: Green LED and Mechanical Flag
• Maximum Switching Voltage: 300 VAC, 30 VDC
• Motor Load: 1/3 HP @ 120 VAC, 1/2 HP @ 277 VAC
• Certifications: UL Listed, CSA Certified, CE Certified
• Response Time: 20 ms Pick-up, 20 ms Drop-out

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501RS14P14V20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Relay

Product Data

• UPC : 785901559917
• GTIN : 785901559917
• Country of Origin : China
• Dimensions : 1.10 in (27.9 mm) x 0.8 in (21 mm) x 1.6 in (41.5 mm) (Height x Width x Depth)
• Weight : 0.08 lb
• Certification : CE Certified, CSA Certified, UL Listed
