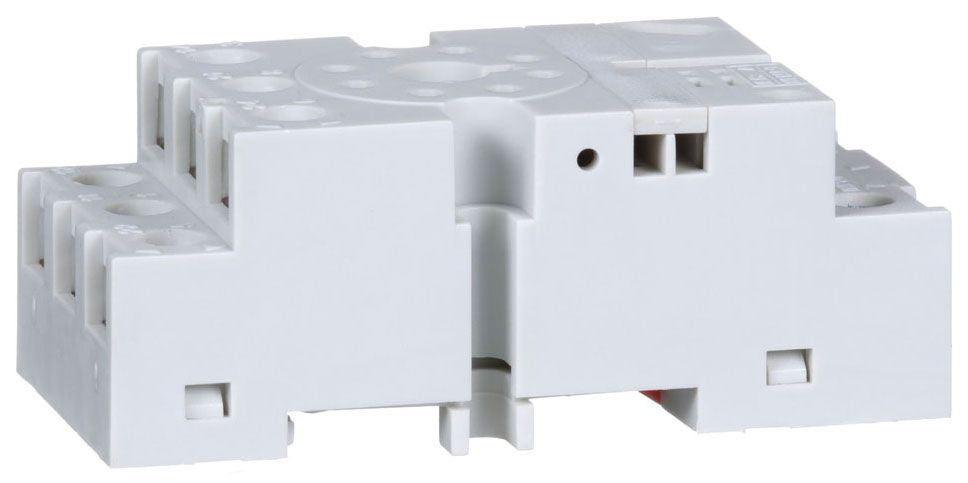

8501NR52 - Square D 8-Pin Double Tier Relay Socket 5-16A 300VAC DIN Rail/Panel Mount

8501NR52

8501NR52 is a Square D double tier relay socket designed for 8 tubular pin plug-in relays, supporting amperages from 5 to 16 amps and voltages up to 300 VAC.8501NR52 features a compact design compatible with 8510KP relays and 9050JCK timers, suitable for logic elements and power switching applications. It supports DIN rail or direct panel mounting for flexible installation.

• Amperage range: 5 to 16 Amps
• Voltage rating: 300 VAC (16A), 600 VAC (5A)
• 8 tubular pin configuration
• Double tier design
• Mounting: DIN rail or direct panel mount
• Compatible with 8510KP relays and 9050JCK timers
• Class 8501 series miniature plug-in relay socket
• Standards: UL recognized, CSA, CE, RoHS compliant
• Dimensions approx. 1.42 in W x 1.42 in D x 3.05 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501NR52
• Manufacturer : Square D
• Brand : Square D
• Category : Fuse
• Item Subcategory : Fuse Part And Accessory

Product Data

• UPC : 78590158385
• GTIN : 00785901583851
• Dimensions : 3.05 in (77.5 mm) x 1.4 in (36 mm) x 1.4 in (36 mm) (Height x Width x Depth)
• Weight : 0.14 lb
