Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
8501NR45

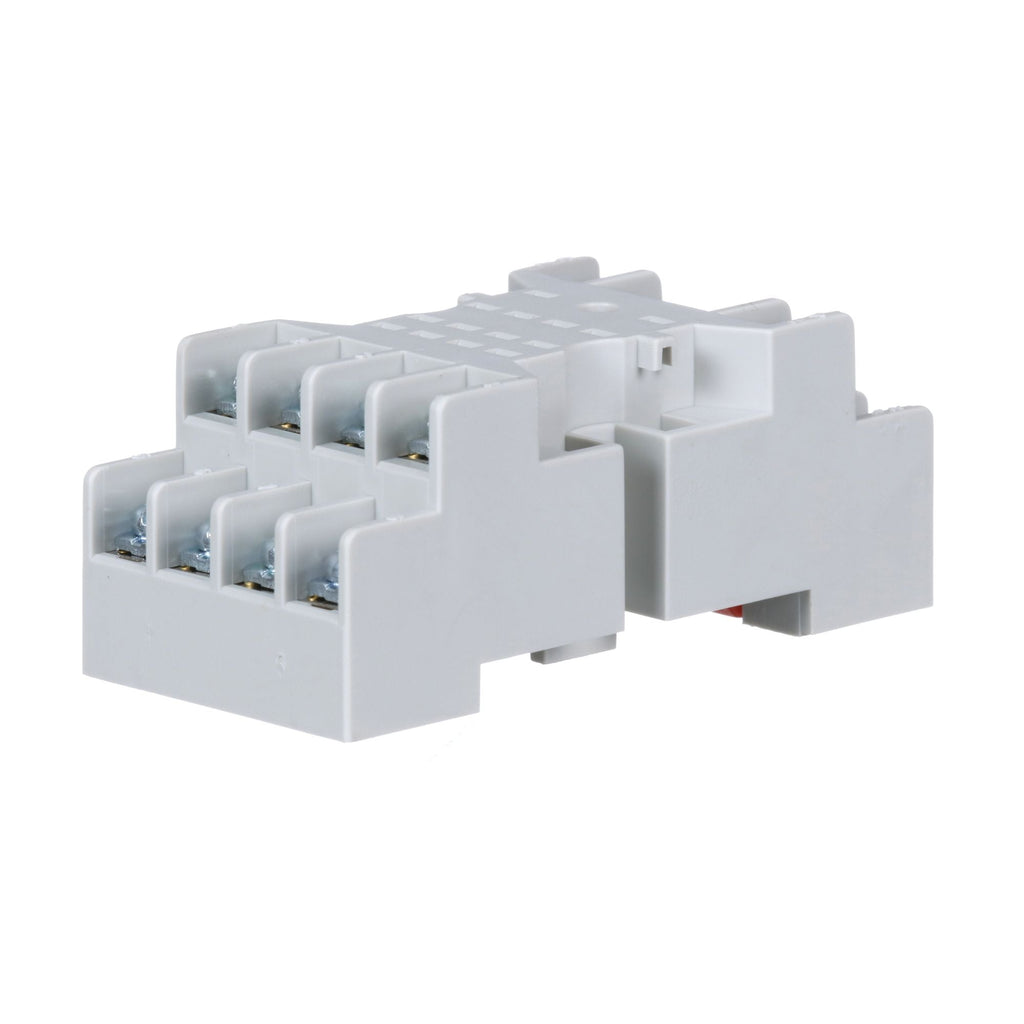

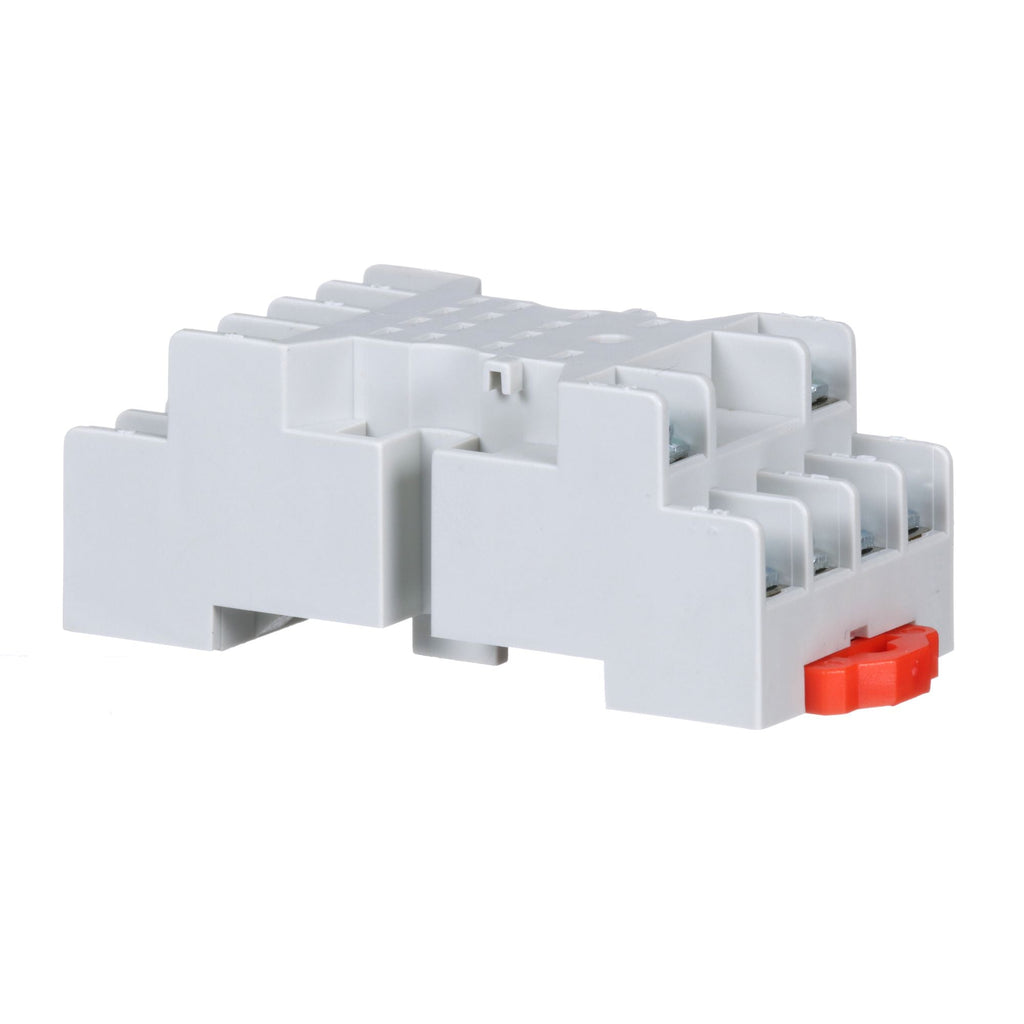

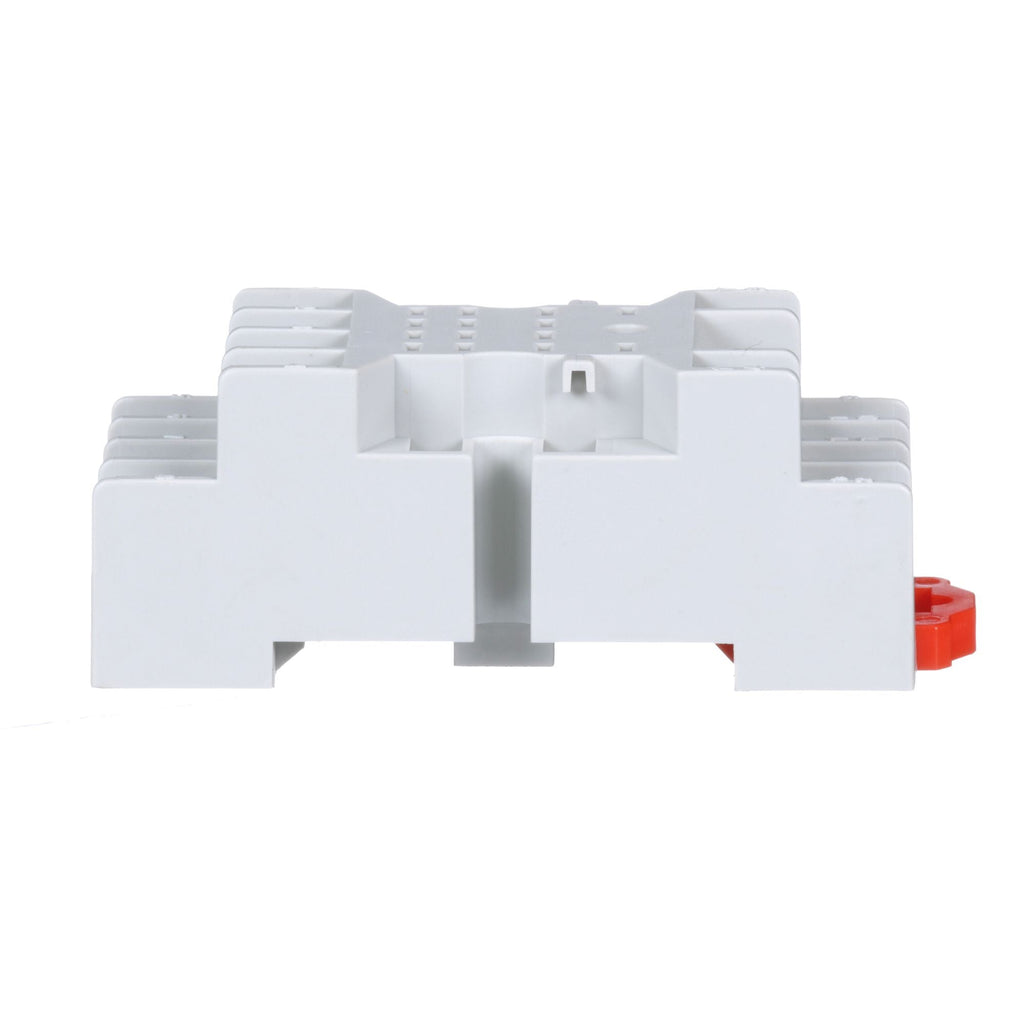

8501NR45 is a Schneider Electric 14-pin double tier relay socket designed for secure, flexible installation of 8510R series relays in motor control and industrial applications.
This relay socket features double tiered screw clamp terminals for reliable connections, supports both DIN rail and direct panel mounting, and is engineered for general purpose logic elements, lighting control, HVAC, and power switching. Its robust construction ensures compatibility with a wide range of industrial environments.
-
Key Specifications
- Manufacturer: Schneider Electric
- Part Number: 8501NR45
- Category: Motor Control
- Amperage: 10 A
- Voltage: 300 VAC
- Poles: 14-pin (blade)
- Mounting Type: DIN Rail or Panel Mount
- Connection Type: Screw Terminal
- Series/Frame: For 8510R series relays
- Interrupt Rating: Not specified
- Trip Unit: Not applicable
- Certifications: Not specified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 8501NR45
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relay Socket
- Voltage : 250
Product Data
- UPC : 785901583660
- GTIN : 00785901583660
- Country of Origin : China
- Dimensions : 2.7 in (69 mm) x 1.2 in (30.7 mm) x 1.0 in (25.4 mm) (Height x Width x Depth)
- Weight : 0.11
- Certification : CE Certified, CSA Certified, UL Recognized
