Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
8501KPR13V20

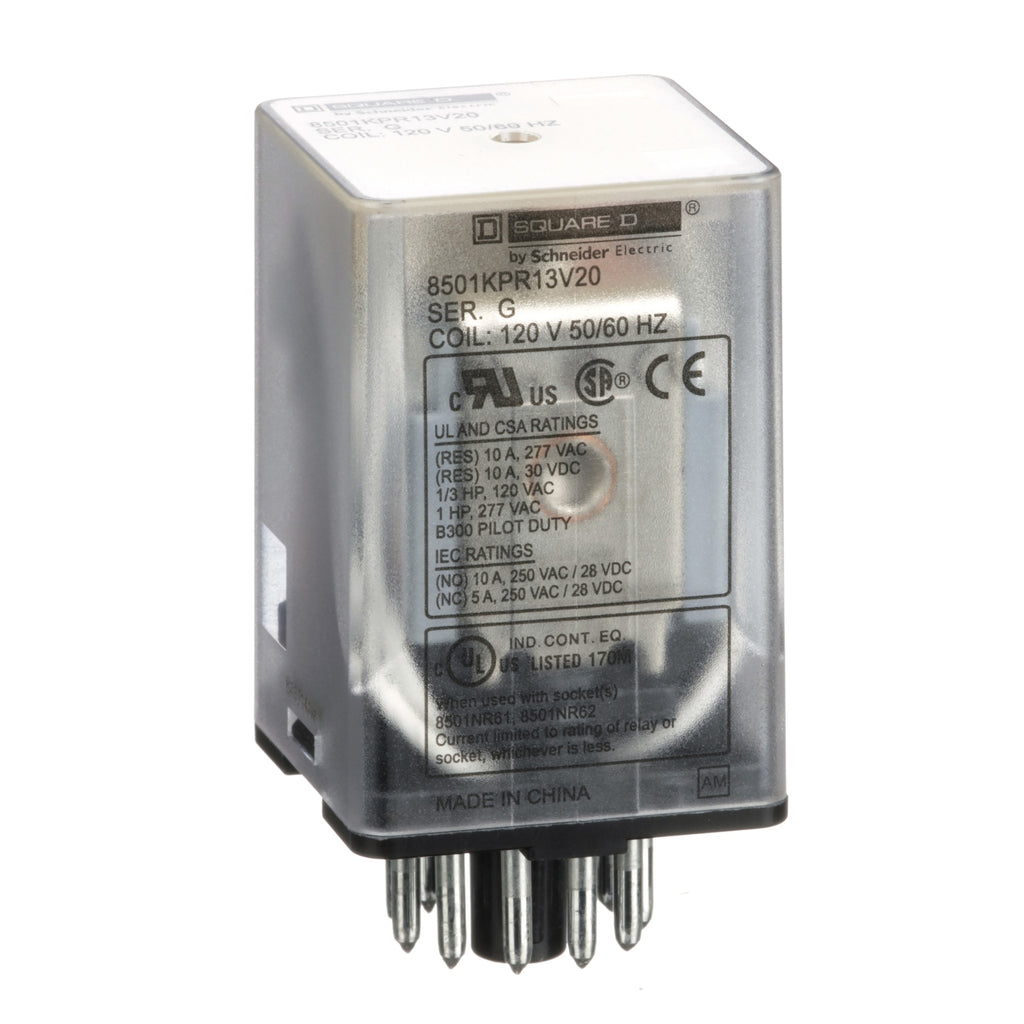

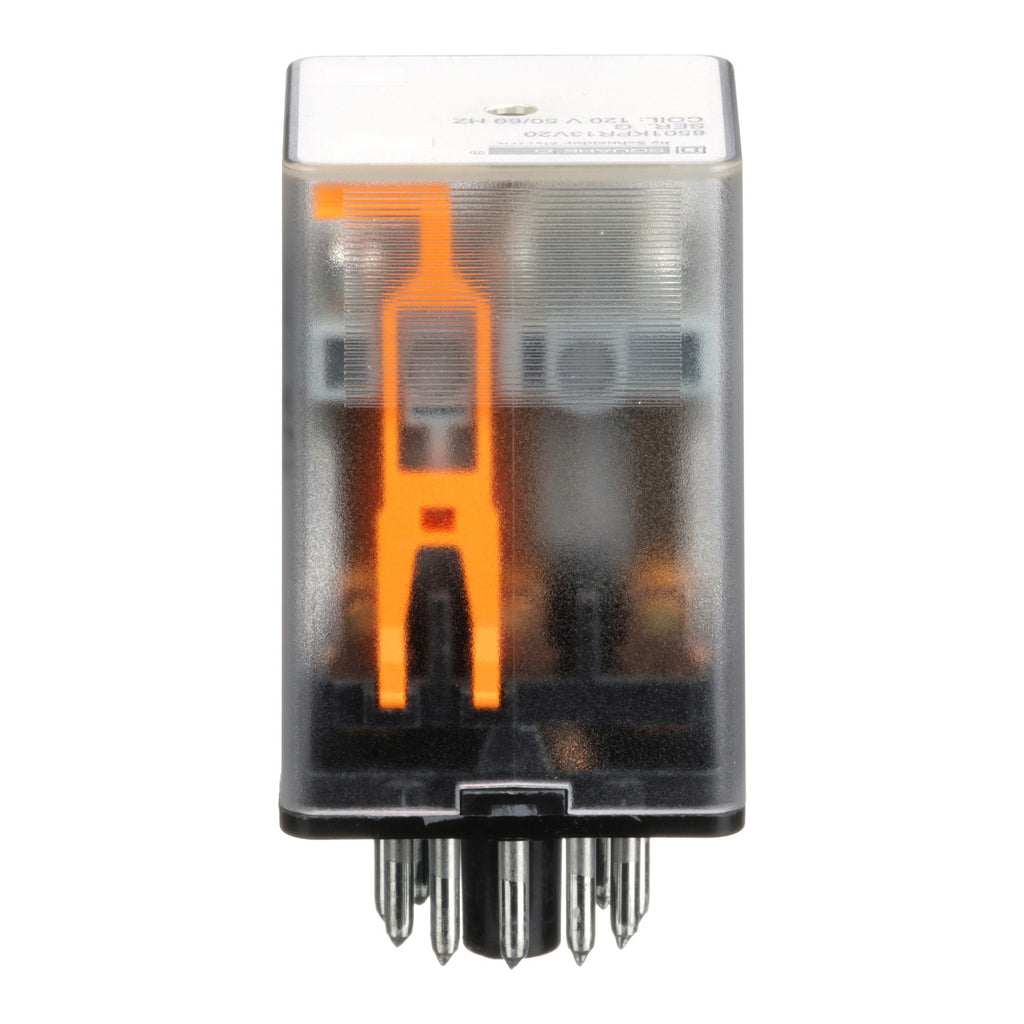

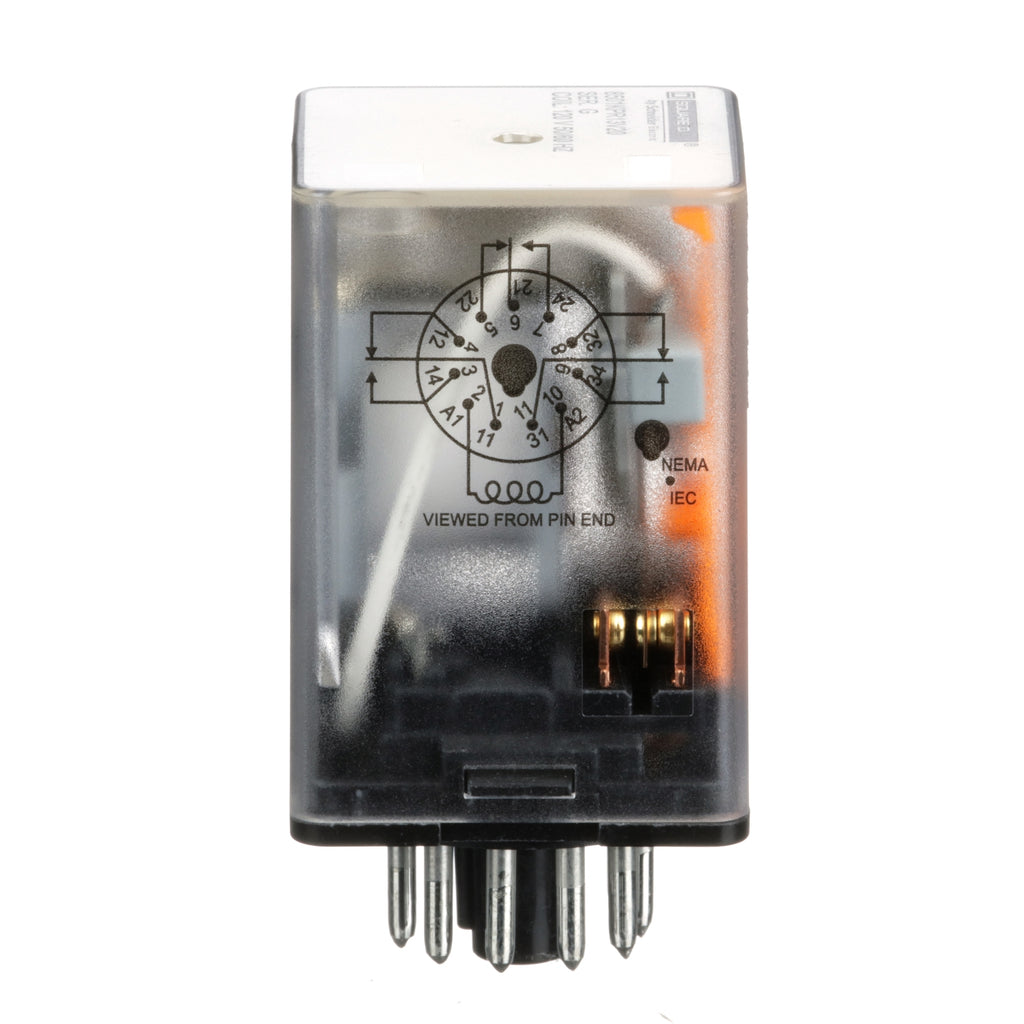

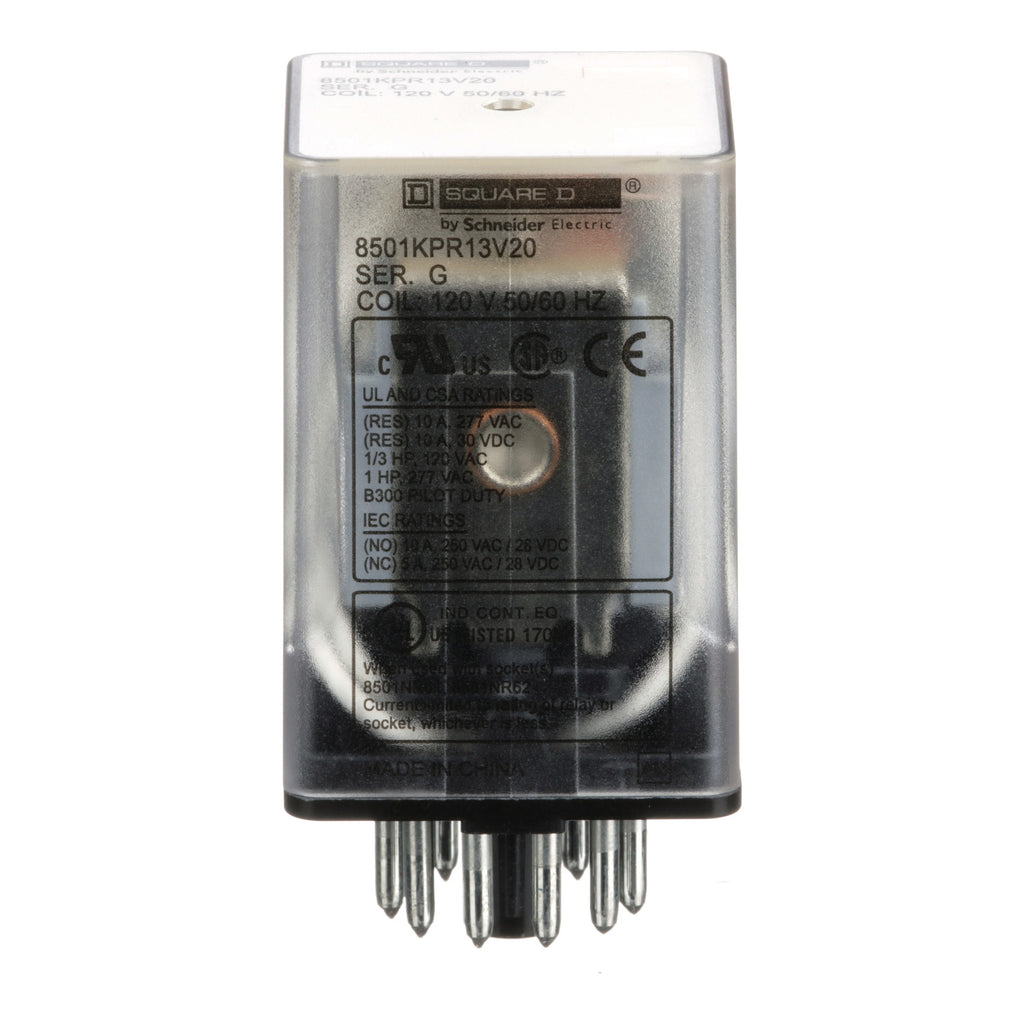

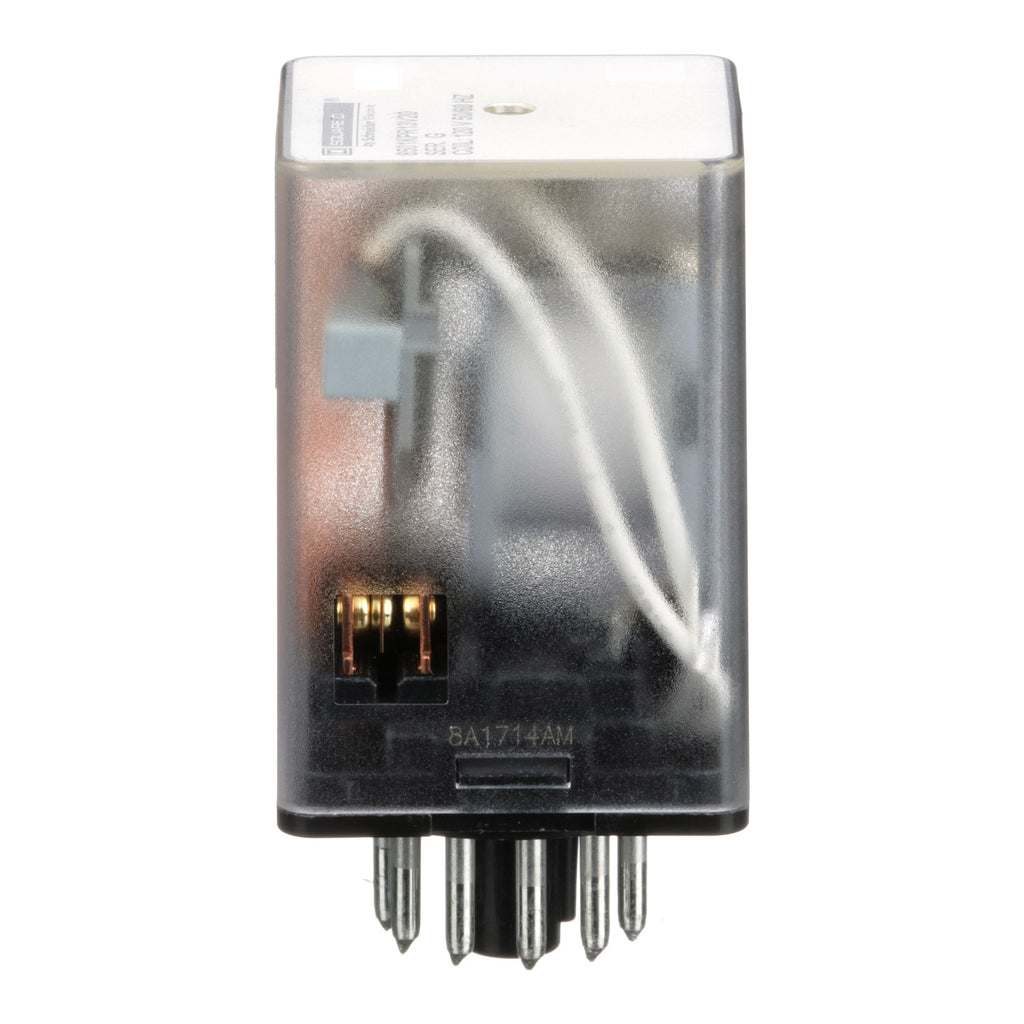

8501KPR13V20 is a Schneider Electric Square D plug-in relay designed for motor control applications with a 120 VAC coil and 3PDT contact configuration.
This tubular Type KP relay supports 1 HP motor rating at 277 VAC and 0.33 HP at 120 VAC. It features a 10 ampere contact rating at 277 VAC resistive and 10A at 28 VDC, with 3 poles double-throw (3PDT) contacts including 3 normally open and 3 normally closed contacts. The relay is suitable for AC or DC operation, has an 11-pin socket mount, and operates reliably in temperatures from -40°F to 131°F. It is UL 508 compliant for inductive control circuits with a 3 A breaking capacity at 120 VAC.
- Key Specifications
- Manufacturer: Schneider Electric Square D
- Part Number: 8501KPR13V20
- Coil Voltage: 120 VAC
- Contact Configuration: 3PDT (3 poles double-throw)
- Contact Rating: 10 A at 277 VAC resistive, 10 A at 28 VDC
- Horsepower Rating: 1 HP at 277 VAC, 0.33 HP at 120 VAC
- Mounting Type: Plug-in, 11-pin socket
- Interrupt Rating: 3 A at 120 VAC inductive per UL 508
- Operating Temperature: -40°F to 131°F
- Series/Frame: Type KP tubular relay
- Certifications: UL 508 compliant
- Part Number: 8501KPR13V20
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relays
- Family : Class 8501
- UPC : 785901219743
- Country of Origin : China
- Weight : 0.21
