8501KPDR12P14V53 - Square D 24VDC 10A DPDT Plug-In Relay 8-Pin LED Indicator

8501KPDR12P14V53

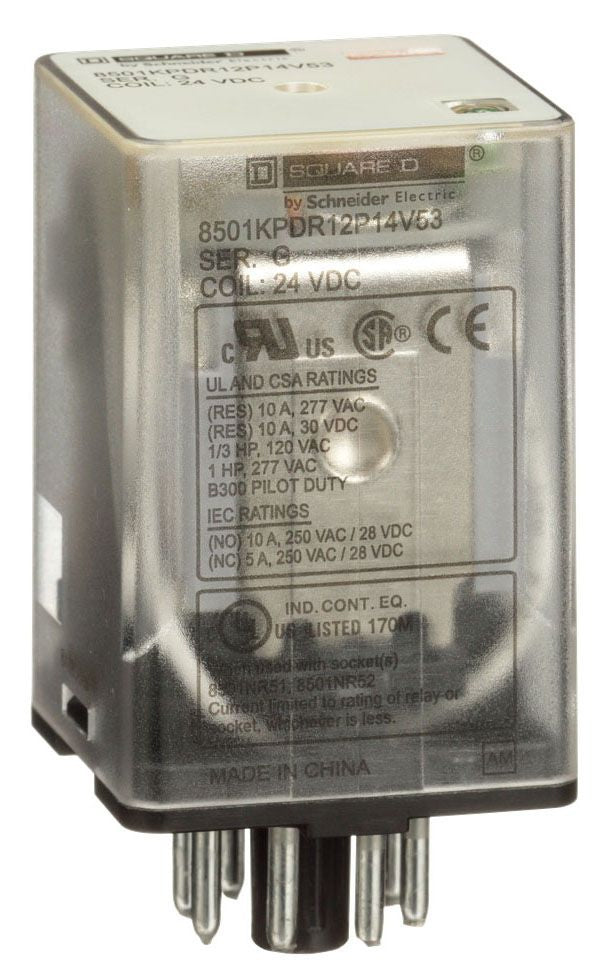

8501KPDR12P14V53 is a general purpose plug-in relay designed for reliable multipole switching applications in motor control and industrial environments. This Square D Harmony 8501K series relay features a DPDT contact configuration, 8-pin tubular mounting, and an integrated LED indicator for visual status confirmation. The relay is engineered for socket mounting and offers a 24 VDC coil voltage, supporting a 10 A resistive load at 120 VAC and 277 VAC, as well as 1 HP at 277 VAC and 0.33 HP at 120 VAC. It is suitable for use in control circuits up to 300 VAC and 30 VDC, with a fast operating time of 20 ms for both pick-up and drop-out. The contacts are constructed from silver alloy (AgNi) for durability and long life.

• Part Number: 8501KPDR12P14V53
• Manufacturer: Square D
• Series: Harmony 8501K
• Mounting Type: Socket
• Contact Configuration: DPDT (2 NO, 2 NC)
• Coil Voltage: 24 VDC
• Current Rating: 10 A resistive at 120 VAC, 277 VAC
• Horsepower Rating: 1 HP at 277 VAC, 0.33 HP at 120 VAC
• Maximum Switching Voltage: 300 VAC, 30 VDC
• Operating Time: 20 ms pick-up, 20 ms drop-out
• Indicator: LED for relay energized status
• Certifications: UL Listed, UL Recognized, CSA, RoHS, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501KPDR12P14V53
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : General purpose relay
• Family : 8501K 8501K Series

Product Data

• UPC : 785901348894
• GTIN : 785901348894
• Country of Origin : China
• Dimensions : 2.66 in H x 1.4 in W x 1.4 in D
• Weight : 0.2 lb
• Certification : CE Marked, CSA Certified, UL Listed
