8428-12 - 3M 12-Inch EPDM Rubber Cold Shrink Connector Insulator 1000V 8420 Series

8428-12

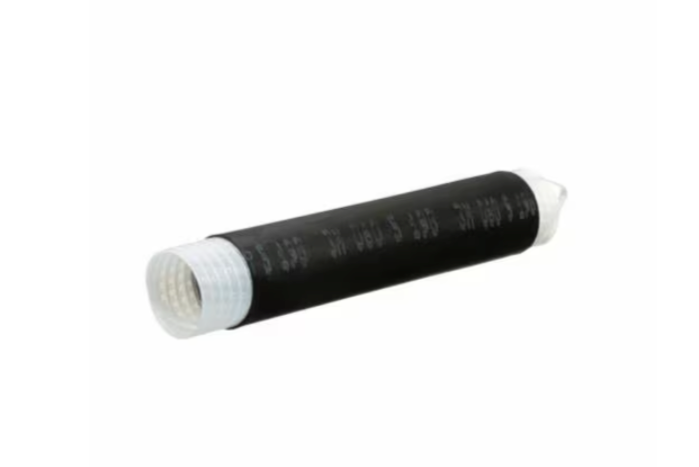

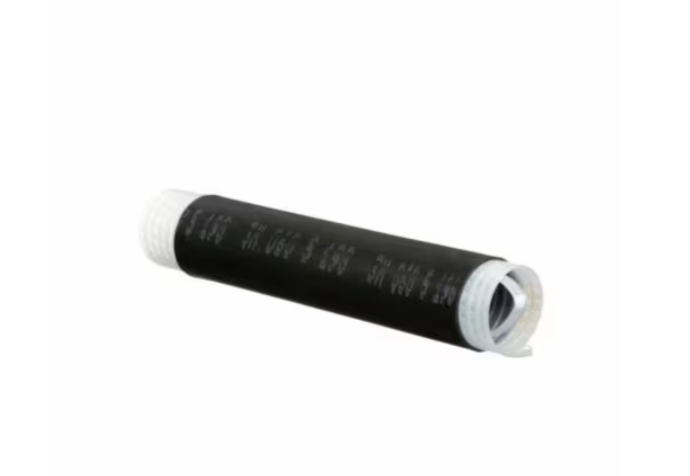

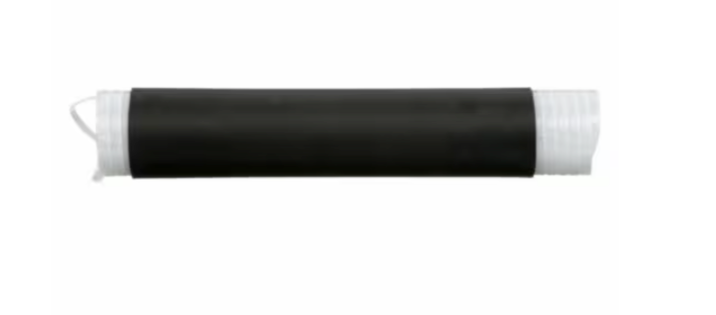

8428-12 is a 12-inch EPDM rubber cold shrink connector insulator from 3M's 8420 Series designed for primary insulation of solid dielectric insulated wires and cable splices rated up to 1000 volts.

This cold shrink insulator features simple, tool-free installation by removing the core after positioning over inline connectors or cable splices, forming a secure, water-resistant seal. It accommodates a wide range of cable sizes with a minimum cable diameter of 0.95 inches and maximum insulator diameter of 1.94 inches. The EPDM rubber material provides excellent thermal stability and prolonged resiliency, suitable for indoor and outdoor applications with operating temperatures from -40°F to 194°F (-40°C to 90°C). It is flame-retardant and ideal for insulating secondary splices, direct-buried or submersible repairs, and physical protection of connectors or lugs.

• Manufacturer: 3M
• Part Number: 8428-12
• Series: 8420 Cold Shrink
• Material: EPDM Rubber
• Length: 12 inches (305 mm)
• Voltage Rating: 1000 volts
• Minimum Cable Diameter: 0.95 inches (24.1 mm)
• Maximum Insulator Diameter: 1.94 inches (49.2 mm)
• Conductor Size Range: Up to 800 MCM
• Operating Temperature: -40°F to 194°F (-40°C to 90°C)
• Flame-Retardant
• Tool-Free Installation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

500-800 kcmil

Specifications

• Part Number: 8428-12
• Manufacturer : 3M
• Brand : 3M
• Category : Wiring Devices
• Item Subcategory : Cable Management
• Section : Sleeves & Tubing

Product Data

• UPC : 054007090564
• GTIN : 00054007090564
• Country of Origin : United States
• Dimensions : 0.949 in x 1.937 in x 24.1 mm
• Weight : 5.5 lb
• Certification : ANSI C119.1
