Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
83TEL150

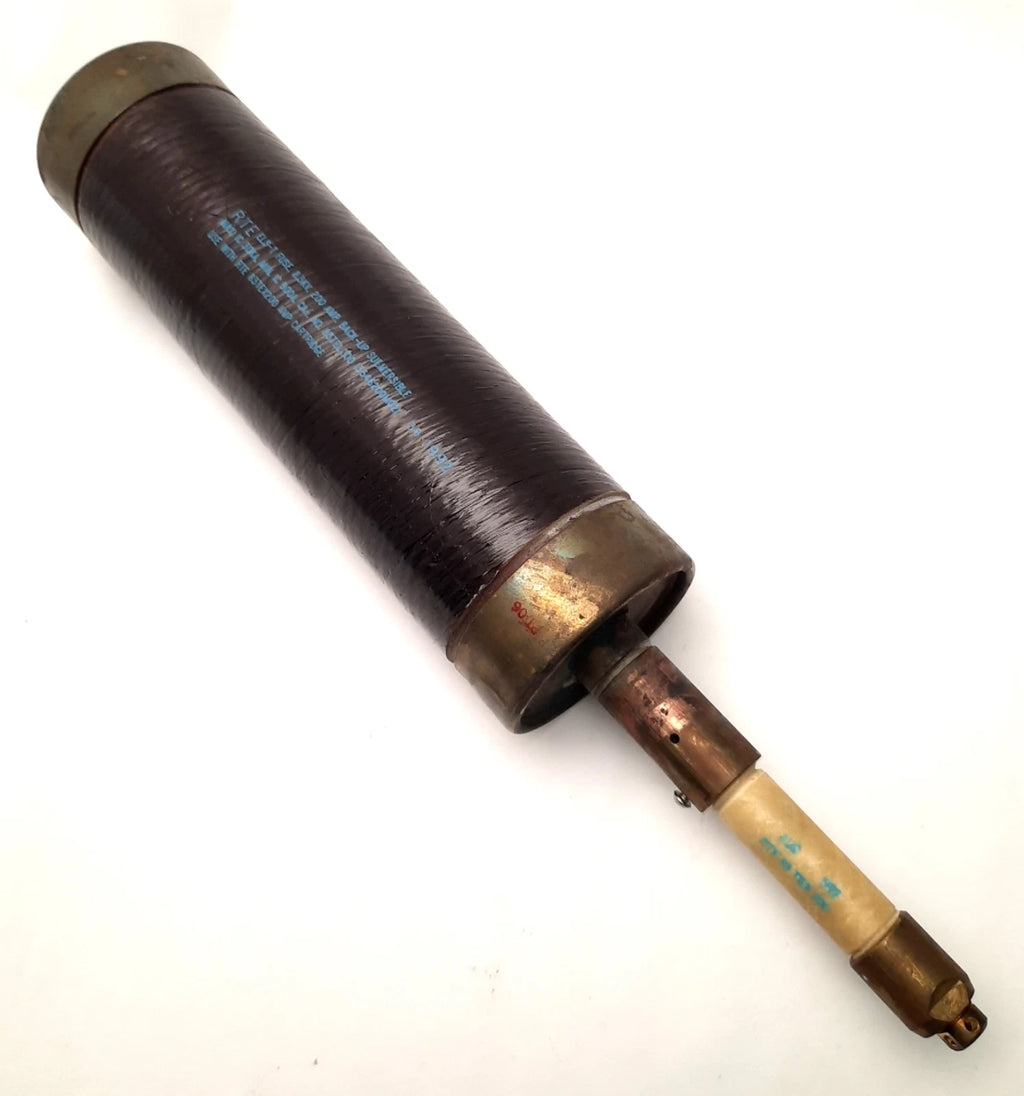

83TEL150 is an Eaton 150-ampere, 8.3 kilovolt E-rated medium voltage fuse designed for feeder circuit, switchgear, and transformer protection applications. This fuse meets ANSI C37.46 performance standards and is UL listed under Guide JEEG. The E-rating designation indicates a calibrated current-responsive element that will melt in 300 seconds at an RMS current within the range of 200% to 240% of the fuse's 150-ampere nameplate rating, providing reliable time-delay protection for medium voltage power distribution systems.
- Amperage Rating: 150A
- Voltage Rating: 8.3 kV
- E-Rated Time-Delay Fuse
- ANSI C37.46 Compliant
- UL Listed, Guide JEEG
- Melting Time: 300 seconds at 200-240% of rated current
- Medium Voltage Circuit Protection
- Switchgear and Transformer Protection
Specifications
- Part Number: 83TEL150
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 8300
- Amperage : 150
- Connection : Special
- Diameter : 3.5
- Barrels : 1
Product Data
- Weight : 11
