Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
83F050-IVBTB

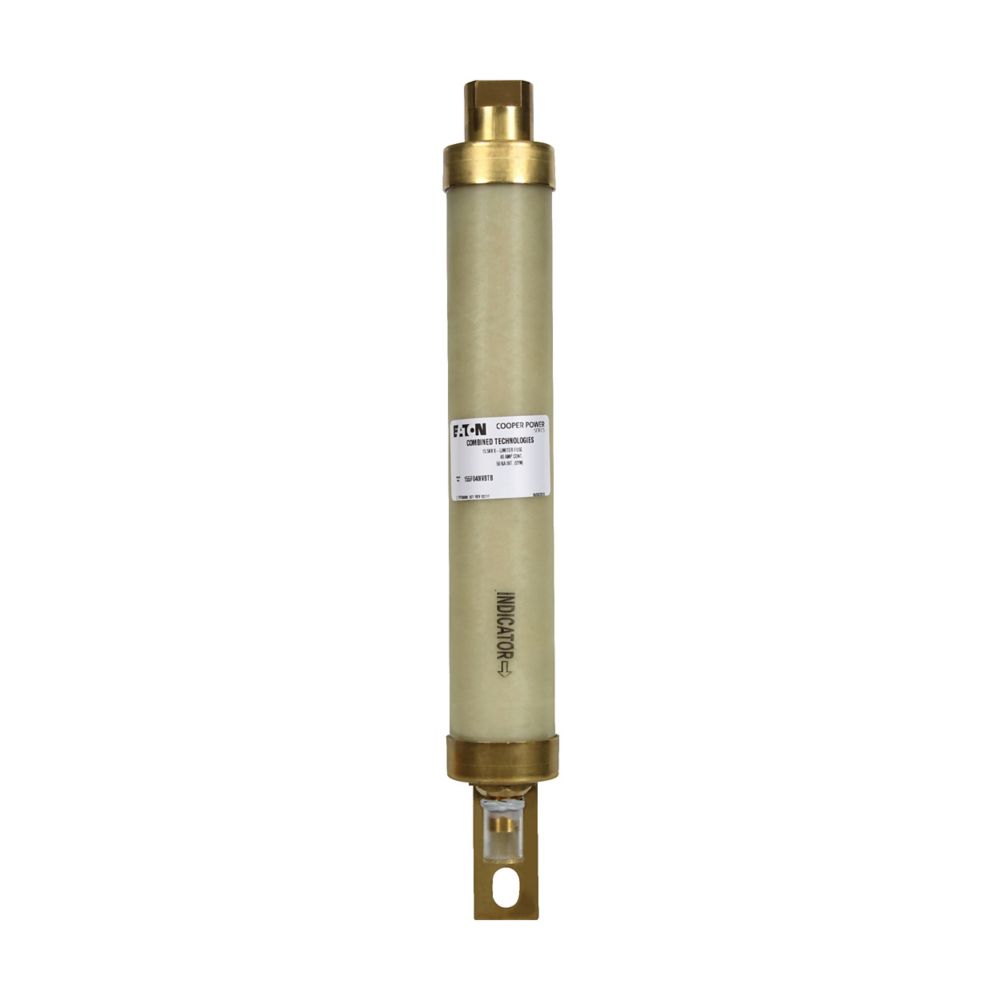

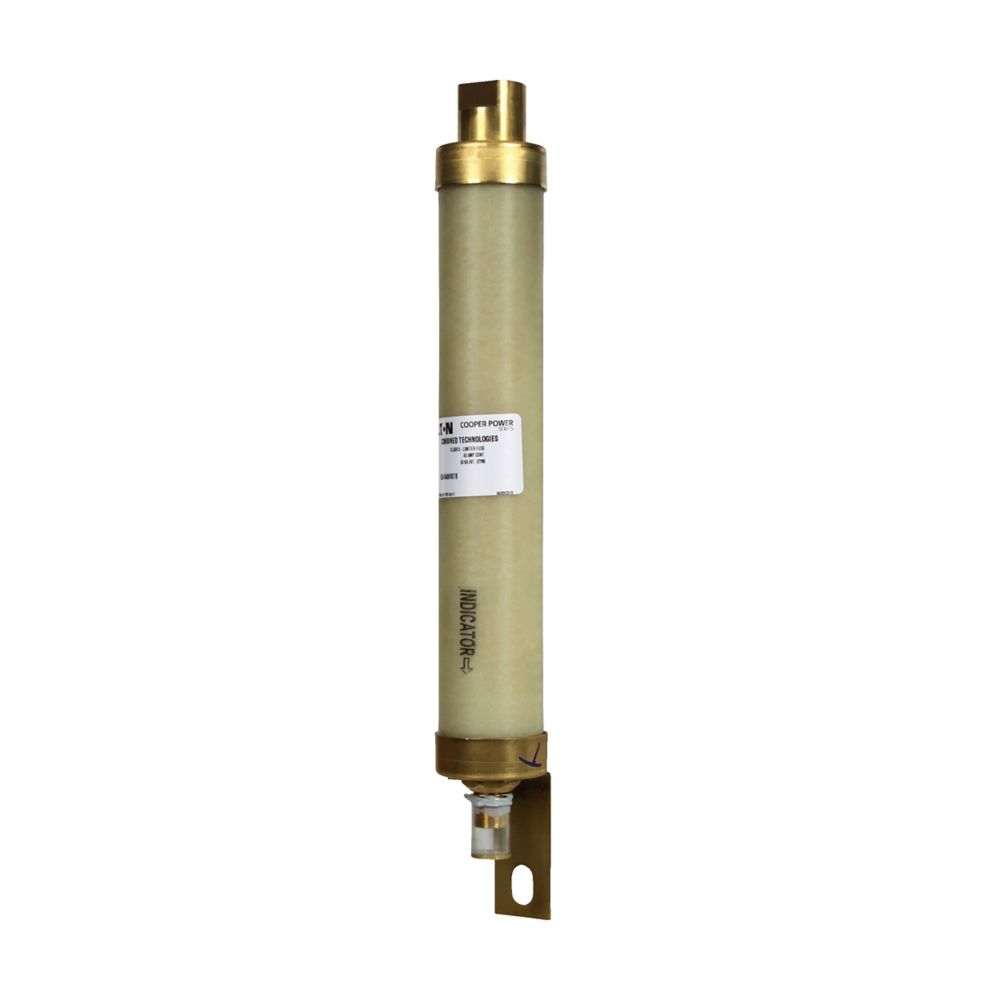

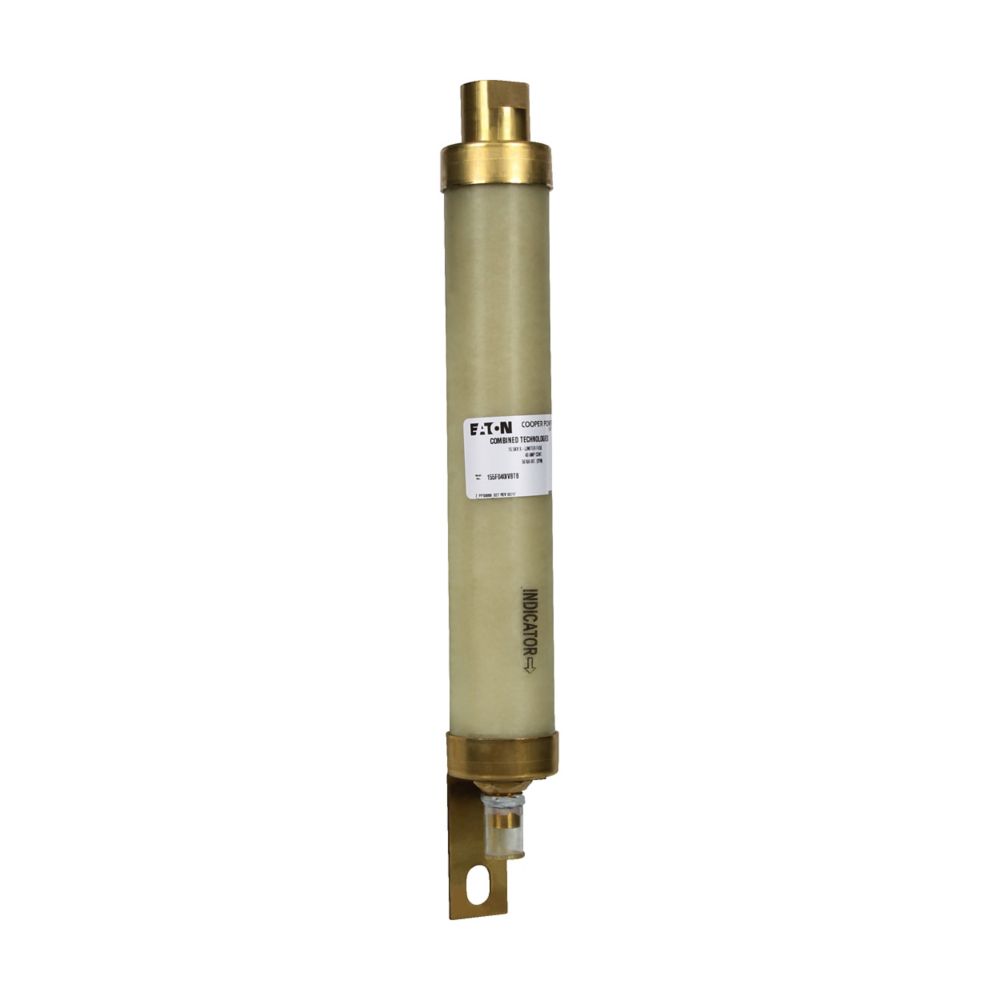

83F050-IVBTB is an Eaton direct-connected capacitor fuse designed for medium voltage power distribution applications.
This fuse features a 50 ampere rating and an 8.3 kV voltage rating with a BTB design for direct connection to capacitor bushings. It includes a bolt tab contact and requires a 1/2-13 UNC jam nut for mounting. The fuse has a red fuse indicator to show blown status and is engineered for reliable interrupting performance in capacitor bank protection. Installation requires torque specifications of 400 inch-pounds for brass studs and 290 inch-pounds for aluminum studs, with caution not to loosen the jam nut after tightening.
- Key Specifications
- Amperage: 50 A
- Voltage Rating: 8.3 kV
- Fuse Type: Direct-Connected Capacitor Fuse
- Design: BTB
- Mounting: 1/2-13 UNC jam nut (not included)
- Fuse Indicator: Red blown fuse indicator
- Torque: 400 in-lbs for brass studs, 290 in-lbs for aluminum studs
- Manufacturer: Eaton
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 83F050-IVBTB
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting capacitor fuse
- Voltage : 8300
- Amperage : 50
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- UPC : 194006047296
- Weight : 6.4
