Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
83F040-IVBTB

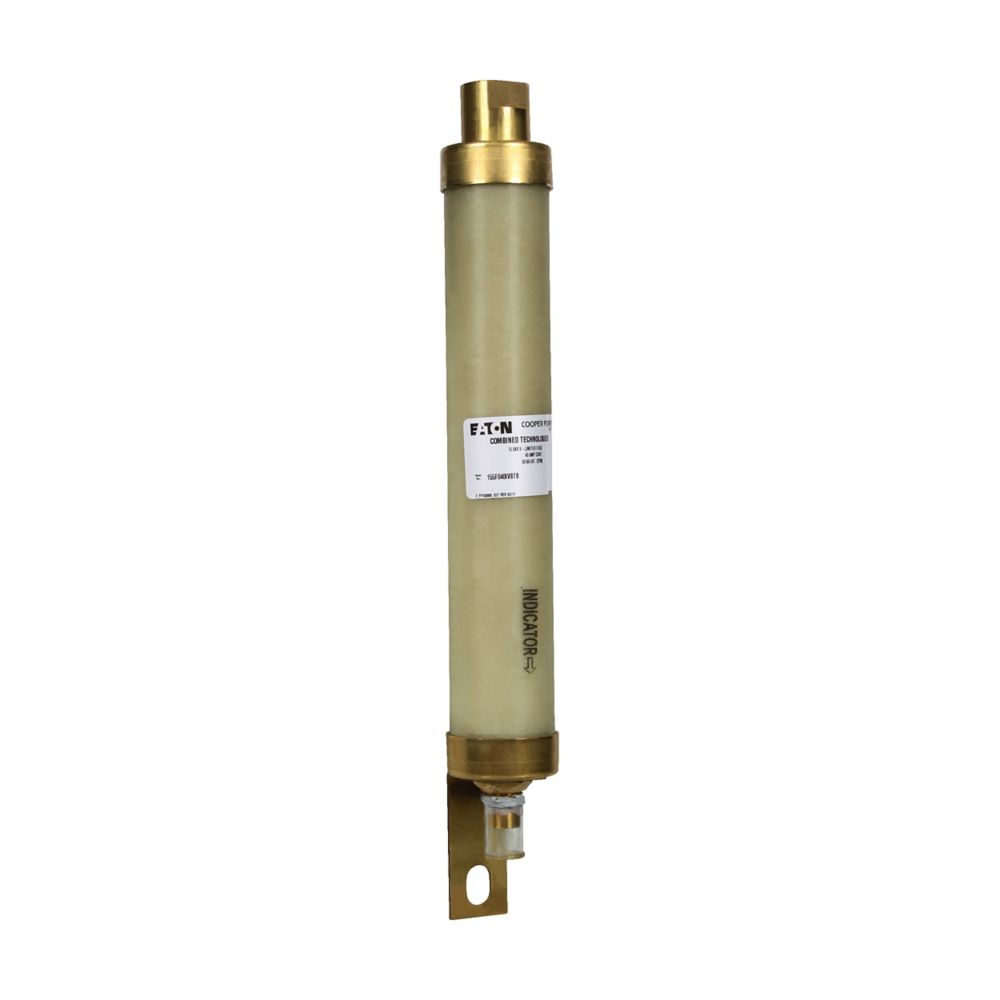

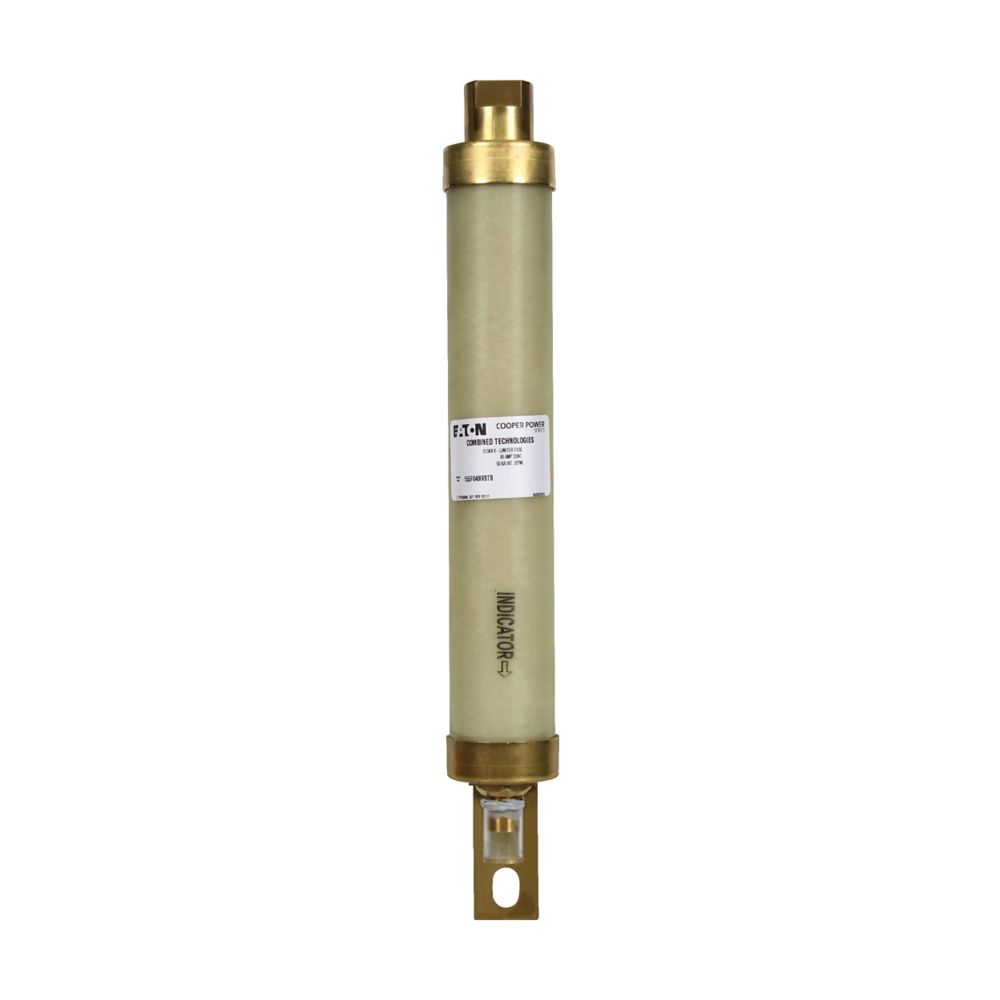

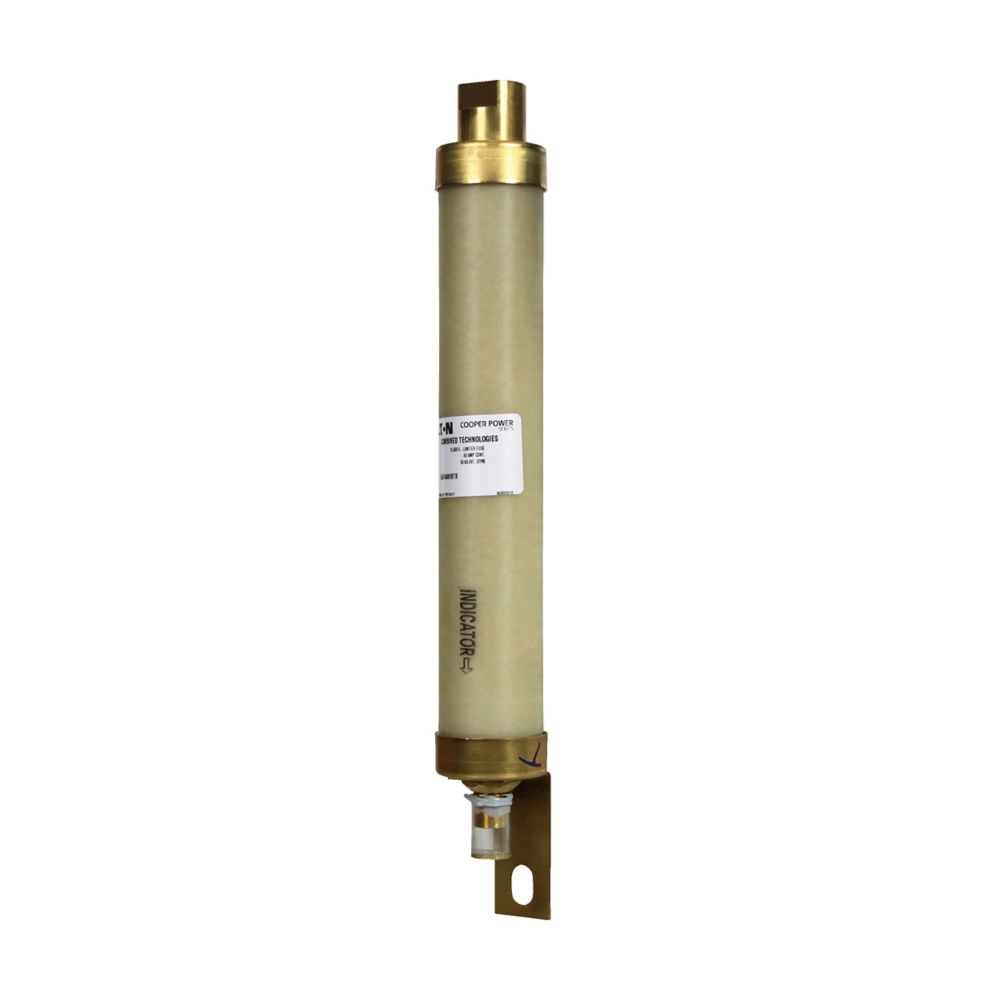

83F040-IVBTB is an Eaton Cooper Power series direct-connected capacitor fuse designed for indoor use with a 40 ampere rating and 8.3 kV voltage class.This fuse features a BTB design with a bolt tab contact and is intended for direct connection to capacitor bushings. It provides current-limiting protection with a maximum interrupting rating of 50 kA. The fuse is part of Eaton's Distribution C series and is engineered to meet safe zone tank rupture curves for medium voltage capacitors.
- Key Specifications
- Amperage: 40 A
- Voltage Rating: 8.3 kV
- Design: BTB direct-connected capacitor fuse
- Interrupt Rating: 50 kA maximum
- Mounting: Bolt tab contact with 1/2-13 UNC thread
- Series: Cooper Power Distribution C
- Indoor use
- Dimensions: Approximately 6.75 inches length, 2.13 inch diameter
- Part Number: 83F040-IVBTB
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting capacitor fuse
- Voltage : 8300
- Amperage : 40
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
- UPC : 194006042284
- Dimensions : 11.4 in x 2.2 in x 2.1 in (Length/Depth x Height x Width)
- Weight : 2.646
