Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
83F025-IVBTB

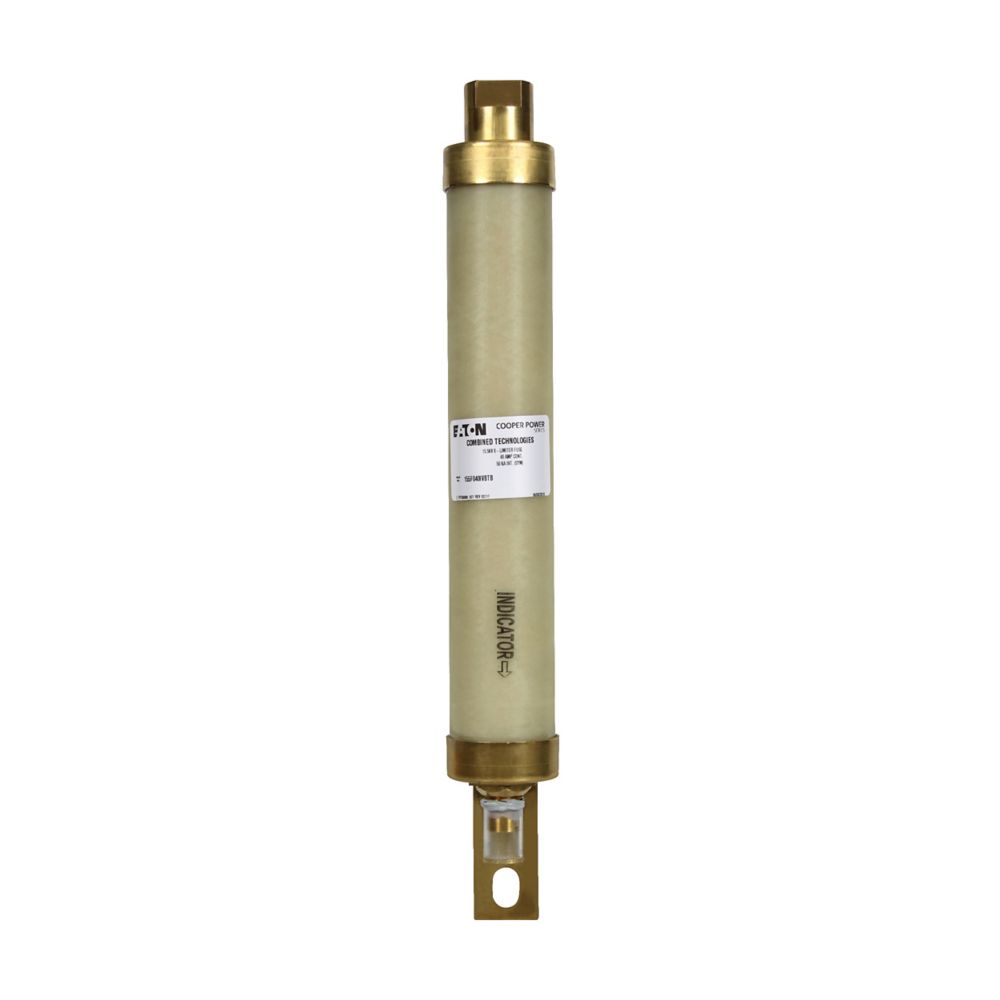

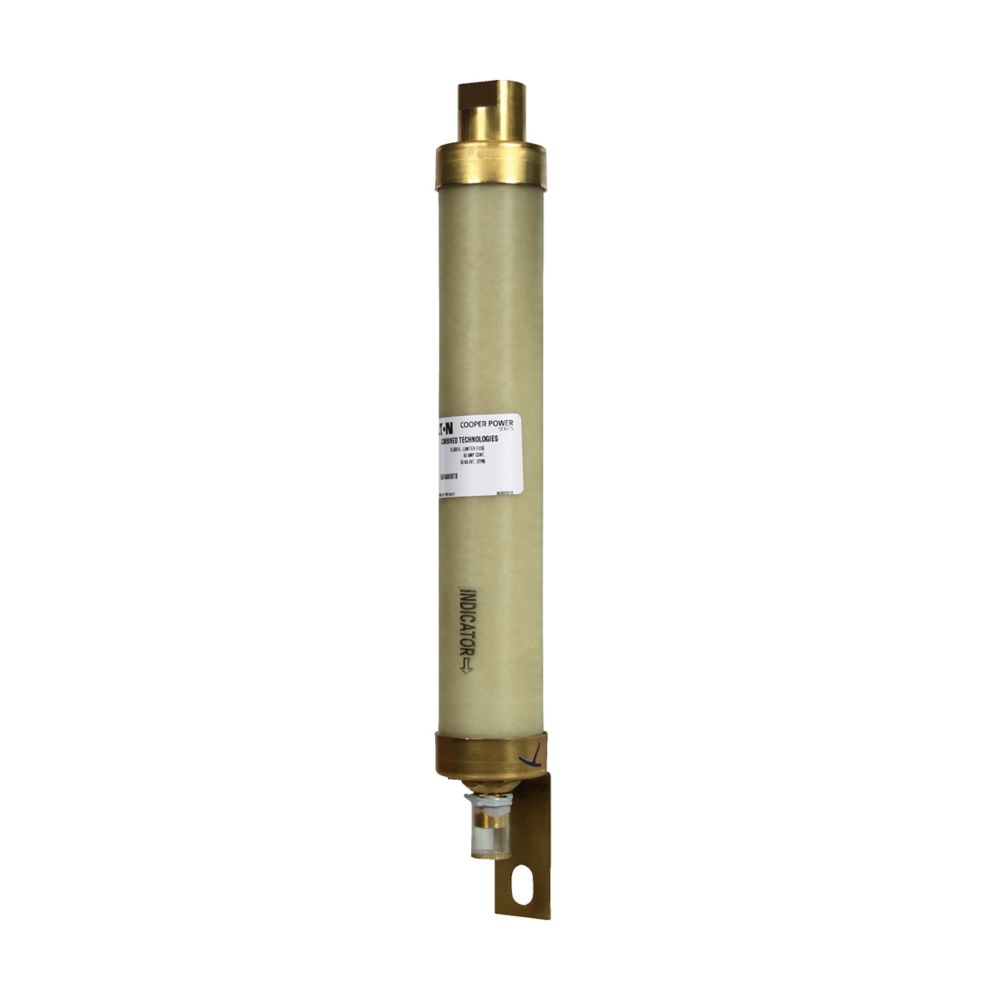

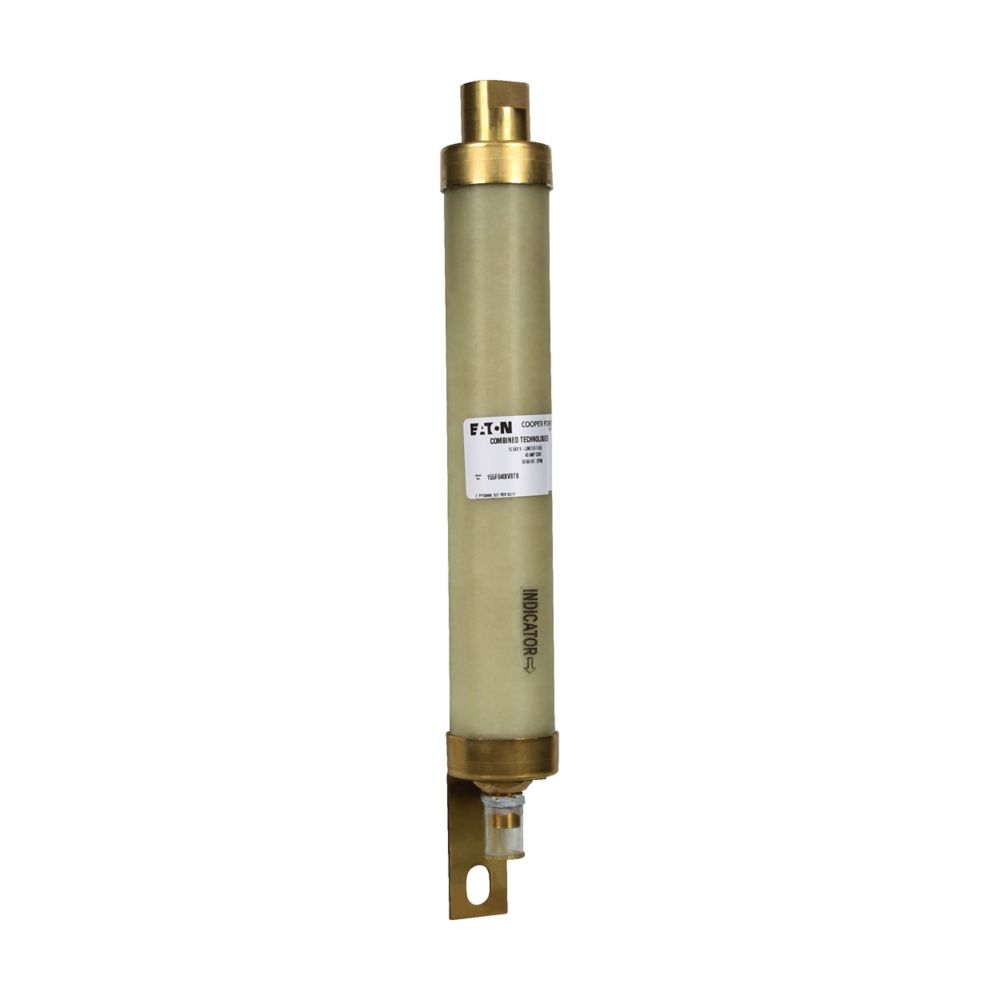

83F025-IVBTB is an Eaton Cooper Power series direct-connected capacitor fuse designed for medium-voltage power distribution applications. This current-limiting fuse provides reliable protection in indoor installations with a compact, bolt-tab design for secure mounting on capacitor bushings.Key Specifications
- Manufacturer: Eaton Corporation
- Current Rating: 25 Amperes
- Voltage Rating: 8.3 kV
- Maximum Interrupt Current: 50 kA
- Design Type: BTB (Direct-Connected Capacitor Fuse)
- Mounting: Bolt-tab direct connection to capacitor bushing
- Diameter: 2.13 inches (54 mm)
- Installation: Use 1/2-13 jam nut; tighten to 175 inch-pounds for upper hardware
- Indicator: Red fuse indicator shows blown position
- Operating Temperature: No derating required below 100 degrees Celsius
Specifications
- Part Number: 83F025-IVBTB
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting capacitor fuse
- Voltage : 8300
- Amperage : 25
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- UPC : 194006041294
- Dimensions : 11.4 in x 2.2 in x 2.1 in (Length/Depth x Height x Width)
- Weight : 8.818
