Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
83F012-I

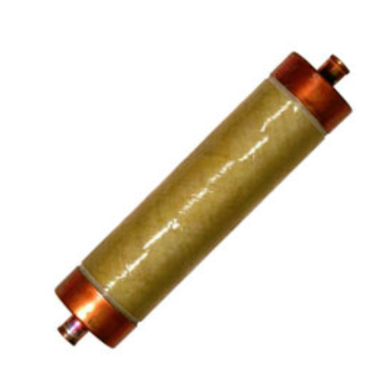

83F012-I is an Eaton X-Limiter clip mount current-limiting fuse designed for medium voltage power distribution protection.This fuse features a 12 amp continuous current rating and an 8.3 kV maximum design voltage, suitable for clip mounting in electrical enclosures. It provides full-range current limiting with a maximum interrupting current of 50,000 A rms symmetrical. The fuse includes an optional blown-fuse indicator for easy status identification and meets ANSI and IEEE standard design requirements for power and distribution-class fuses.
- Manufacturer: Eaton
- Part Number: 83F012-I
- Fuse Type: X-Limiter clip mount current-limiting fuse
- Continuous Current Rating: 12 Amps
- Maximum Design Voltage: 8.3 kV
- Maximum Interrupting Current: 50,000 A rms symmetrical
- Mounting Type: Clip mount
- Optional Blown Fuse Indicator
- Standards: ANSI and IEEE compliant
Specifications
- Part Number: 83F012-I
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 8300
- Amperage : 12
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 3
