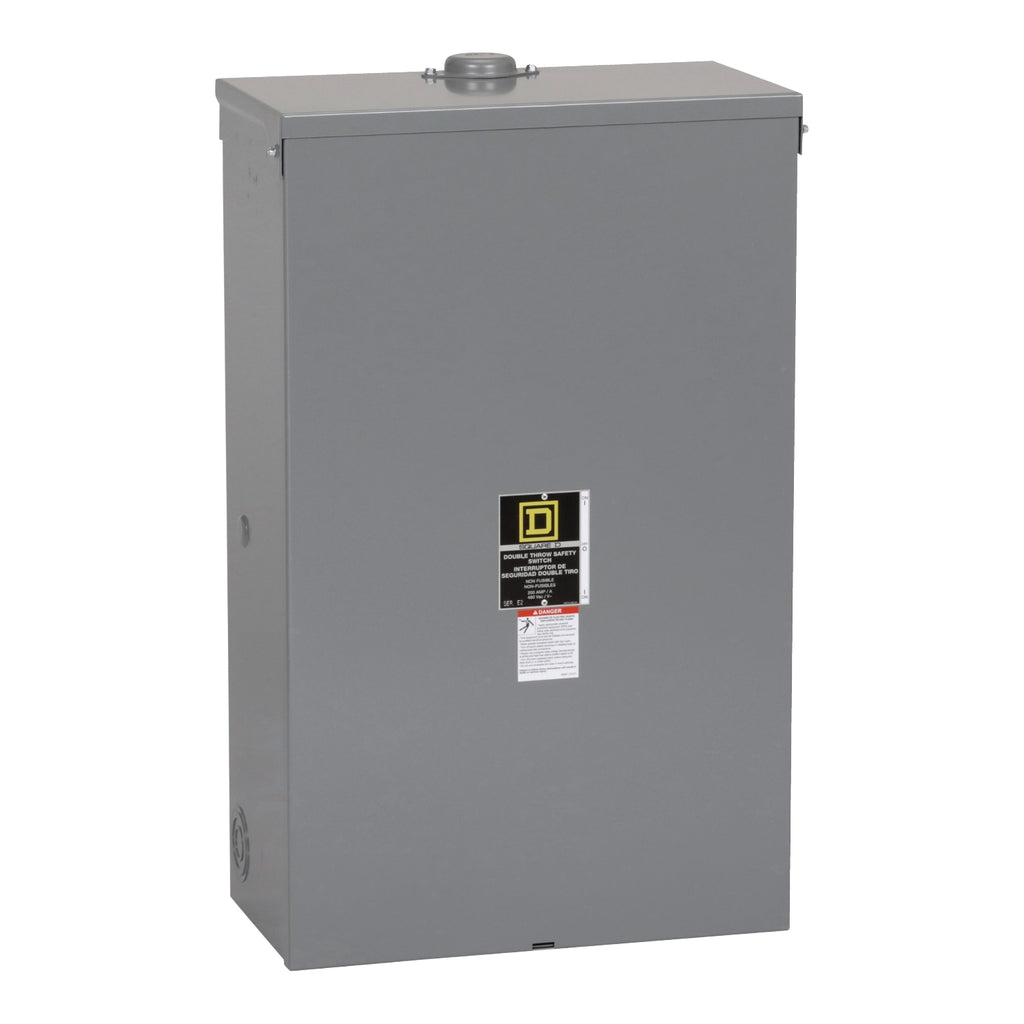

82344RB - Square D 200A 600V 3-Pole Double Throw Non-Fusible Safety Switch NEMA 3R

82344RB

82344RB is a Square D 200 Amp, 600 Volt, 3-pole double throw non-fusible safety switch with a NEMA 3R galvanized steel enclosure.This switch features a surface mount design suitable for indoor/outdoor use with rainproof, sleet and ice proof protection. It has a quick make, quick break operating mechanism with visible blade switches for positive OFF indication. Rated for 200A continuous current and 600V AC voltage, it supports 3-phase power and is UL approved. The switch is designed for service entrance equipment with a durable galvannealed steel enclosure and a 100kA interrupt rating.

Key Specifications
• Amperage Rating: 200 A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Type: Double Throw Non-Fusible
• Enclosure Type: NEMA 3R Galvannealed Steel
• Mounting Type: Surface Mount
• Interrupt Rating: 100 kA
• Dimensions: 24 in W x 10.63 in D x 32.5 in H
• Phase: 3
• UL Listed
• Suitable for Service Entrance

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 82344RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : 823
• Voltage : 480 AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@600V
• Fuse Class : H, J
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : PLP

Product Data

• UPC : 78590145381
• GTIN : 00785901453819
• Country of Origin : Mexico
• Dimensions : 32.5 in (825.5 mm) x 24 in (609.6 mm) x 10.63 in (270.002 mm) (Height x Width x Depth)
• Weight : 75.081
• Certification : UL listed
