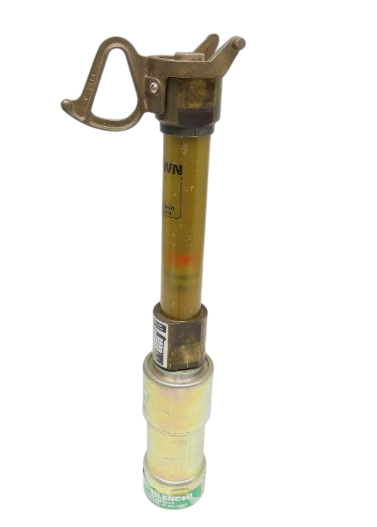

820025 - S&C Electric 200E SM-4 Power Fuse, 200 Amperes, 14.4 kV, Outdoor Distribution

820025

820025 is a 200E SM-4 Power Fuse from S&C Electric designed for outdoor distribution applications at 14.4 kV nominal voltage.This fuse is rated for 200 amperes continuous current and provides fast, positive fault interruption using high-speed elongation of the arc in a solid-material-lined bore. It is suitable for use in SM-4 fuse holders and offers an interrupting rating of 12,500 amperes RMS symmetrical at 14.4 kV nominal voltage. The fuse includes a Uni-Rupter interrupter and is designed for reliable operation on solidly grounded-neutral systems.

Key Specifications
• Part Number: 820025
• Manufacturer: S&C Electric
• Fuse Type: SM-4 Power Fuse
• Continuous Current Rating: 200 Amperes
• Nominal Voltage: 14.4 kV
• Interrupting Rating: 12,500 Amperes RMS symmetrical
• Mounting: Outdoor distribution fuse mounting (SM-4 holder compatible)
• Fuse Speed: 200E
• Application: Outdoor distribution and substation use
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 820025
• Manufacturer : S&C Electric
• Brand : S&C Electric
• Category : Fuse
• Item Subcategory : Medium Voltage
• Type : SMU-40
• Voltage : 4800
• Amperage : 25
• Class Rating : SMU-40
• Velocity : Standard



Product Data

• Weight : 0.6
