Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

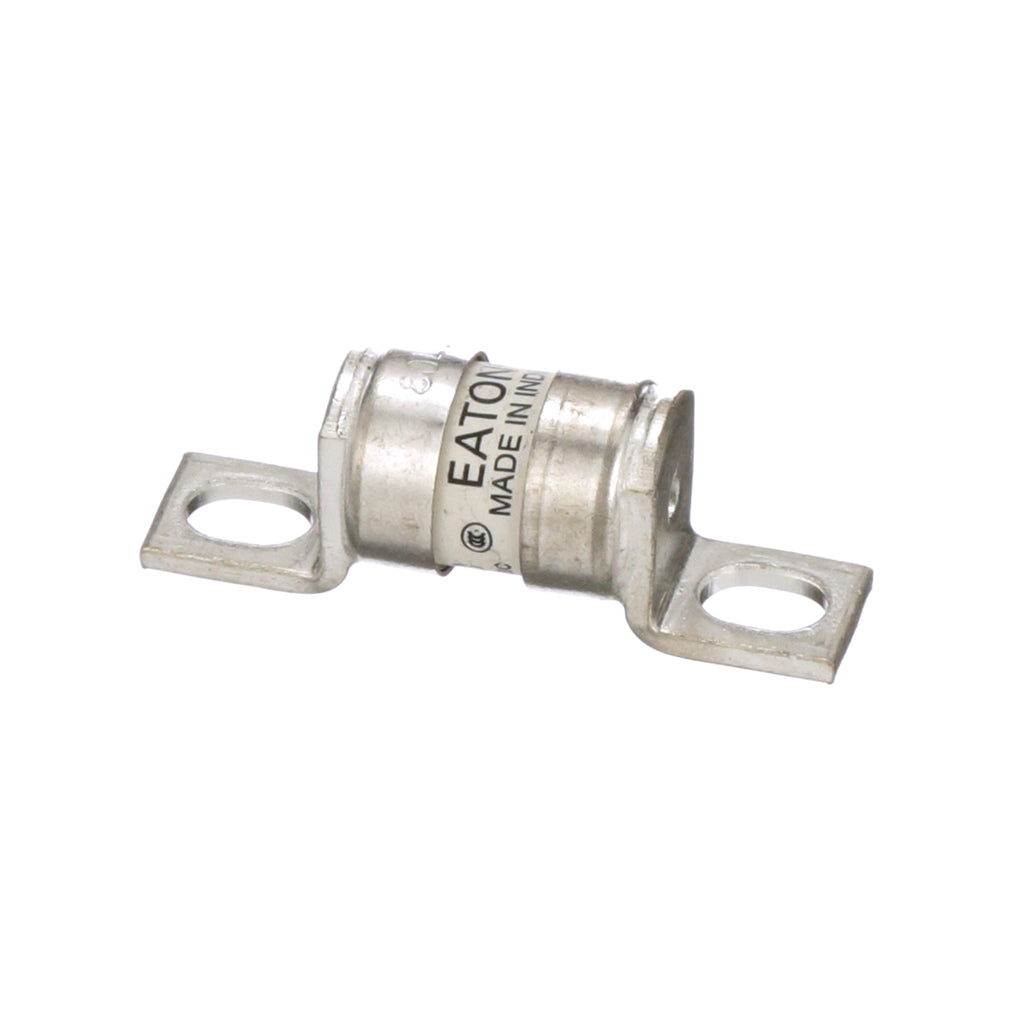

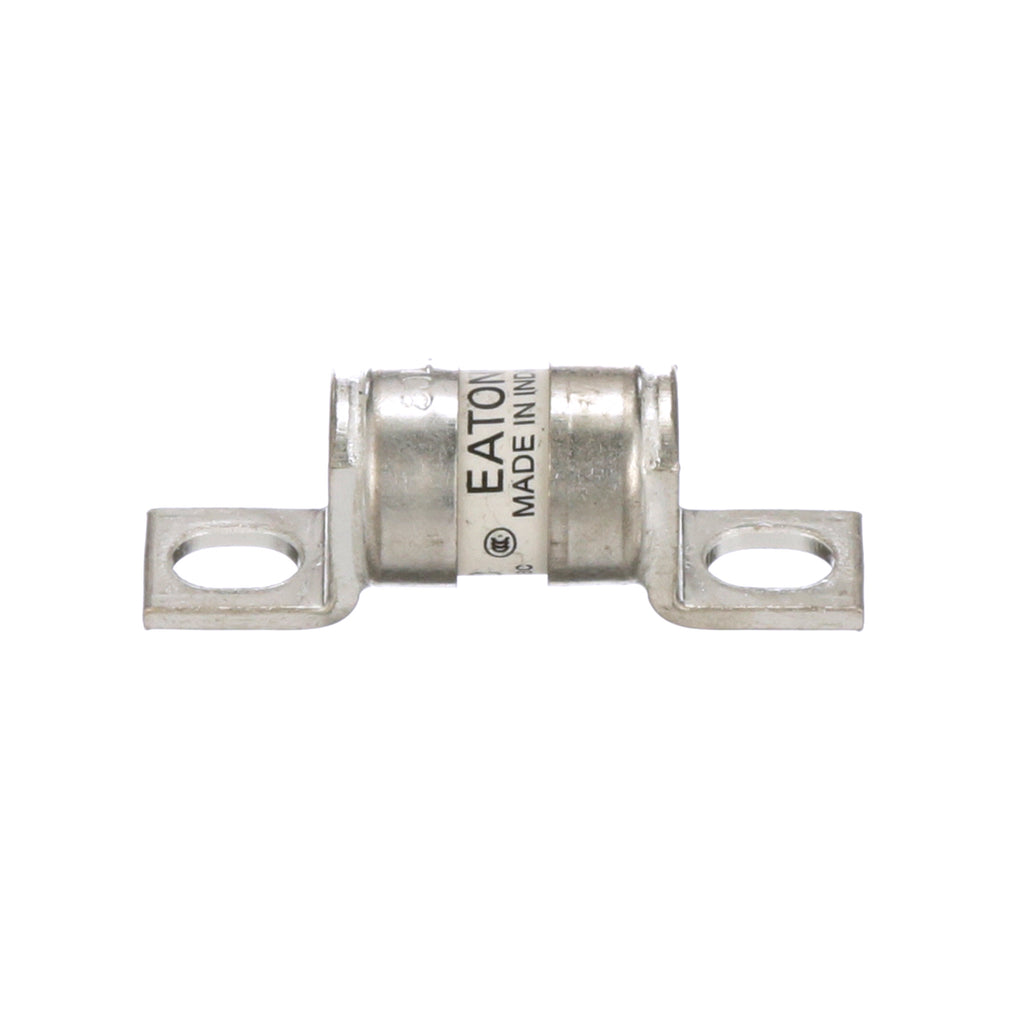

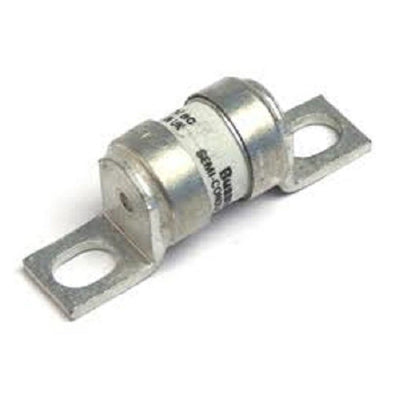

80LET
80LET is an Eaton Bussmann series high speed British standard fuse rated at 80 amps and suitable for 280 VAC and 150 VDC applications.80LET features a Class aR rating with a high interrupt rating of 200 kA RMS Symmetrical AC and 50 kA DC at 150 VDC, designed for semiconductor protection and power converters. It is a bolt mount cartridge fuse compliant with BS88 part 4 and IEC 60269-4 standards, RoHS compliant, and UL recognized.
- Key Specifications
- Amperage: 80 A
- Voltage Rating AC: 280 VAC
- Voltage Rating DC: 150 VDC
- Interrupt Rating: 200 kA RMS Sym AC, 50 kA DC at 150 VDC
- Fuse Class: aR
- Mounting Type: Bolt Mount
- Fuse Type: Cartridge, High Speed
- Compliance: CE Marked, RoHS Compliant, UL Recognized
- Standards: BS88 part 4, IEC 60269-4
- Dimensions: 55 mm length, 18 mm diameter
- Application: Semiconductor, DC common bus, DC drives, power converters/rectifiers
Specifications
- Part Number: 80LET
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : BS 88
- Type : LET
- Voltage : 240
- Connection : Stud
Product Data
- UPC : 05171283804
- GTIN : 00051712838047
- Country of Origin : India
- Dimensions : 55 mm x 18 mm x 18 mm (Length/Depth x Height x Width)
- Weight : 0.0736
- Certification : UL, CE
