Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Motor Control Part And Accessory
Description
802TCP

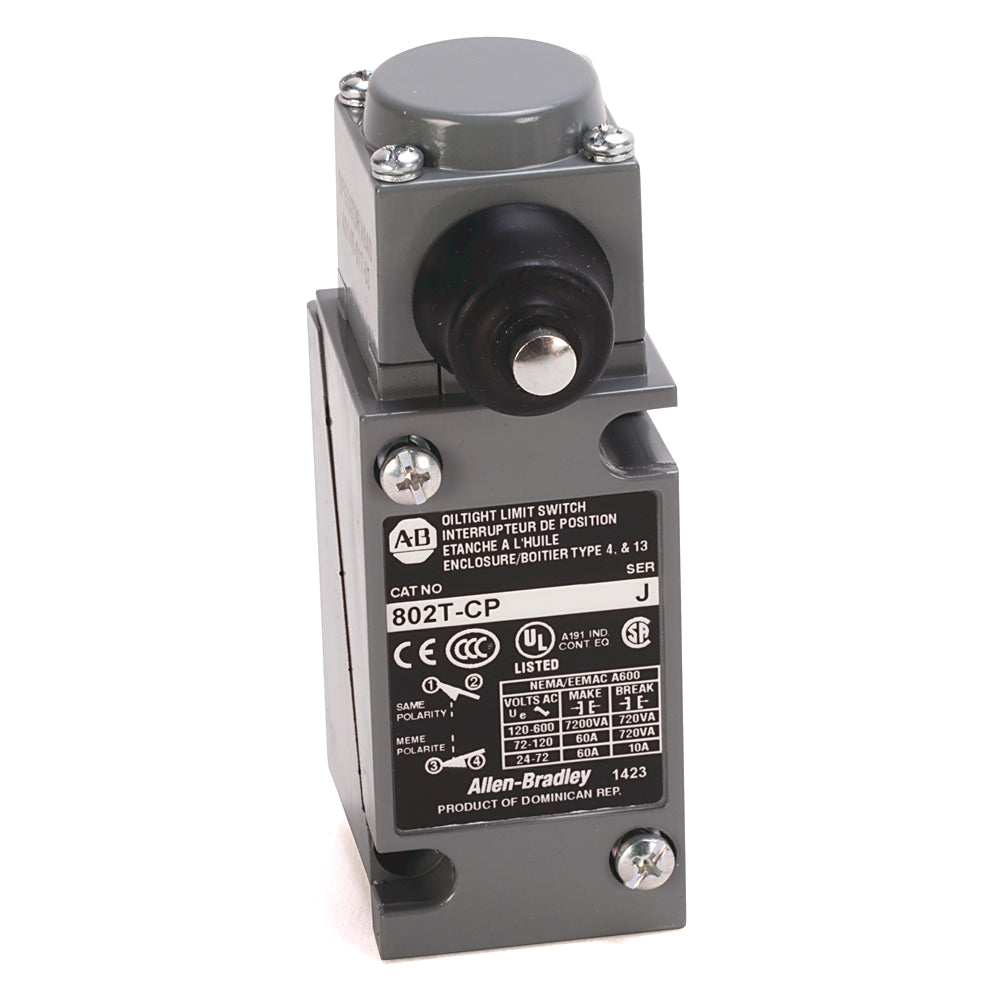

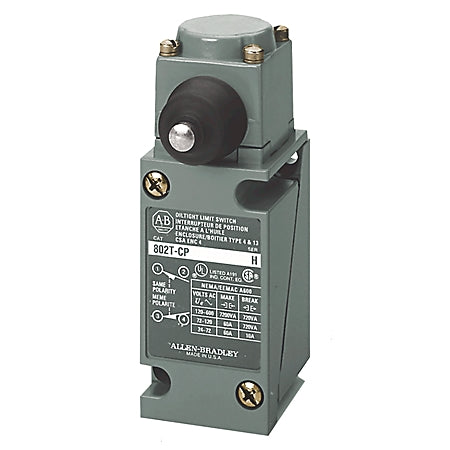

802TCP is an Allen-Bradley 802T plug-in oiltight limit switch featuring a side push rod actuator and snap-acting contacts for reliable operation in industrial environments. This metal-bodied switch is designed for standard mounting and offers a robust solution for machine control applications. The 802TCP provides a 2-pole configuration with one normally open and one normally closed contact, rated for 6 A at 125 VAC, 3 A at 230 VAC, 3 A at 125 VDC, and 1.5 A at 230 VDC. It features a spring return action, standard operating torque, and a travel of 3.3 mm to operate and 1.3 mm to reset. The switch is rated for NEMA 4 enclosures and is certified to UL, CSA, CE, and KC standards.
- Part Number: 802TCP
- Manufacturer: Allen-Bradley
- Series: 802T
- Poles: 2
- Mounting Type: Standard NEMA Style
- Actuator: Side Push Rod
- Action: Snap Acting, Spring Return
- Contact Configuration: 1 NO, 1 NC
- Amperage: 6 A @ 125 VAC, 3 A @ 230 VAC, 3 A @ 125 VDC, 1.5 A @ 230 VDC
- Voltage Rating: 125/230 VAC, 125/230 VDC
- Enclosure: Metal, NEMA 4
- Certifications: UL, CSA, CE, KC
Specifications
- Part Number: 802TCP
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Compatible Frames : TED
Product Data
- UPC : 66246807974
- Weight : 5.19
