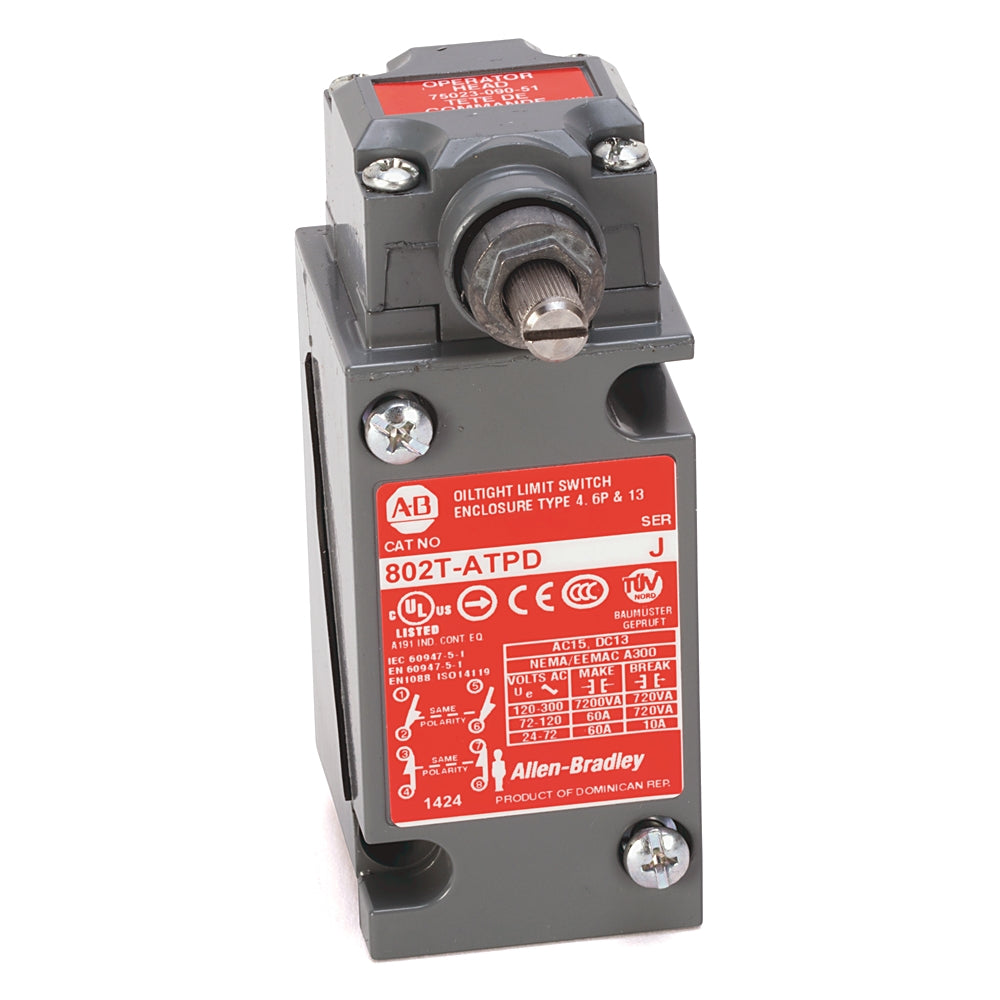

802TATPD - Allen-Bradley 10 Amp 600 VAC 4-Circuit Plug-In Oiltight Limit Switch with Rotary Lever Arm

802TATPD

802TATPD is an Allen-Bradley 4-circuit plug-in oiltight limit switch designed for motor control applications with a rotary lever arm actuator.This limit switch features a 10 Amp current rating at 600 VAC, 90 degrees maximum travel, and snap-acting contacts with spring return lever type actuation. It supports clockwise and counterclockwise operation and is constructed for oiltight environments, meeting NEMA Type 4 and 13 standards. The device is suitable for safety and control-reliability applications with a torque to operate contacts of 0.45 N-m and is UL listed and CSA certified.

Key Specifications
• Amperage: 10 Amp at 600 VAC
• Voltage Rating: 600 VAC, 24 VDC
• Number of Circuits: 4
• Mounting Type: Plug-In
• Actuator: Rotary Lever Arm with Spring Return
• Maximum Travel: 90 Degrees
• Interrupt Rating: Standard Energy
• Enclosure Rating: NEMA 4, 13 Oiltight
• Certifications: UL Listed, CSA Certified
• Mode of Operation: CW and CCW
• Torque to Operate Contacts: 0.45 N-m (4 lb-in)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 802TATPD
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Temp Rating : -13–158 °F (-25–70 °C)
• Compatible Frames : TED

Product Data

• Weight : 1
• Temp Rating : -13–158 °F (-25–70 °C)
