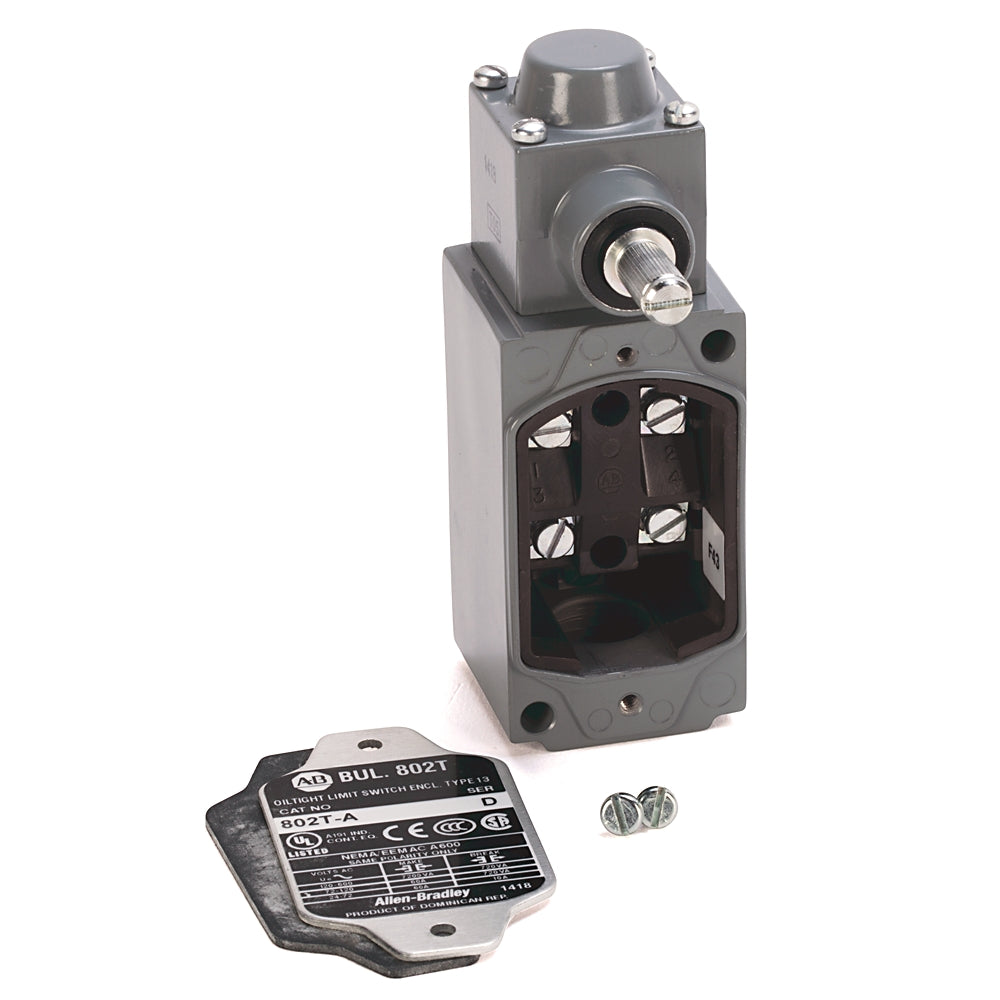

802T-A - Allen-Bradley 2-Circuit Rotary Lever Arm Limit Switch, 60A 125VAC, NEMA 4/13 Oiltight

802T-A

802T-A is a durable Allen-Bradley 2-circuit limit switch with rotary lever arm actuator designed for industrial automation applications.802T-A features a spring return lever type with standard operating torque, rated for 60 amps at 125 VAC and 30 amps at 230 VAC. It offers NEMA 4 and 13 oiltight enclosure ratings, suitable for harsh environments, with an operating temperature range from -18 to 110 degrees Celsius. The switch supports clockwise and counterclockwise operation and includes standard contacts with snap action for reliable performance.

Key Specifications
• Type: 2-Circuit Limit Switch
• Actuator: Rotary Lever Arm, Spring Return
• Amperage: 60A at 125 VAC, 30A at 230 VAC
• Enclosure Rating: NEMA 4, 13, IP67
• Operating Temperature: -18 to 110 °C
• Mounting: Standard NEMA Style
• Contact Action: Snap Acting
• Operating Direction: Clockwise and Counterclockwise
• Torque Rating: Approximately 0.29 to 0.34 Nm
• Certifications: UL Listed, CSA Certified, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 802T-A
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Automation
• Item Subcategory : Limit Switches
• Type : 802T
• Voltage : 600V
• Amperage : 10A
• Nema Rating : NEMA 13/4

Product Data

• UPC : 7.81181E+11
• GTIN : 7.81181E+11
• Weight : 0.7 lb
