Product Info
- Manufacturer:Thomas & Betts
- Sub-Category:Plugs Recep
Description
8013

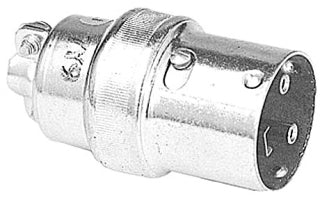

8013 is a Thomas & Betts Ever-Lok industrial grade plug rated for 20 amps and 125 volts with 2 poles and 3 wires, designed for durable and reliable power connections.8013 features a dust-proof standard design with automatic locking and positive grounding via phosphor bronze ground straps. It supports a frequency rating of 60 Hz, NEMA 3R/12 enclosure rating, and an IP44 dust and splash protection rating. The plug is constructed from plated steel and steel materials, suitable for industrial, lighting, welding, and machinery applications. It operates in temperatures from -40 to 203 degrees Fahrenheit and measures 1-3/4 inches in diameter by 3-1/8 inches in length.
- Key Specifications
- Amperage Rating: 20 A
- Voltage Rating: 125 VAC, 600 VAC/250 VDC
- Number of Poles: 2
- Number of Wires: 3
- Frequency Rating: 60 Hz
- Enclosure Rating: NEMA 3R/12, IP44
- Material: Plated Steel, Steel
- Temperature Rating: -40 to 203 °F
- Mounting Type: Plug, Ever-Lok locking connection
- Grounding: Positive grounding with phosphor bronze ground straps
- Dimensions: 1-3/4 in Dia x 3-1/8 in L
- Country of Origin: Mexico
Specifications
- Part Number: 8013
- Brand : Thomas & Betts
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 125 600 /250 DC
Product Data
- UPC : 708917208402
- Dimensions : 1-3/4 in Dia x 3-1/8 in L
- Weight : 2.02 lb
