Product Info
- Manufacturer:Allen-Bradley
Description
800T-XD1R

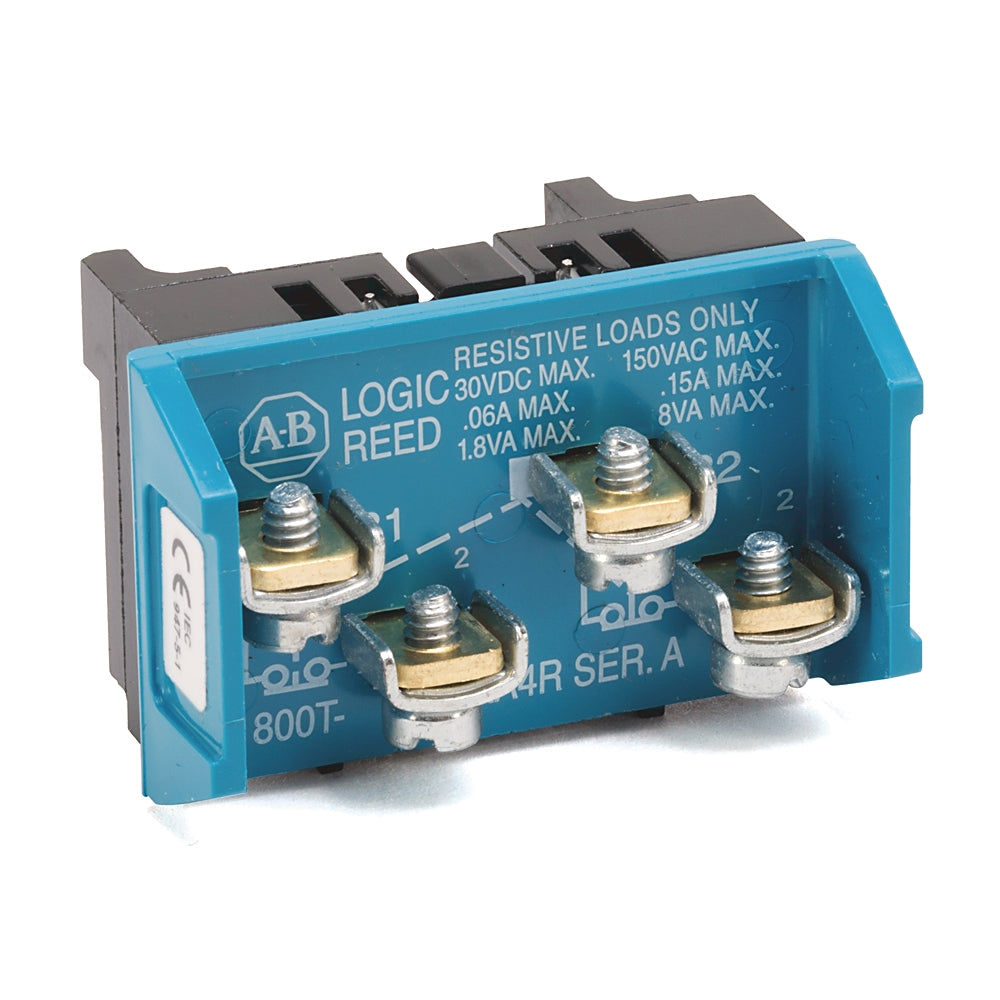

800T-XD1R is a 1 pole logic reed contact block designed for use with Allen-Bradley 800T series 30.5mm motor control units.
This contact block supports resistive loads only and features a normally open (1 NO) contact configuration. It operates at a maximum voltage of 150 VAC and 30-150 VDC with a maximum current range of 0.06 to 0.15 amps and power rating from 1.8 VA to 8 VA. The 800T-XD1R is certified to standards including CCC, CE, CSA, and CUL, ensuring compliance and reliability in motor control applications.
- Key Specifications
- Manufacturer: Allen-Bradley
- Part Number: 800T-XD1R
- Contact Configuration: 1 Normally Open (1 NO)
- Number of Poles: 1 Pole
- Contact Type: Logic Reed
- Mounting: 30mm (30.5mm) Bulletin 800T Series
- Voltage Rating: 30-150 VDC max, 150 VAC max
- Current Rating: 0.06 to 0.15 Amps max
- Power Rating: 1.8 VA to 8 VA max
- Certifications: CCC, CE, CSA, CUL
- Part Number: 800T-XD1R
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Contact Blocks
- Family : 800T
- Type : 800T
- Voltage : 30-150VDC
- Amperage : 0.06-0.15
- Aux Contacts : 1NO
- Nema Rating : 4, 13
- Compatible Frames : 800T Series 30.5mm Push Buttons
- UPC : 78118015098
- GTIN : 1.07812E+13
- Weight : 5.19
