800H-JR2B - Allen-Bradley 30mm 3-Position Maintained Selector Switch 2NO 2NC NEMA 4/4X/13

800H-JR2B

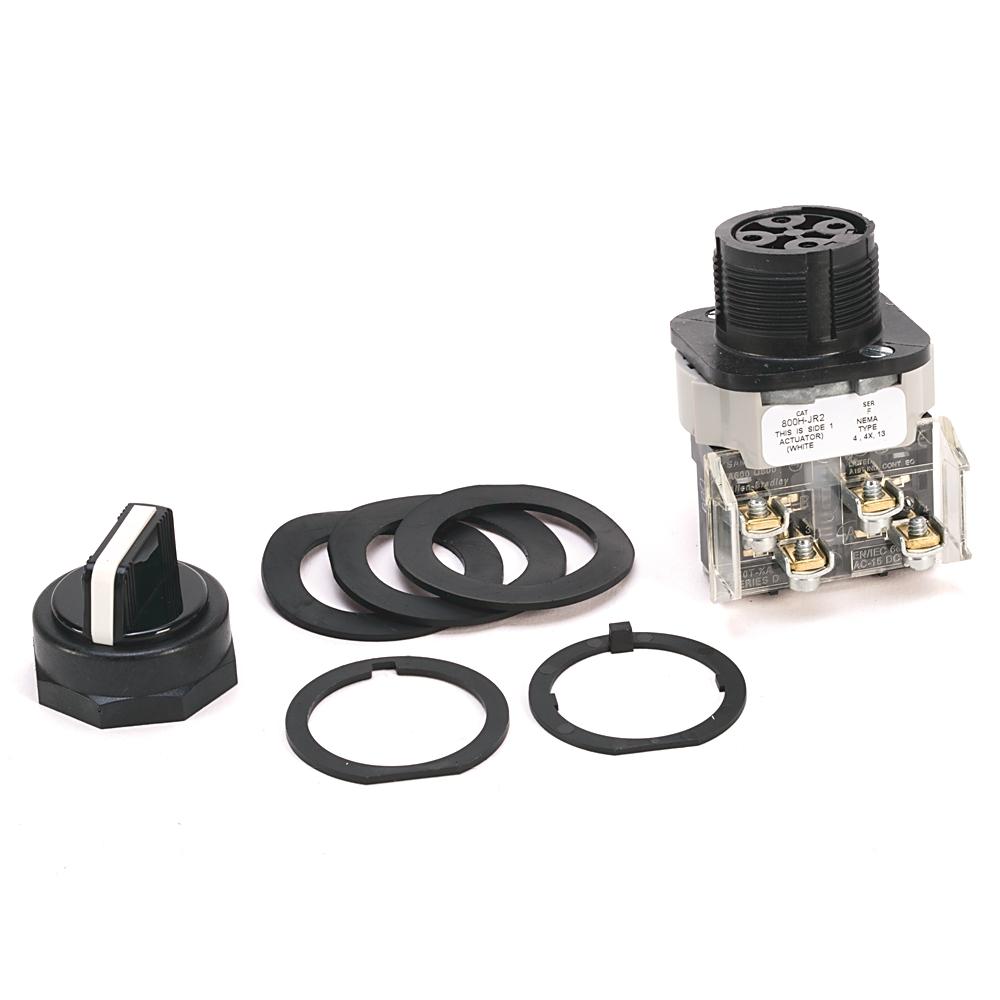

800H-JR2B is a 30mm 3-position maintained selector switch from Allen-Bradley designed for robust industrial applications.This selector switch features a standard white knob with a KB7 cam, providing reliable operation with 2 normally open (NO) and 2 normally closed (NC) standard contacts. It is factory assembled and suitable for use in harsh environments with NEMA 4, 4X, and 13 enclosure compatibility. The switch uses screw connections and supports wire ranges from 14 to 18 AWG. It has a mechanical design life of 1,000,000 cycles and a contact block thermal current rating of 10 A. The operator function is maintained, and the device is non-illuminated.

Key Specifications
• Type: 30 mm Selector Switch
• Number of Positions: 3
• Operator Function: Maintained
• Contact Configuration: 2 Normally Open (NO), 2 Normally Closed (NC)
• Knob Color: White
• Cam Type: KB7 Standard
• Mounting Hole Diameter: 30.5 mm
• Enclosure Compatibility: NEMA 1, 4, 4X, 12, 13
• Contact Block Thermal Current Rating: 10 A
• Electrical Connection: Screw connection
• Mechanical Design Life: 1,000,000 cycles
• Wire Range: 14-18 AWG
• Certifications: C-TICK, CCC, CE, CSA, CUL, KC, MARINE, UL
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 800H-JR2B
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Automation
• Item Subcategory : Automation Switch
• Family : 800H



Product Data

• UPC : 662073628378
• GTIN : 00662073628378
• Weight : 20 lb
