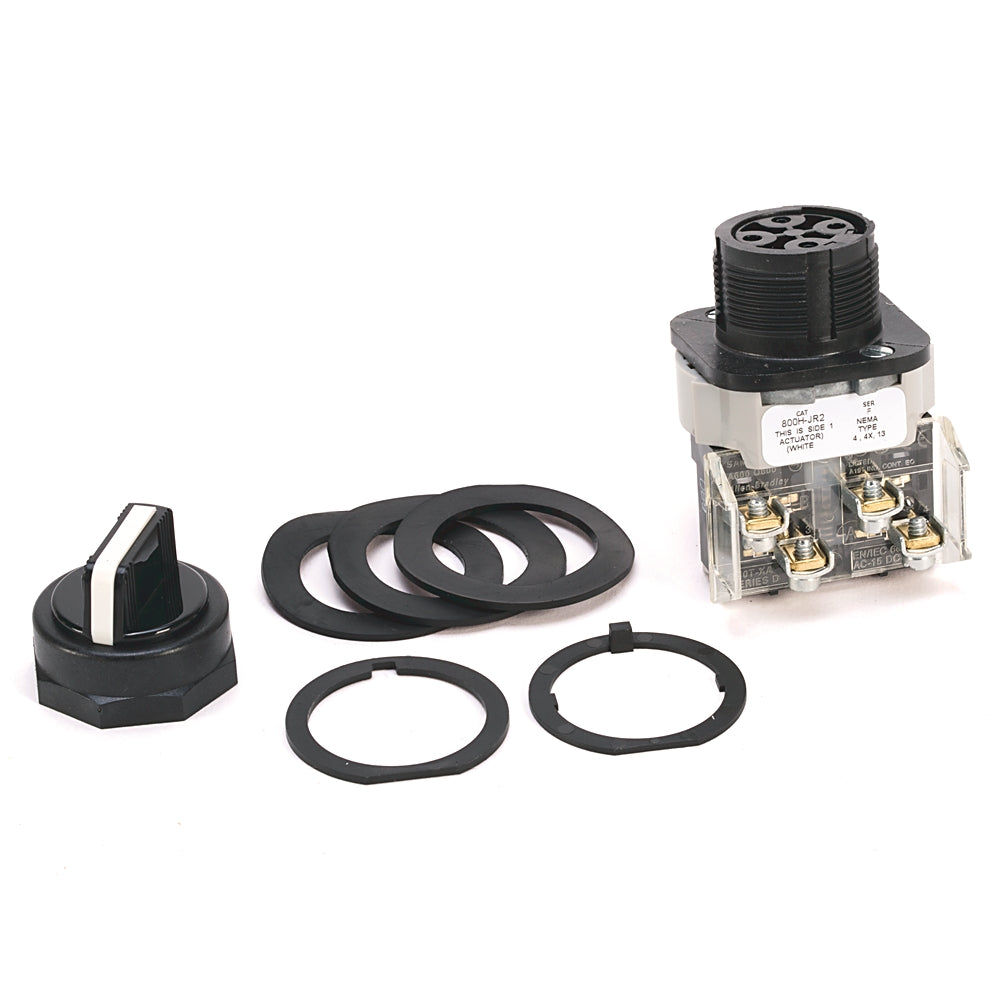

800H-JR2A - Allen-Bradley 30.5mm 3-Position Maintained Selector Switch, 1NO 1NC, NEMA 4/4X/13

800H-JR2A

800H-JR2A is a 30.5 mm 3-position maintained selector switch with a standard white knob, designed for industrial automation applications.This selector switch features a riveted construction for enhanced durability and tamper resistance, suitable for demanding environments. It includes 1 normally open (NO) and 1 normally closed (NC) contact blocks with screw connections, rated for 10 A thermal current. The operator function is maintained with a mechanical life of 1,000,000 cycles. It is compatible with NEMA 1, 4, 4X, 12, and 13 enclosures and meets UL 508, CSA C22.2 No. 14, EN 60947-5-1, EN 60947-5-5, ISO 13850, CE, CSA, UL, and CCC certifications.

Key Specifications
• Operator Type: Selector switch
• Number of Positions: 3
• Contact Configuration: 1 NO, 1 NC
• Operator Function: Maintained
• Hole Diameter: 30.5 mm
• Contact Block Thermal Current Rating: 10 A
• Electrical Design Life: 1,000,000 cycles
• Enclosure Compatibility: NEMA 1, 4, 4X, 12, 13
• Material: Glass-Filled Nylon (Operator), Polyamide 6 (Bezel)
• Mechanical Service Life: 1,000,000 cycles
• Operating Temperature Range: -40 °C to 55 °C
• Certifications: UL 508, CSA C22.2 No. 14, EN 60947-5-1, EN 60947-5-5, ISO 13850, CE, CSA, UL, CCC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 800H-JR2A
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Automation
• Item Subcategory : Automation Switch
• Family : 800H



Product Data

• UPC : 662073628361
• GTIN : 10662073628368
• Weight : 20 lb
