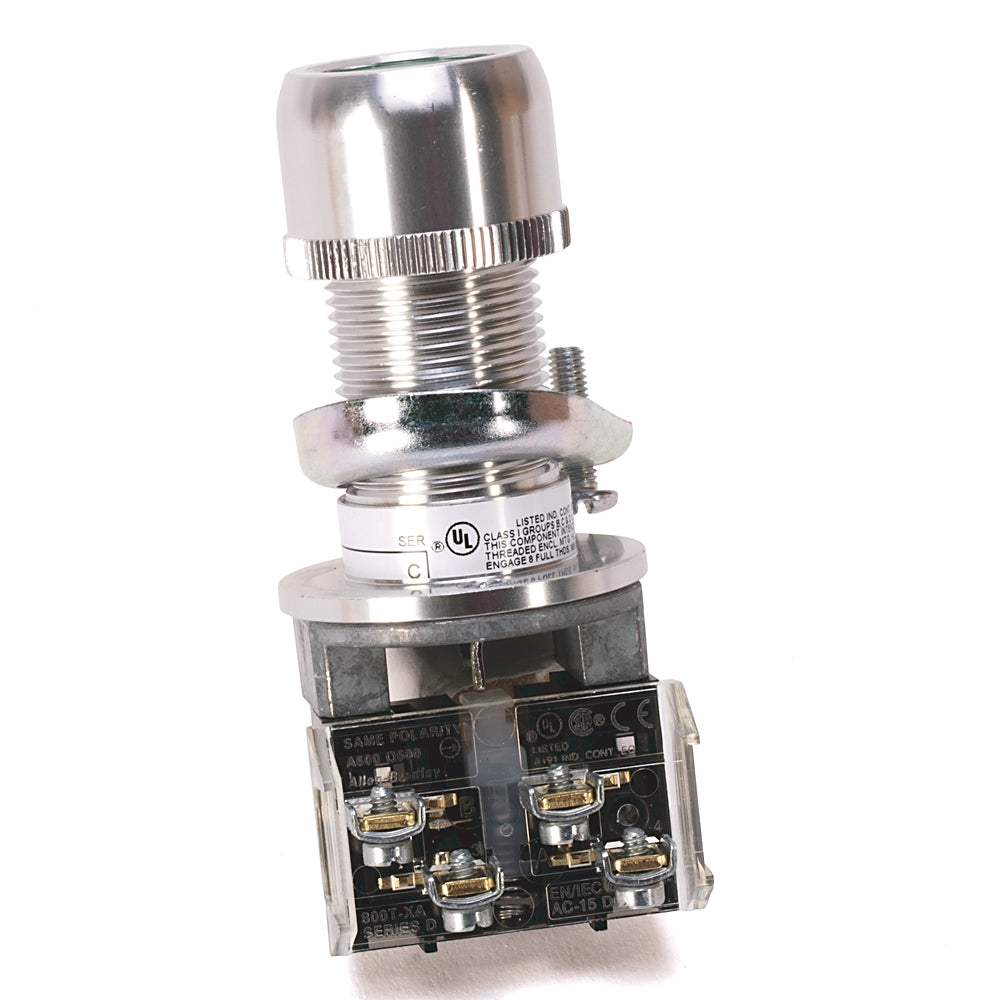

800H-AP1A - Allen-Bradley Type 7&9 Flush Head Push Button, 10A AC/2.5A DC, 1 NO/1 NC, 600V AC/DC, Standard Contact Block, Green

800H-AP1A

800H-AP1A is an Allen-Bradley Type 7&9 flush head push button with a green actuator and standard contact block, designed for reliable motor control applications.

This push button features a plastic front ring, snap-action contact operation, and is rated for high electrical endurance. It is not suitable for illumination and offers robust performance in industrial environments. The device is easy to install with its standard mounting and comes with finger-safe terminals.

Key Specifications
• Part Number: 800H-AP1A
• Manufacturer: Allen-Bradley
• Category: Motor Control / Pilot Devices
• Amperage: 10 A AC, 2.5 A DC max (thermal continuous current)
• Voltage: 600V AC, 600V DC max (operational)
• Poles: 1 NO, 1 NC (standard contact block)
• Mounting Type: Flush head, standard barrel
• Interrupt Rating: 69VA @ 28...600V DC, 720VA @ 72...120V AC (break), 7200VA @ 120...600V AC (make)
• Series/Frame: Type 7&9, 800H Push Button
• Trip Unit: Not applicable (standard push button)
• Certifications: CCC (China Compulsory Certification)
• Operator Type: Flush head, green
• Contact Operation: Snap action (standard contact block)
• Electrical Life: 1,000,000 cycles at max load

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 800H-AP1A
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Pushbuttons
• Compatible Frames : TJK

Product Data

• UPC : 662073405863
• Weight : 0.4
