7PV15381AW30 - Siemens Timing Relay Electronic OFF Delay 1 Change-Over Contact 12-240V AC/DC 3A Screw Terminal

7PV15381AW30

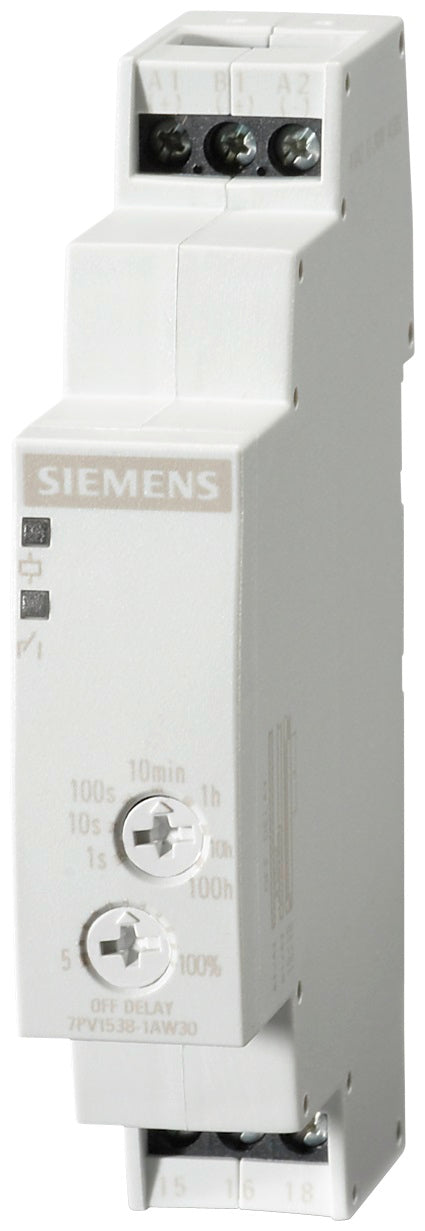

7PV15381AW30 is a Siemens electronic timing relay with an OFF delay function and 1 change-over contact.

This timing relay features a control signal OFF delay, operates on a supply voltage range of 12 to 240 V AC/DC, and supports a contact rating of 3 A at 250 V AC. It includes 7 selectable time ranges from 0.05 seconds up to 100 hours and uses screw terminal connections for wiring. The relay is equipped with an LED indicator for operational status and is designed for reliable switching with a mechanical service life of up to 10 million cycles.

Key Specifications
• Type: Timing relay, electronic OFF delay with control signal
• Contact Form: 1 change-over (1CO)
• Supply Voltage: 12 to 240 V AC/DC
• Contact Rating: 3 A at 250 V AC
• Timing Ranges: 7 ranges from 0.05 s to 100 h
• Connection Type: Screw terminal
• LED indicator for status
• Mechanical Service Life: 10,000,000 operating cycles
• Dimensions: Approx. 66.7 mm depth, 17.5 mm width, 90 mm height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 7PV15381AW30
• Brand : Siemens

Product Data

• UPC : 4089255273
• GTIN : 00040892552737
• Weight : 0.11
