Product Info
- Manufacturer:Siemens
Description
7PV15181AW30

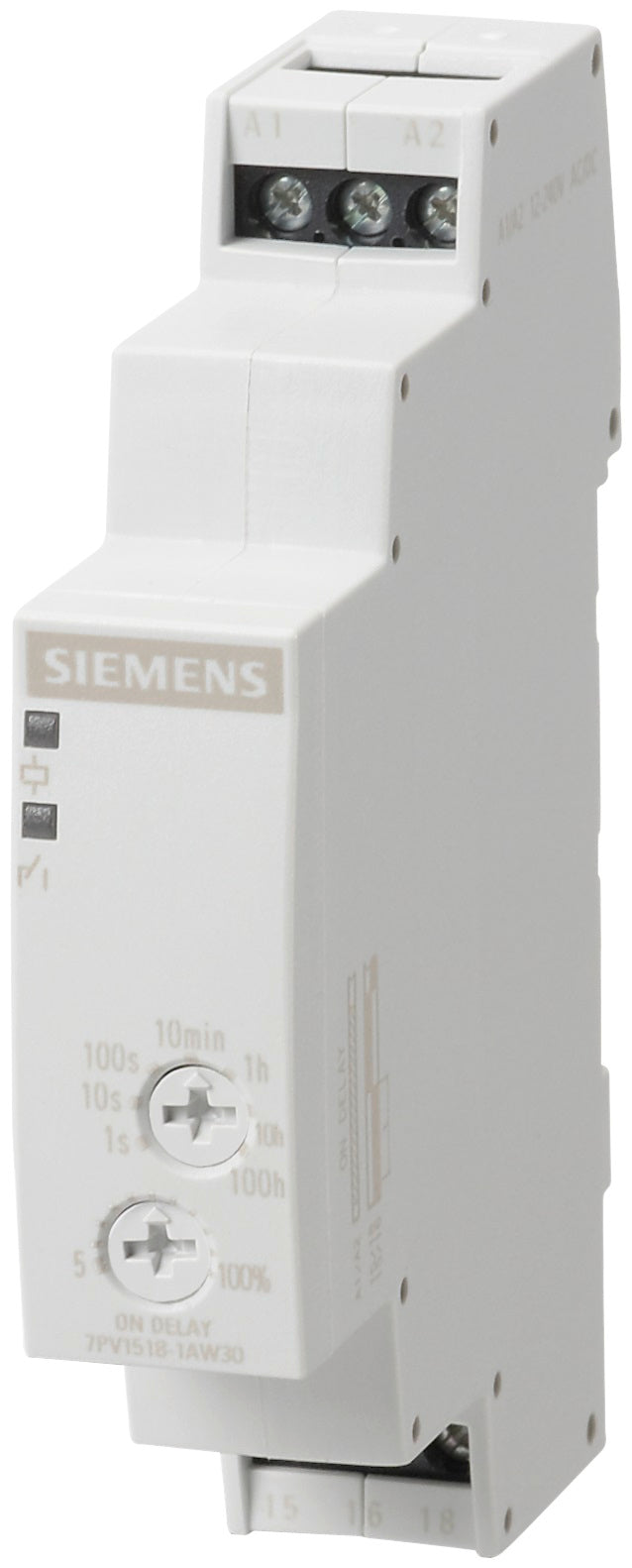

7PV15181AW30 is a Siemens electronic timing relay designed for on-delay operation with a wide voltage range and compact DIN rail mounting.
This timing relay features a single change-over contact (1CO) rated at 3 amperes and supports a supply voltage from 12 to 240 volts AC/DC. It offers seven selectable time ranges from 0.05 seconds up to 100 hours, making it suitable for diverse timing applications. The device uses screw terminal connections and is housed in an IP20 enclosure. Its mounting type is DIN rail with snap-on/threaded options, and it complies with certifications including UL, CE, CCC, EAC, RoHS, and REACH.
- Amperage Rating: 3A
- Supply Voltage: 12 to 240 V AC/DC
- Contact Form: 1CO (1 Form C, SPDT)
- Operation Mode: On-Delay
- Time Setting Range: 0.05 seconds to 100 hours
- Mounting Type: DIN Rail, Snap-On/Threaded
- Electrical Connections: Screw Terminal
- Enclosure Type: IP20
- Series: 7PV15
- Certifications: UL Listed, CE Certified, CCC Certified, EAC Approved, RoHS Compliant, REACH Article 33
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 7PV15181AW30
- Brand : Siemens
Product Data
- UPC : 4089255272
- GTIN : 00040892552720
- Weight : 0.11
