750SV46F

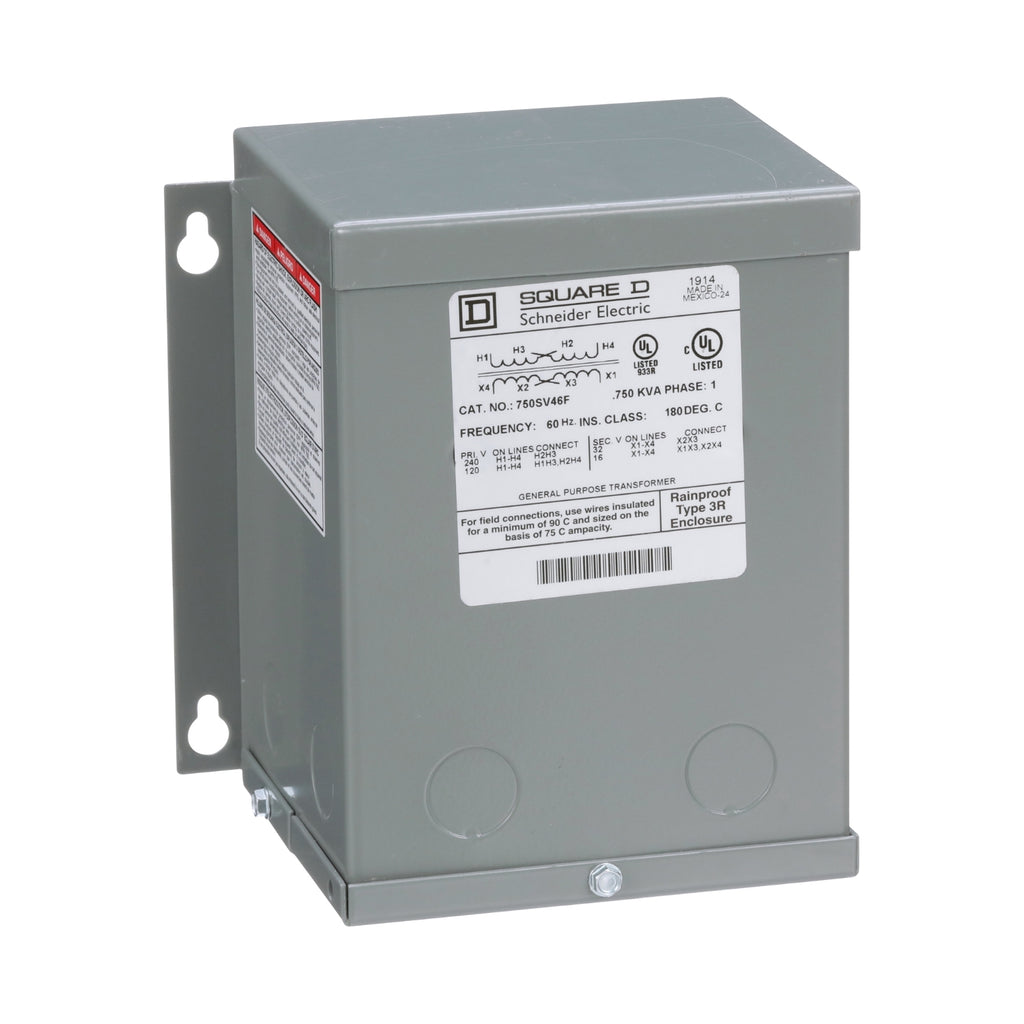

750SV46F is a Square D buck boost transformer designed for voltage adjustment applications with a 0.75 kVA power rating.
This dry-type transformer features a 120/240 VAC primary voltage and a 16/32 VAC secondary voltage, operating at 60 Hz frequency and single-phase power. It is housed in a NEMA 3R rated steel enclosure suitable for indoor or outdoor use, with a temperature rise rating of 115 degrees Celsius and insulation rated at 180 degrees Celsius. The unit is wall-mountable and constructed to carry full load as stated on the nameplate, with the ability to handle loads exceeding the nameplate rating.
- Key Specifications
- Power Rating: 0.75 kVA
- Primary Voltage: 120/240 VAC
- Secondary Voltage: 16/32 VAC
- Phase: 1 (Single-phase)
- Frequency: 60 Hz
- Enclosure Type: NEMA 3R (IP54)
- Mounting Type: Wall Mount
- Insulation Temperature Rating: 180°C
- Temperature Rise: 115°C
- Housing Material: Steel
- Part Number: 750SV46F
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Distribution Equipment
- Item Subcategory : Buck Boost
- UPC : 785901019947
- GTIN : 00785901019947
- Country of Origin : Mexico
- Dimensions : 6.69 in H x 6.19 in W x 4.69 in D
- Weight : 17.35
- Certification : CSA, cULus, RoHS Compliant, UL and cUL Listed (UL 506)
