Product Info
- Manufacturer:Eaton
- Sub-Category:High Voltage Fuse
Description
72DBA1-5E

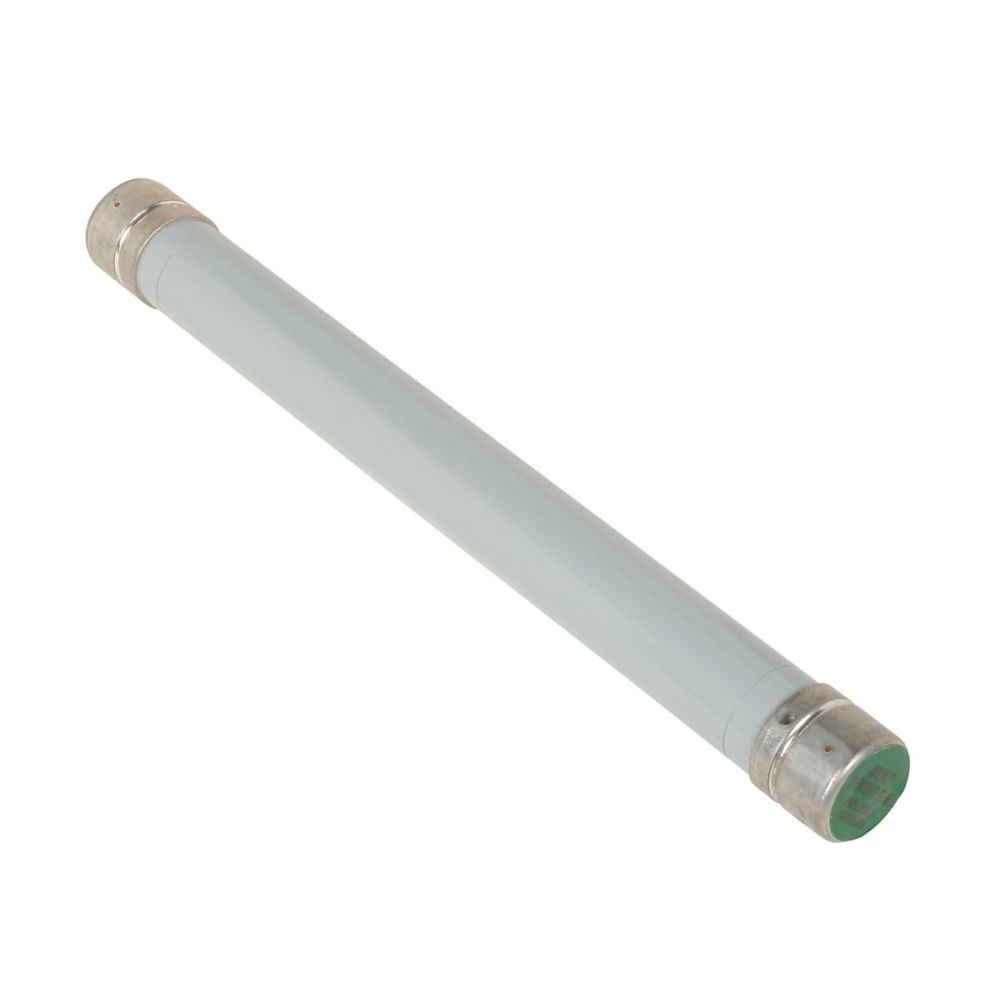

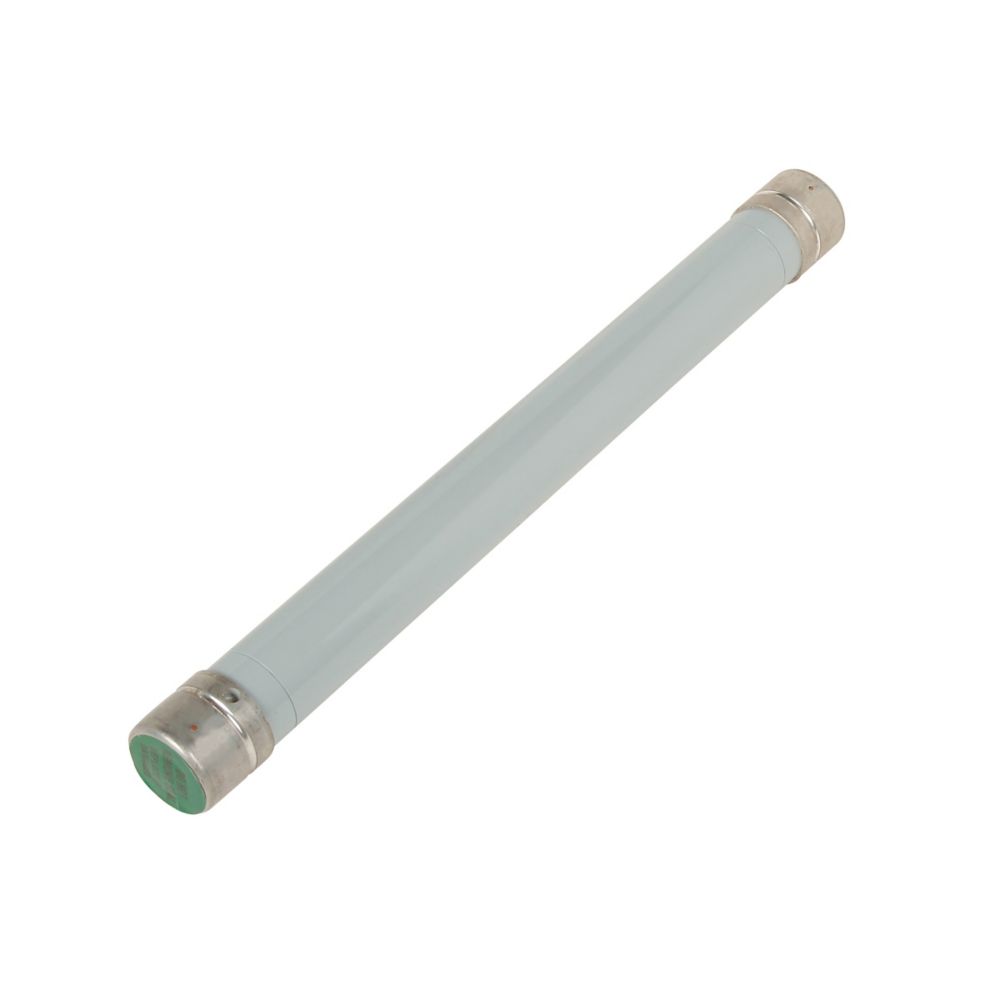

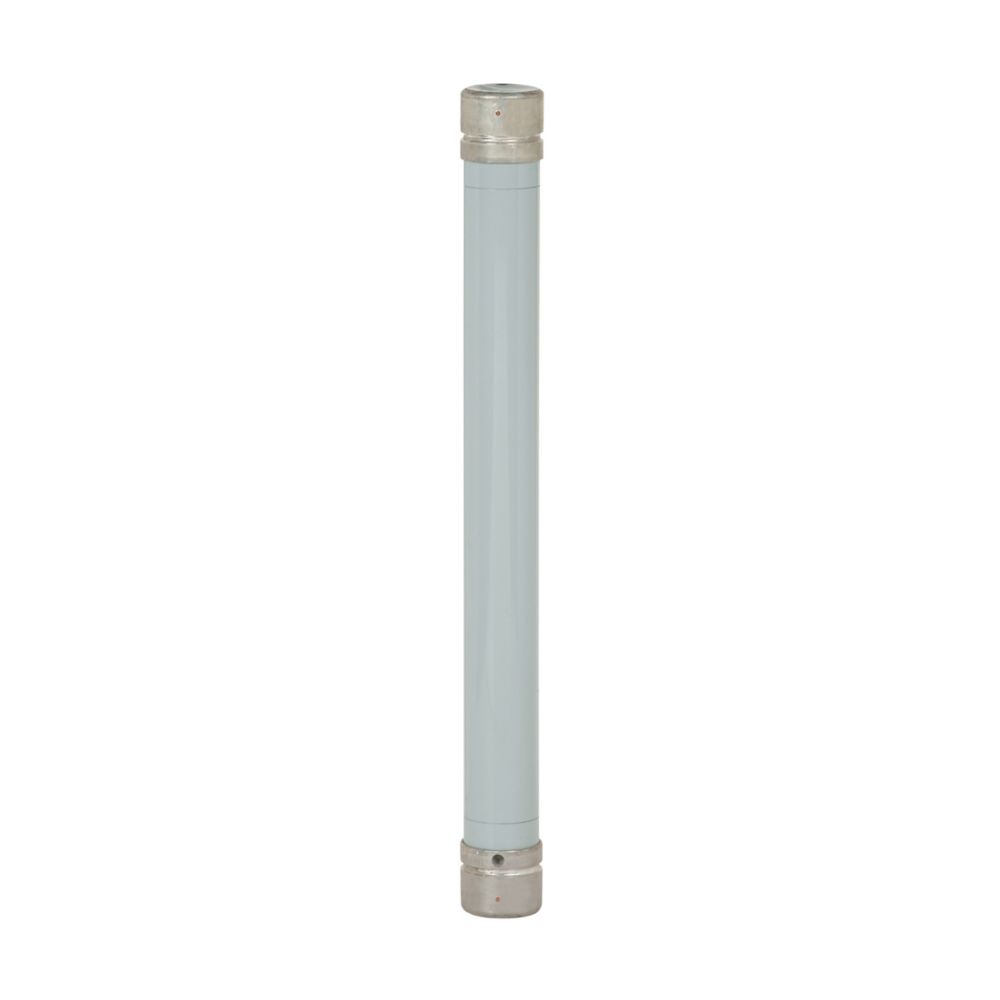

72DBA1-5E is an Eaton DBA-class expulsion fuse designed for high-voltage power distribution applications with a continuous current rating of 5E amperes. This Type DBA1 expulsion fuse delivers reliable fault protection in utility and industrial systems requiring maximum voltage ratings up to 69 kV nominal and 72.5 kV maximum. The fuse features a ferrule connection and is engineered to meet ANSI C37.42 and C37.46 standards for consistent performance and safety. Key Specifications
- Part Number: 72DBA1-5E
- Manufacturer: Eaton
- Fuse Class: DBA
- Type: DBA1
- Amperage Rating: 5E
- Nominal Voltage: 69 kV
- Maximum Voltage: 72.5 kV
- Connection Type: Ferrule
- Standards: ANSI C37.42, ANSI C37.46
Specifications
- Part Number: 72DBA1-5E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : High Voltage Fuse
- Family : DBA
- Type : DBA1
- Voltage : 69000
- Amperage : 5
- AIC rating : 10kA@72kV
- Connection : Ferrule
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 078667000507
- GTIN : 00786670005070
- Country of Origin : Dominican Republic
- Dimensions : 43.88 in x 1.7 in x 1.7 in (Length/Depth x Height x Width)
- Weight : 7
- Certification : IEEE Std. C37.41
