Product Info
- Manufacturer:Eaton
- Sub-Category:High Voltage Fuse
Description
72DBA1-125E

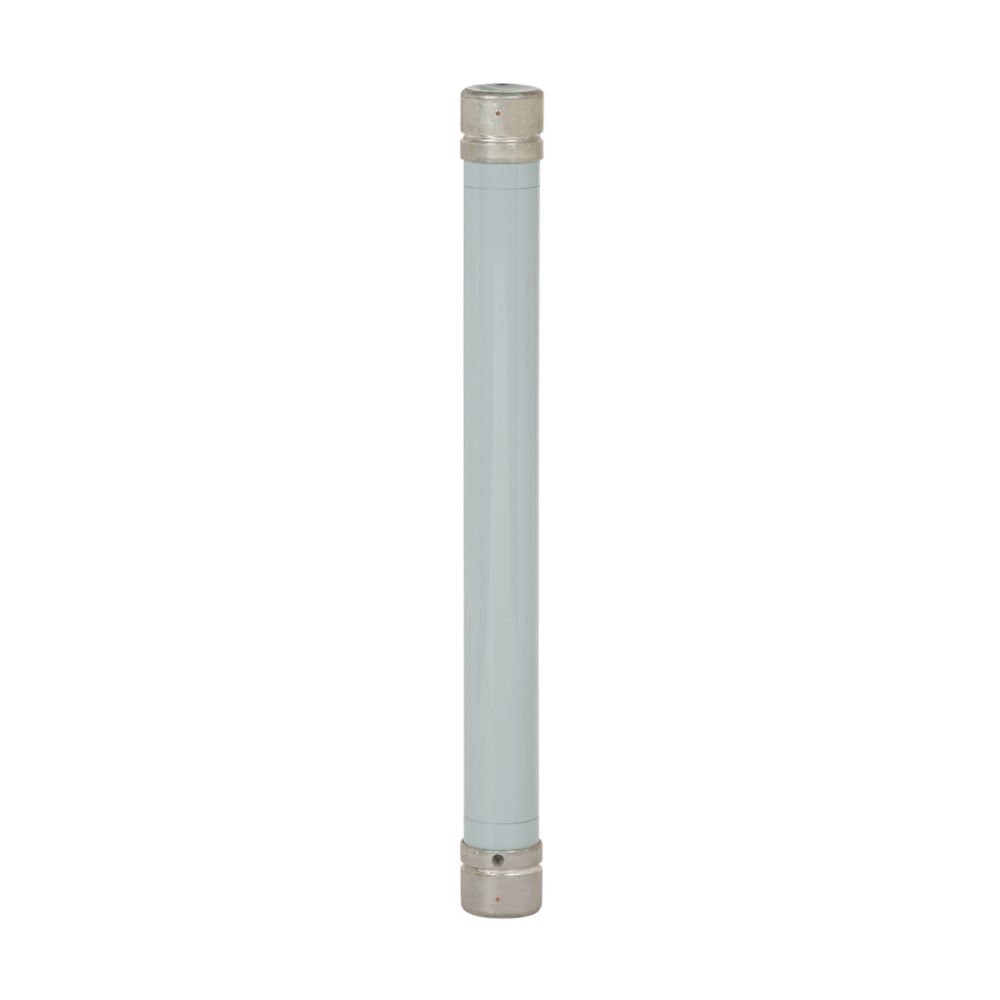

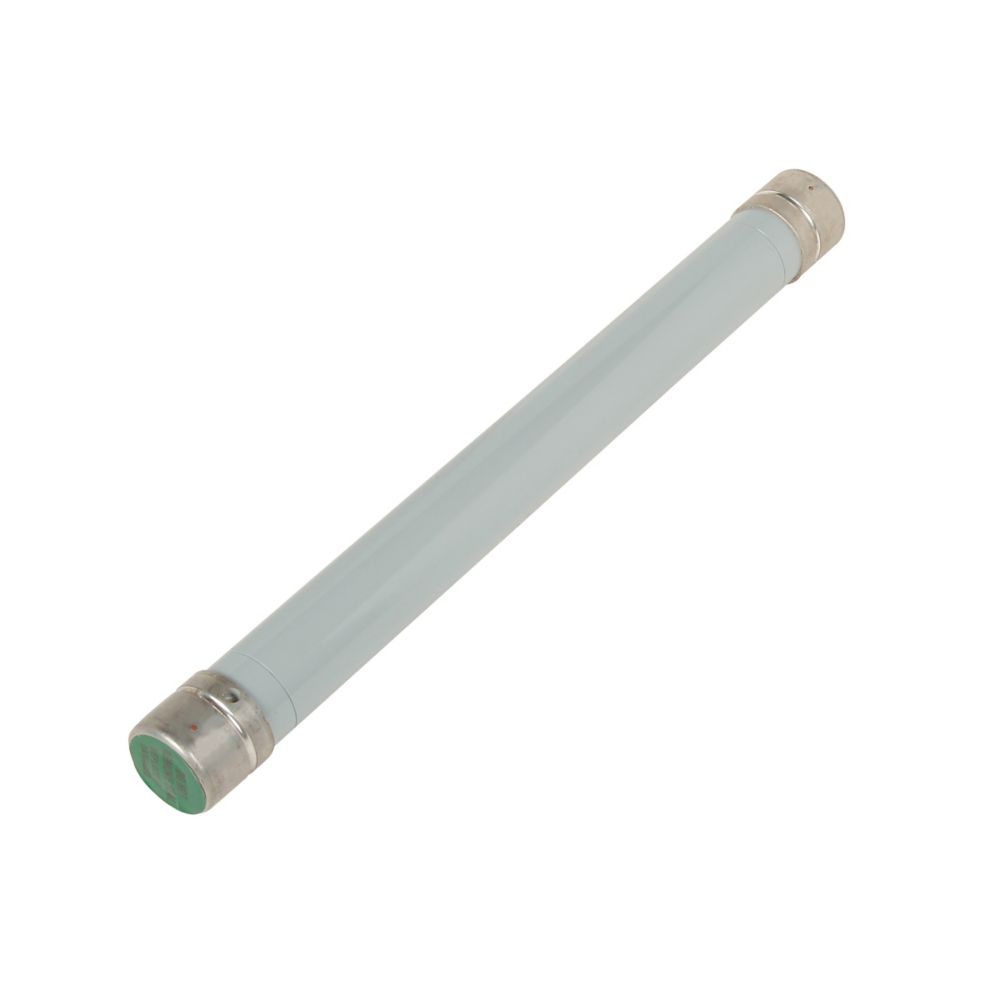

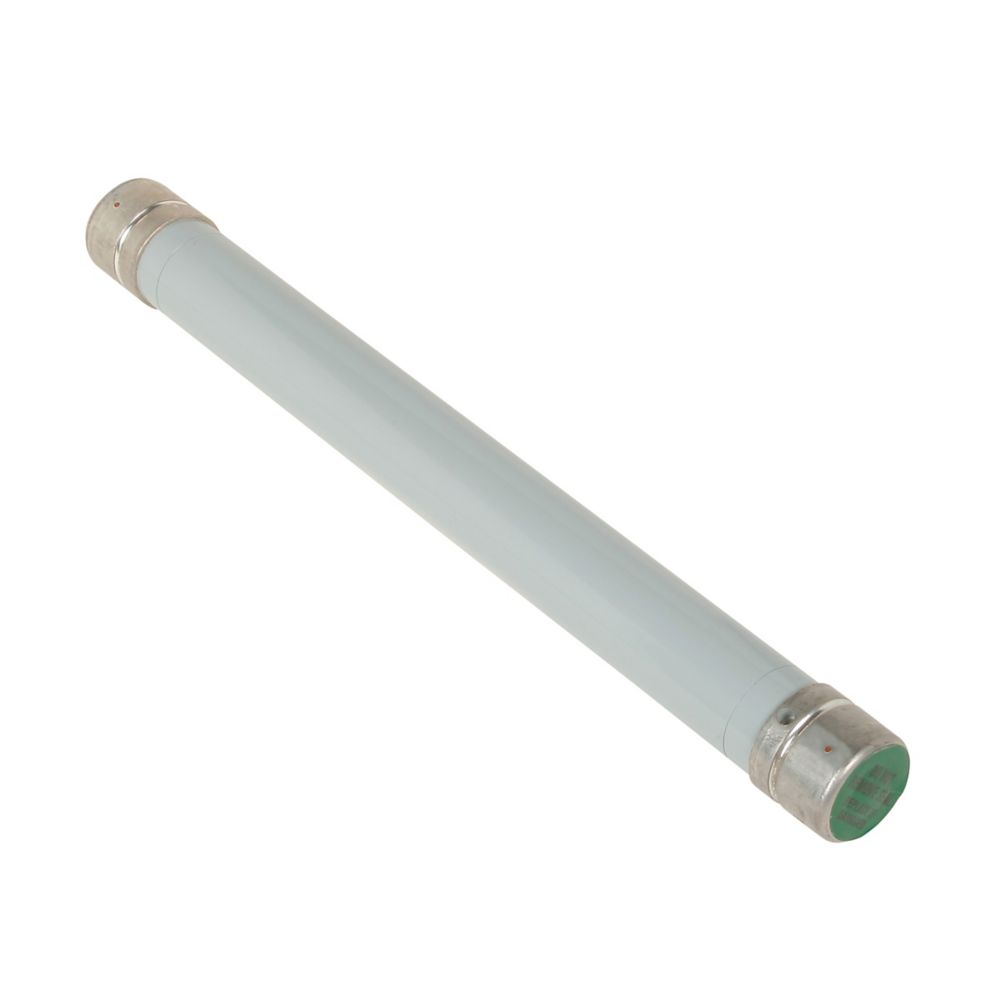

72DBA1-125E is an Eaton Class E expulsion fuse refill unit designed for high voltage applications. This fuse is part of the DBA series and is engineered for reliable protection in power distribution systems. The Eaton 72DBA1-125E expulsion fuse refill is rated for 125 amperes and 69 kV nominal voltage, with a maximum voltage rating of 72 kV. It is a Class E fuse, suitable for use in high voltage environments where dependable overcurrent protection is required.
- Part Number: 72DBA1-125E
- Manufacturer: Eaton
- Amperage Rating: 125A
- Nominal Voltage: 69 kV
- Maximum Voltage: 72 kV
- Fuse Class: Class E
- Type: Expulsion Fuse Refill
- Series: DBA
- Mounting: Not available for BA mountings
- Interrupt Rating: 2.5 kAIC
- Height: 2 1/4 inches
- Length: 32 inches
Specifications
- Part Number: 72DBA1-125E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : High Voltage Fuse
- Family : DBA
- Type : DBA1
- Voltage : 69000
- Amperage : 125
- AIC rating : 10kA@72kV
- Connection : Ferrule
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 78667000514
- GTIN : 00786670005148
- Country of Origin : Dominican Republic
- Dimensions : 43.88 in x 1.7 in x 1.7 in (Length/Depth x Height x Width)
- Weight : 7
- Certification : IEEE Std. C37.41
